• User selection: Every time the EXPLORER 710 starts up you must select which network
you want to use. You cannot access any network until you have made the selection.
Internet and LAN connection modes
In the web interface you can set up the Internet connection mode and the IP addressing
between the EXPLORER 710 and devices connected to the EXPLORER 710. The EXPLORER 710
has a built-in DHCP server which can be used to dynamically assign IP addresses to devices
connected to the EXPLORER 710.

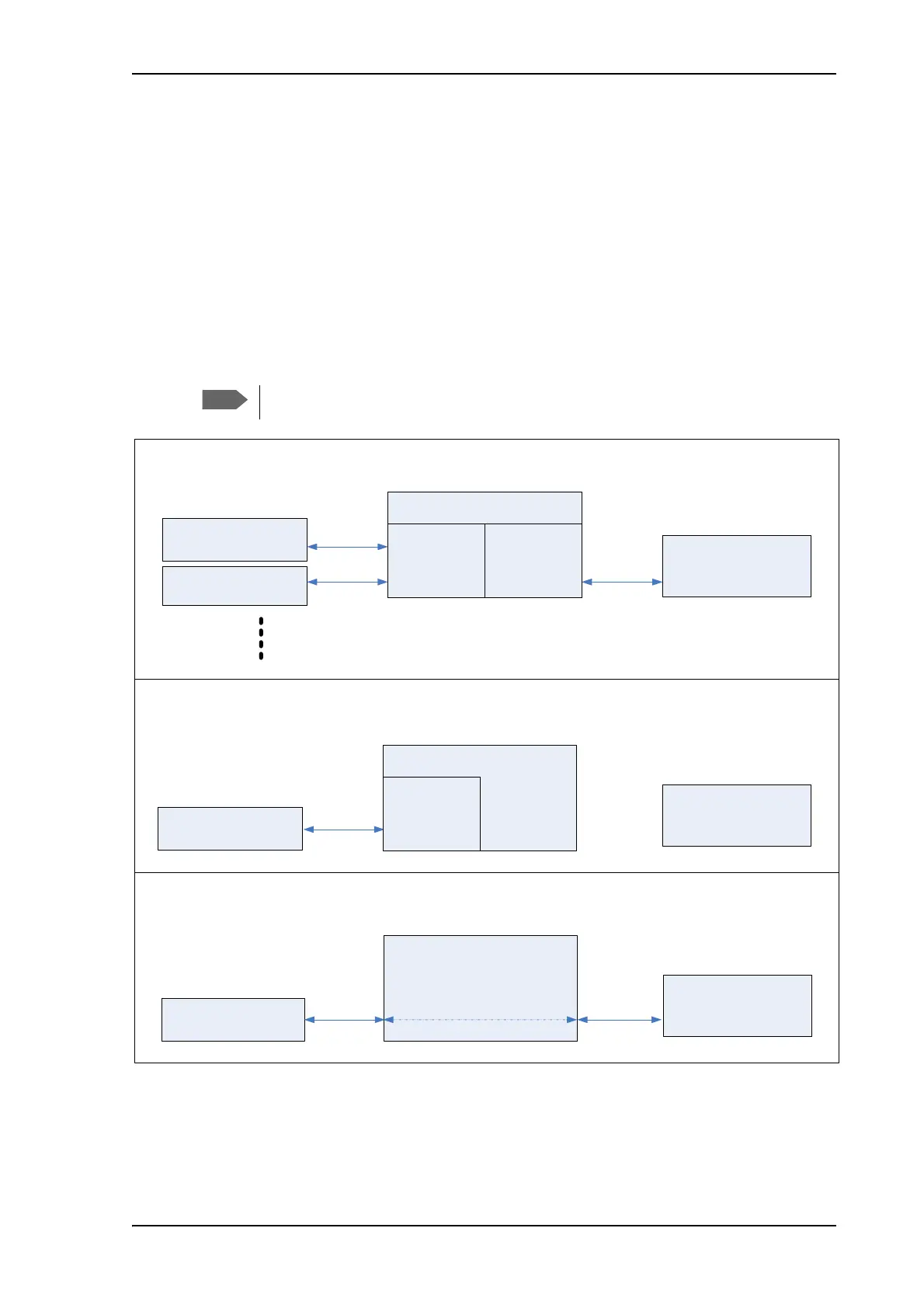

The drawing below shows examples of the IP addressing in router mode (default setup) and
Bridge mode.
Bridge mode is not supported for connections to cellular network.
Router mode
(Default setup, example)
Terminal
Device 1
Device 2
192.168.0.1
192.168.0.1
192.168.0.n
(assi g ne d b y th e
terminal via DHCP)
192.168.0.m
(assi g ne d b y th e
terminal via DHCP)
BGAN network
(DHCP server)
161.30.181.130
(assig ne d b y th e B GAN
ne tw ork via DHCP)
Bridge mode with active connection to the BGAN network
(Example)
Device 1
Terminal
161.30.181.130
(assig ne d b y th e B GAN
ne tw ork via DHCP)
161.30.181.n
NATDHCP
BGAN network
(DHCP server)
161.30.181.n
Bridge mode, no connection to the BGAN network
(Example)
Terminal
BGAN network
(DHCP server)
161.30.181.n
Device 1
192.168.0.1
(Local IP address)
DHCP
192.168.0.n
(assig ne d b y th e
terminal via DHCP)
192.168.0.1
(Local IP address)
