2.3.3 Wall Mount Installation
IMPORTANT!!
• The repeater mounting procedure is for concrete or brick walls only.
• The weight of the unit requires that two people mount the unit on the wall.
• The signal booster must always be installed vertically with the connectors on the
underside for protection.
Horizontal installation on a bench for long time may cause
damage to the signal booster due to over-heating.
2.3.3.1 Wall Mount Bracket Assembly
NOTE: In addition to the mounting brackets, it is recommended to use additional fixings as described in section
2.3.3.4.
To assemble the brackets
Assemble the brackets to the Repeater using the supplied 4 x M8 bolts and Spring Washers as shown
in the following figure.

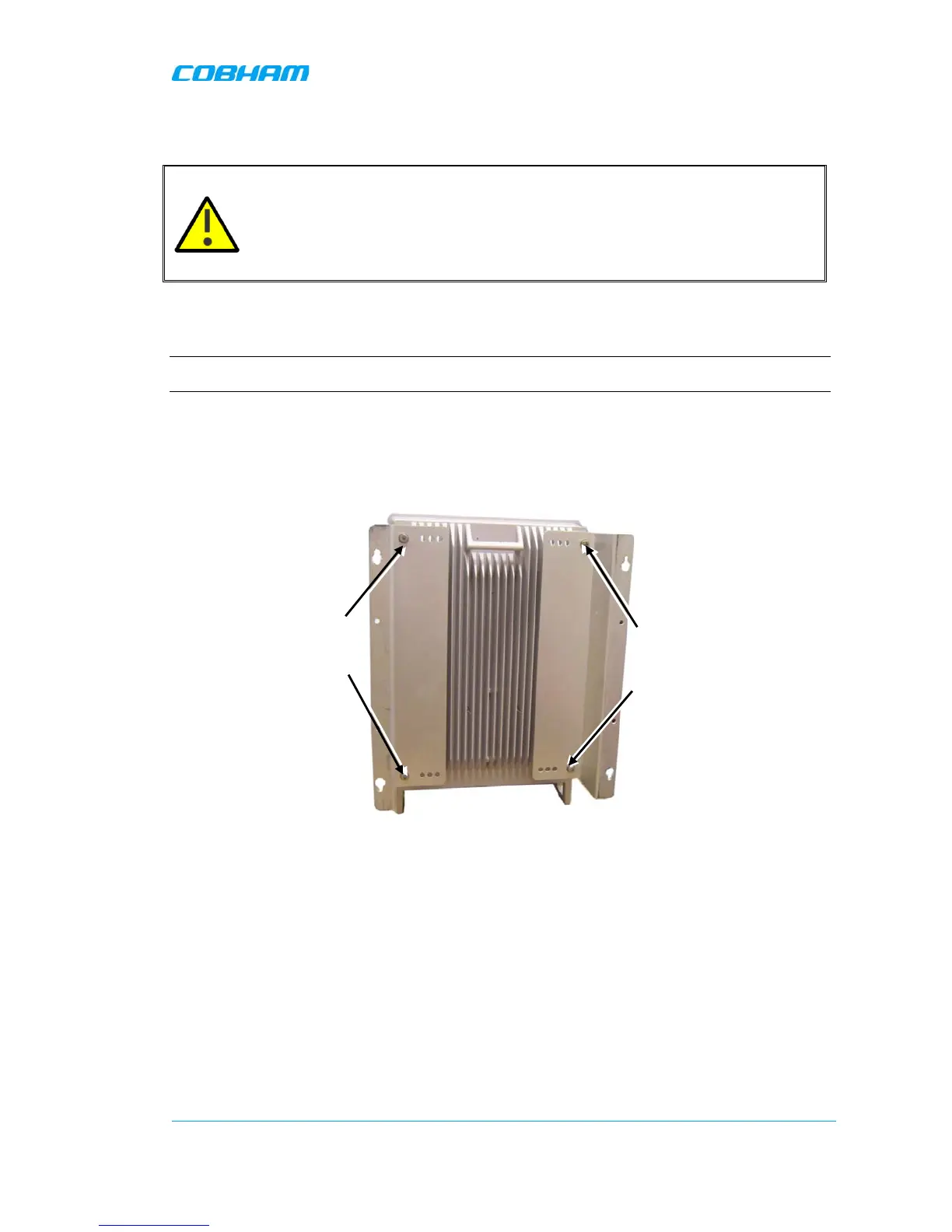

Figure 2-6. Position of Brackets for Wall mount
X4 M8 bolts
