COBHAM MBF-40 User Manual

MBF-40 SMR700/SMR800 PS REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
www.cobham.com/wireless Date: 28-Jan-16 Cobham Wireless – Coverage
Page | 58
Rev. 2.1 Doc. No. 00046UM

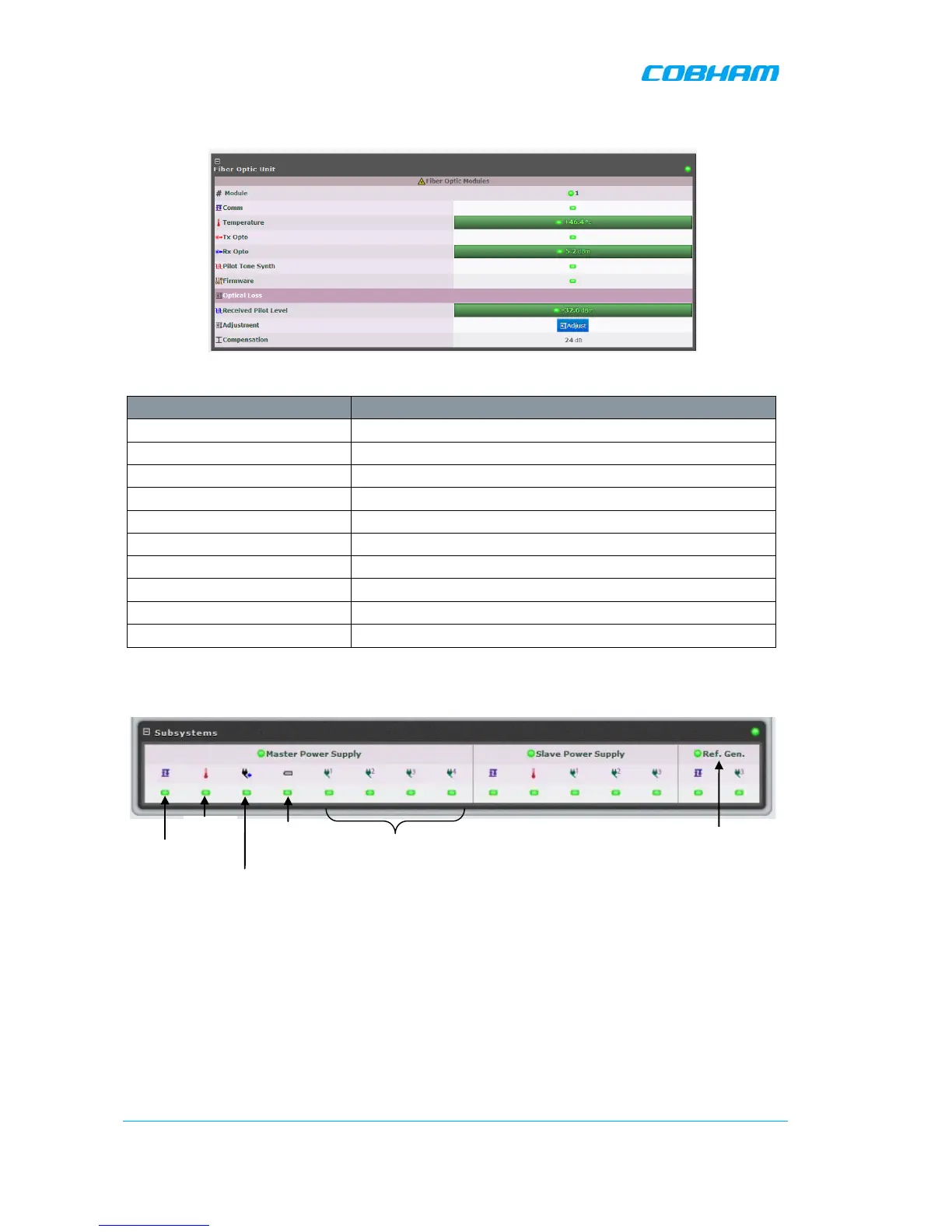

5.1.3 Detailed view of Fiber Optic Unit
Figure 5-4: MBF-40 F/O Status
Indicator Description
#Module Overall optic module status
Comm Optic connection status
Temperature Temperature level and status indicator
Tx Opto DL optic signal status
Rx Opto UL optic signal strength and status
Pilot Tone Synth Pilot tone synthesizer status
Firmware Firmware related error
Received Pilot Level Pilot tone level received in optic module
Adjustment Perform UL OLA (on repeater side)
Compensation Compensation performed on the optic link
5.1.4 Subsystems
Comm.
Temp
Pwr.
Input
Batt.
Status
Pwr.
Modules
Status
Reference
Generator
