4. Route the optic cable(s) via the optic hose
fitter on the front panel.

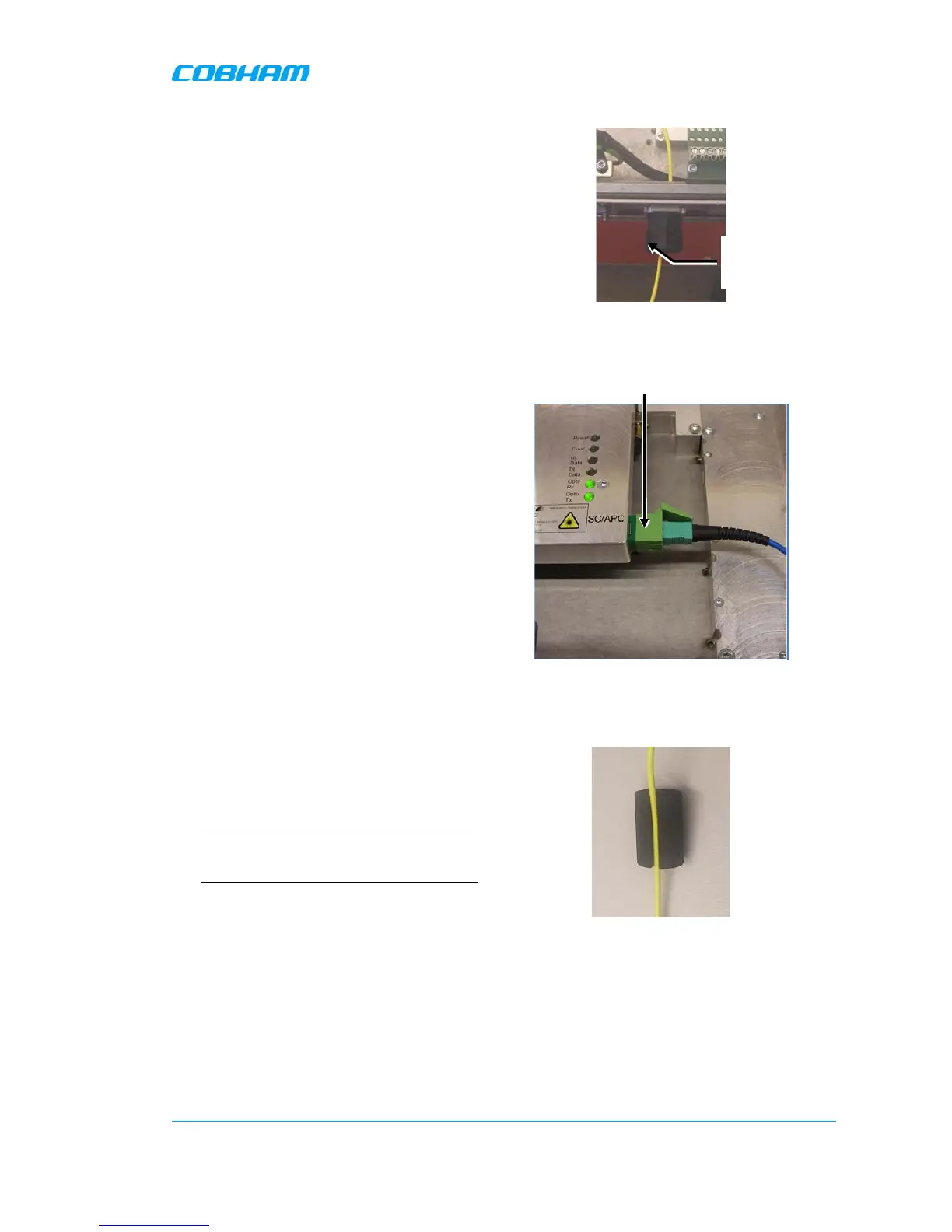

Figure
2-18: Route Optic Fibre via the Fibre Input
5. Connect the Fibre(s) to the Fibre Optic
Converter inside the repeater.
Make sure the Fibre is not bent too
sharply inside the repeater as to avoid
communication disruptions.
Figure
2-19: F/O Connection
6. Place the Fibre in the rubber seal.
NOTE: The sleeve (not supplied), together
with the rubber seal, meets the protection
standard IP65/NEMA4.
Figure
2-20: Run Fibre in the Rubber Seal
