COBHAM SAILOR 6000 User Manual

Chapter 2: Installation
2-8
98-131571-B

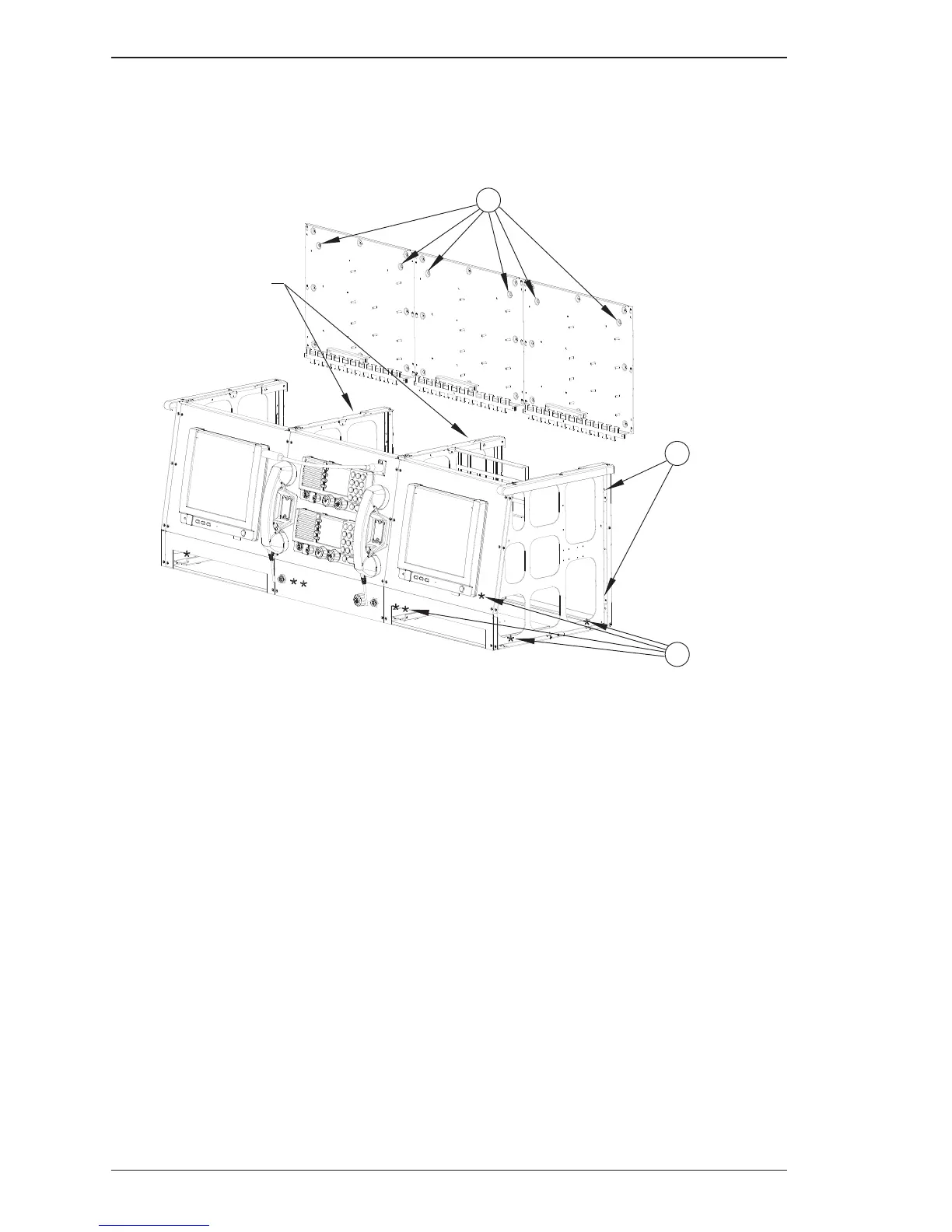

Mountingtheconsoleontothebulkhead
 7 Fastentheconsoletothebulkhead,
with 2 screws per section.
 8 Loosenkey-holescrewsandliftupthefrontpart.
9 At this point connection board wiring may be done
while having free access to the connection boards.
 10 Fitthefrontpartbackontothekey-holescrews.
 11 Fastenkey-holescrews.
12 Fasten the console to the table, with four screws per section
13 Reinstall the plate, removed in step 3.
 14 Reinstalltheedge-prole,removedinstep2.
7
8
12
Lift here
