COBHAM Satcom SAILOR XTR GX-R2 User Manual

SAILOR XTR GX-R2 system
98-175666-D Chapter 1: Introduction 1-5

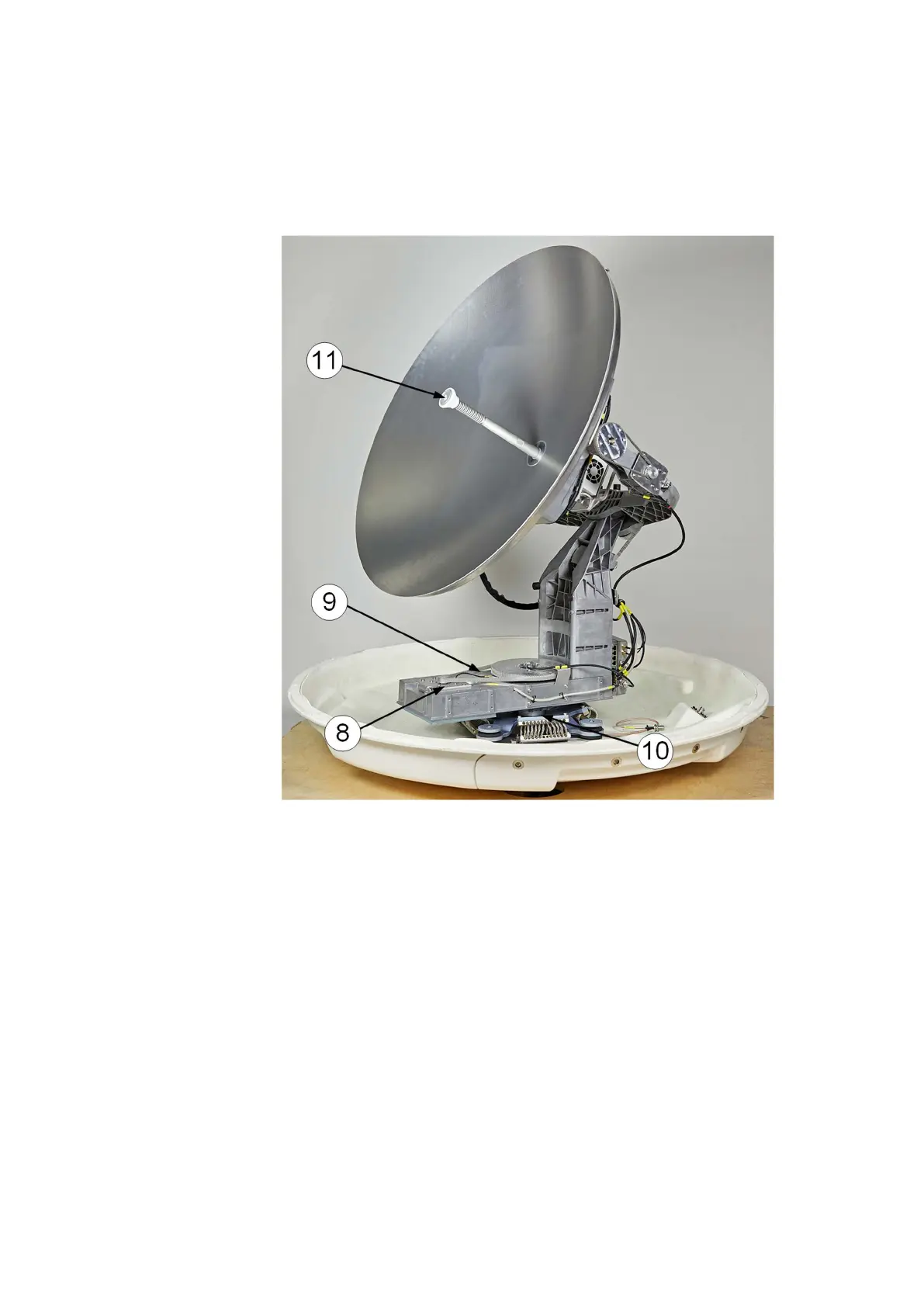

4. Cross elevation motor.
5. Elevation motor.
6. GX-R2 Ka-band transceiver
7. Inertial Sensor Module (ISCM).
8. Azimuth motor.
9. Azimuth zero reference module.
10. Rotary joint.
11. Feed horn.
Figure 1-4: SAILOR 1000 XTR GX-R2: ADU modules 2/2
