COBHAM Satcom SAILOR XTR GX-R2 User Manual

Installation of the 7523A GX-R2 Modem Unit (SMB3315)
98-175666-D Chapter 2: Installation 2-32
RS-232 and RS-422 connectors
The 407523A GX-R2 Modem Unit has two sets of serial interfaces (RS-232 and RS-422)
for control information to and from the BDU.
The two sets of serial ports on the backplane are of two different physical interface
standards: One set DB9 and one set RJ-45.
The RJ-45 RS-232 and RS-422 are used for connection to 407516A SAILOR XTR BDU.
Note
The DB9 interface is not used with SAILOR XTR GX-R2 but is used for
backwards compatibility when replacing a GMU in a legacy SAILOR GX or
SAILOR GX-R2 system.
Outline (on the
modem)
Pin Pin function
- Not used with 407516A BDU.
Used with 407016A ACU.

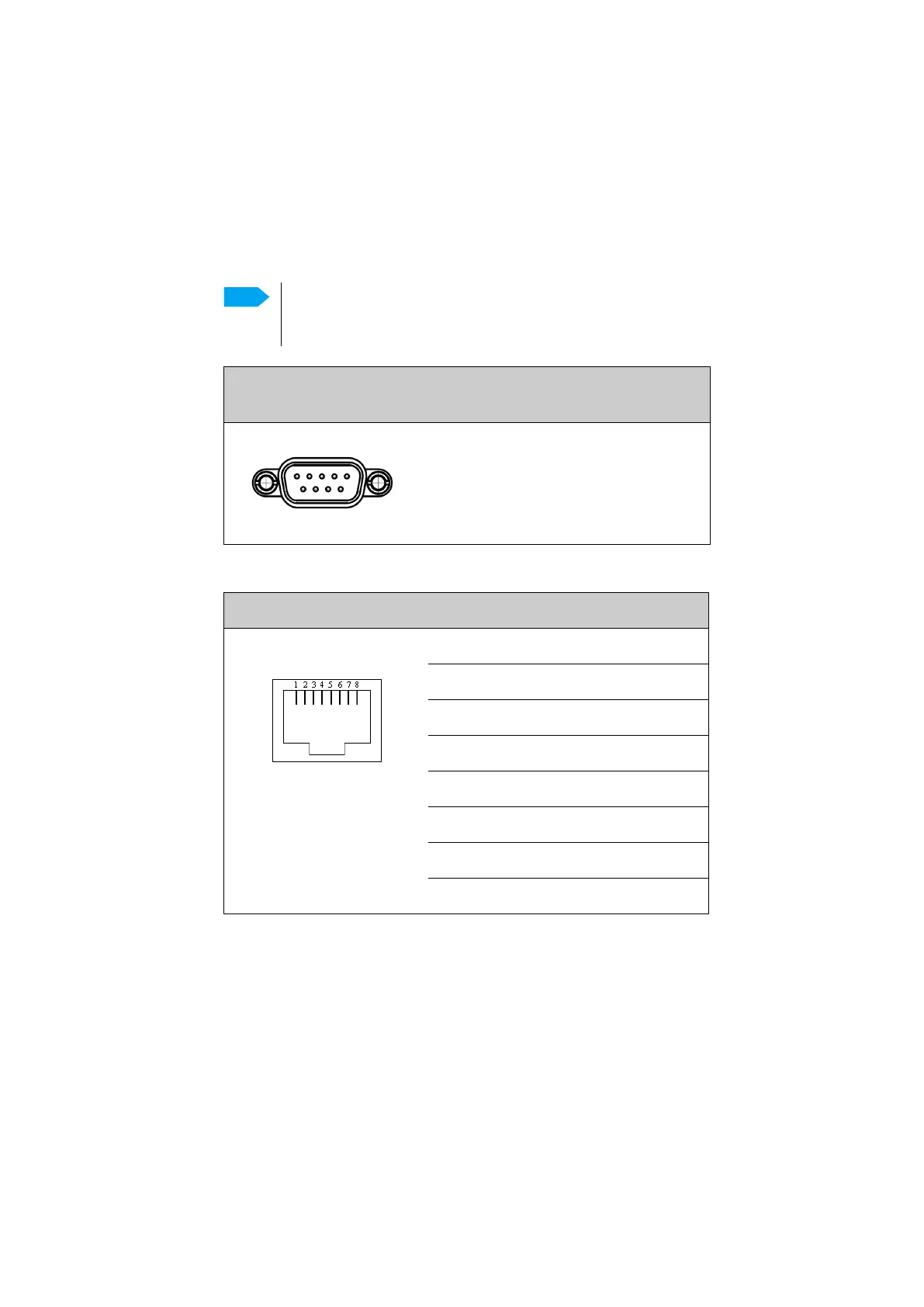

Table 2-21: RS-232 connector, male. Used with 407016A ACU
Outline (on the modem) Pin I/O Pin function
1 - NC
2 O CM power good
3 O CM TxD
4 - Ground
5 - Ground
6 I CM RxD
7 - NC
8 - NC
Table 2-22: RJ45 RS-232 connector (407523A), female, outline and pin
assignment, modem. Used with 407516A BDU.
1 5
6 9
