98-175666-D Chapter 3: Setup of the antenna 3-26
Processing the statistics report in a spreadsheet application
The statistics report is in a data format that can be imported into spreadsheet
applications, e.g. Microsoft Excel, for further processing.
1. Save the zipped file to your computer and extract the text file. The file name
contains the identification of the system (example: adu-
acu3_stat_20111021110901_day.csv).
2. Open the spreadsheet application. On the tab Data click the tab Import from text.
Import the unzipped text file and follow the instructions in the wizard. When asked
about the delimiter, select ‘comma’.
Pol.rx
Pol.tx
Current Rx and Tx polarization modes
Rx Lock (%)
Logon (%)
Rx locked and logon time, in percent, for the
sampling interval.
Pos Ok (%) Valid position, in percent of the sampling
interval.
VMU Connection (%) Link with VSAT modem, in percent of the
sampling interval.
Blocking (%) Ship in blocking zone, in percent of the sampling
interval.
DualAntenna.mode
DualAntenna.logon_remote (%)
DualAntenna.active (%)
Shows the current mode and the time active and
remote logon.

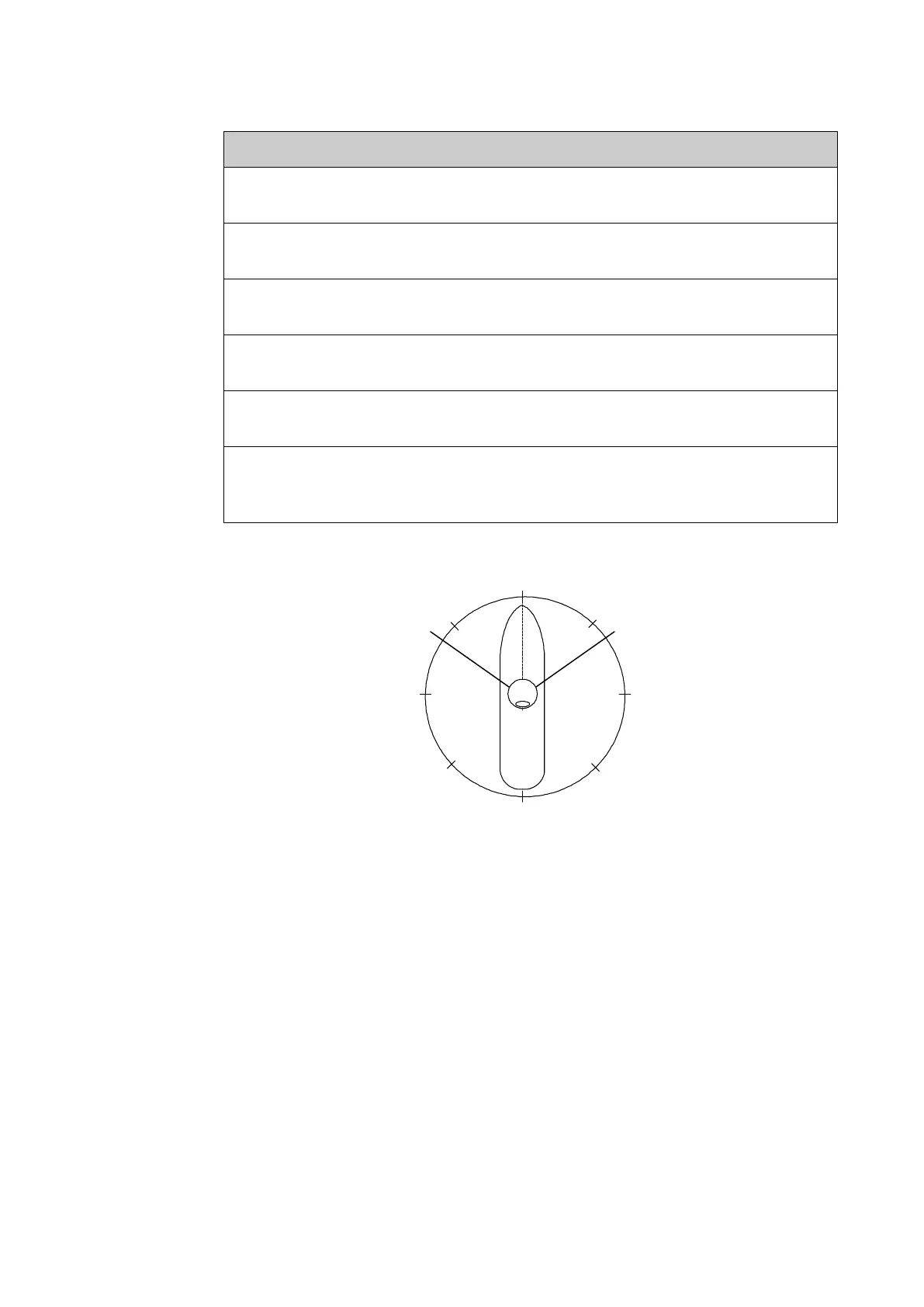

Figure 3-18: Statistics — how to read data for a range
Parameter recorded Description
Table 3-16: Parameters in a statistics report (Continued)
360°
000°
45°
90°
180°
135°225°
270°
315°
Antenna
MaxMin
Covered area:
If range > 0: Go from Min to Max counterclockwise
If range < 0: Go from Min to Max clockwise
