Changing the set-up options
11-4 Outback HF Radiophone
The microprocessor PCB link
The microprocessor link is one that you will have to make and
solder on the microprocessor PCB. The PCB (part number 08-
03741-001) is positioned on the underside of the transceiver.
The link must only be soldered across the number 2 pads as
shown in figure 11.2. A link soldered across pads 2 (called the
inhibit link) prevents you from changing the inhibit set-up
options on P-channel programming.
Microprocessor link
1
2
3
4

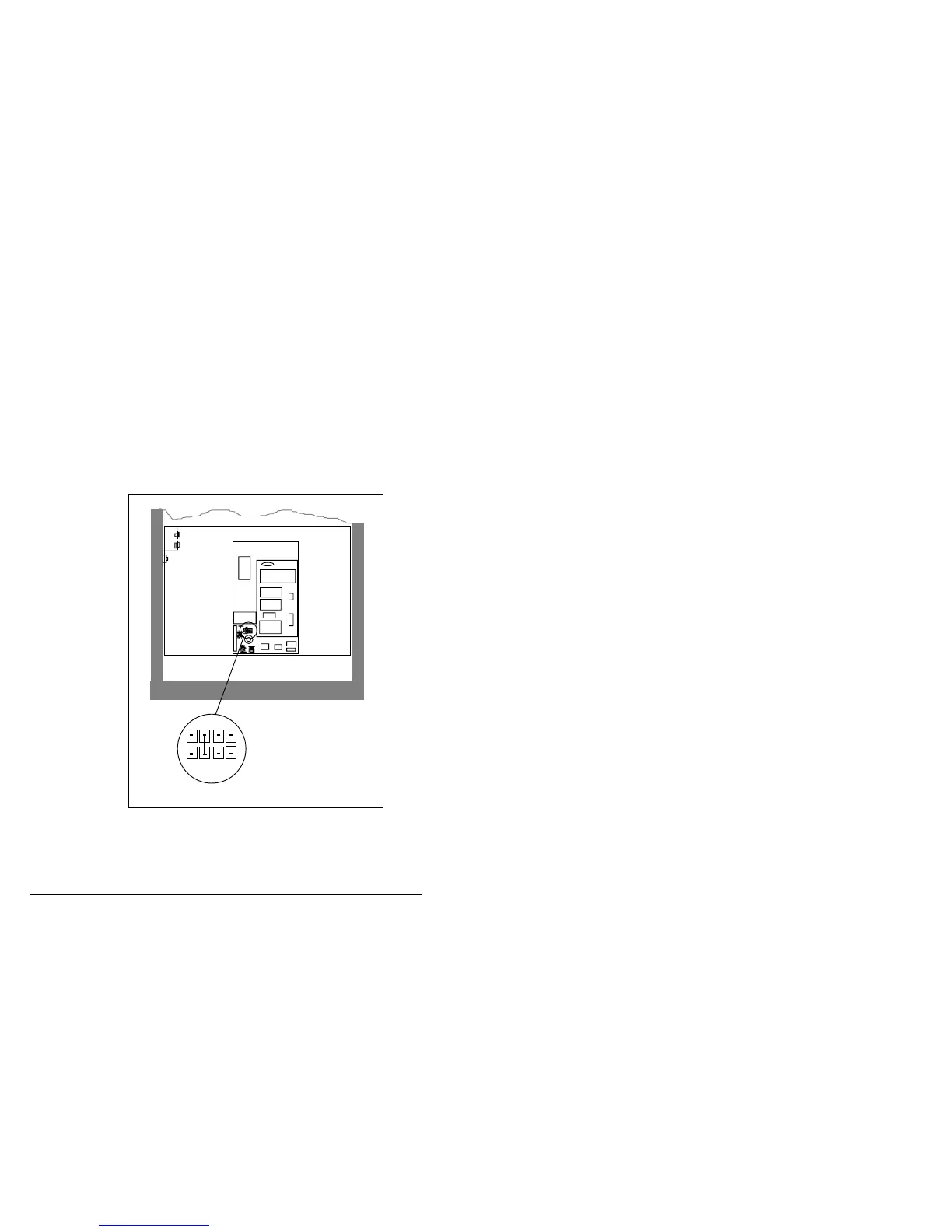

Figure 11.2: The microprocessor link
