Codan 8528 Series - Microphone Socket

Front and rear panel sockets
13-2 Outback HF Radiophone

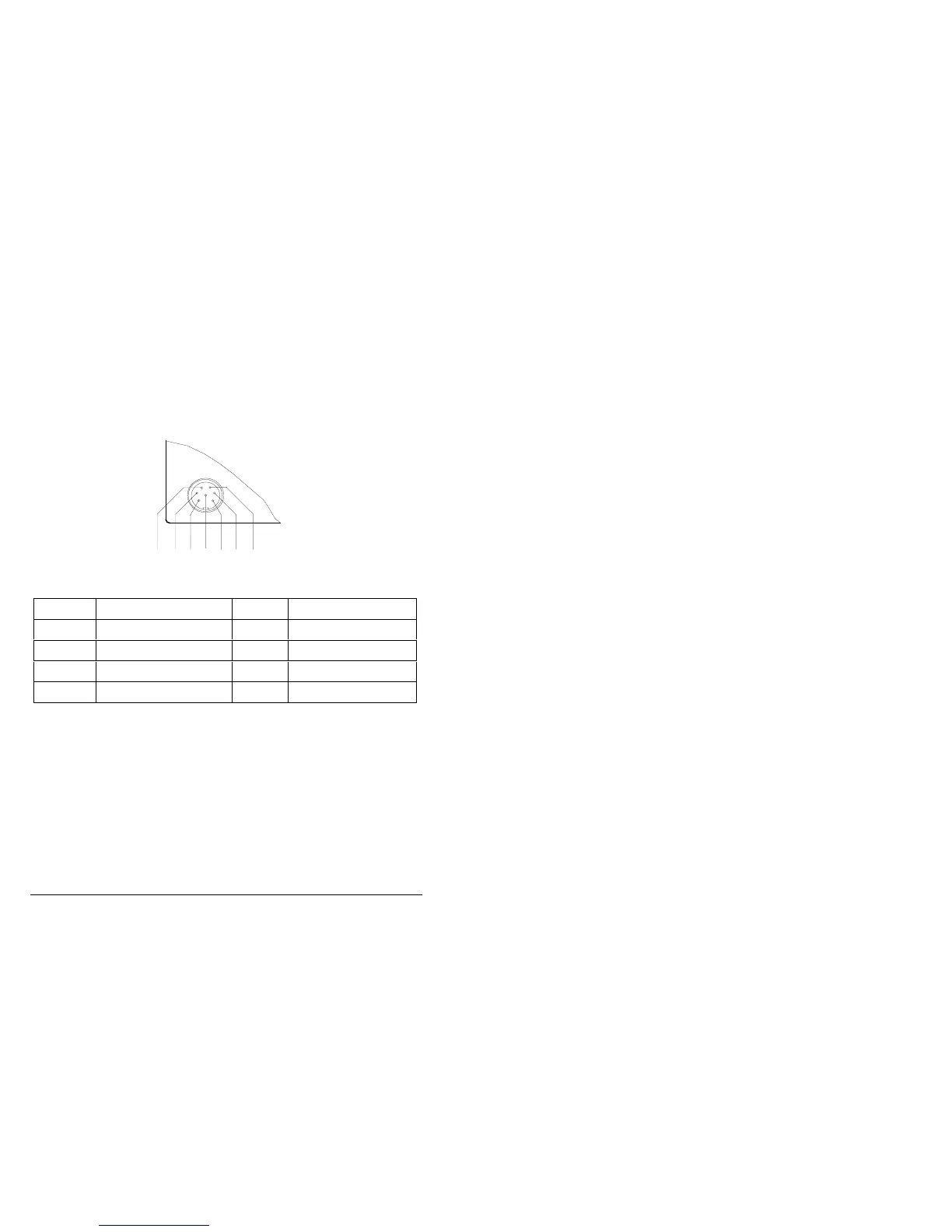

Microphone socket
This socket is located on the front panel of the control head. It is used to connect the
microphone to the Radiophone.
12 3
4
5
6
7
Front panel view
Pin No. Designation Pin No. Designation
1
PTT ground
5
Speaker connection
2
PTT (active low)
6
Audio output
3
Microphone input
7
Audio ground
4
Microphone ground
