5.8.2. Wall Mount
The charging station can be mounted onto a wall using the wall mount bracket (CRA-
WMB4). Mount the bracket to a wall using four #10 (M4 or M5) size screws (not
provided). The wall mount bracket can be mounted in upward or downward position
depending on application (Figure 9). There are three positions that the charging station
can be affixed onto the bracket. Choose a position suitable for your workflow, thread
the USB cable through one of the two cable exit holes on the bracket and attach the
charging station onto the bracket using two screws supplied with the wall mount
bracket. Optional thumb screws (CRA-CR27-01) are available to mount the charging
station without using a screwdriver.

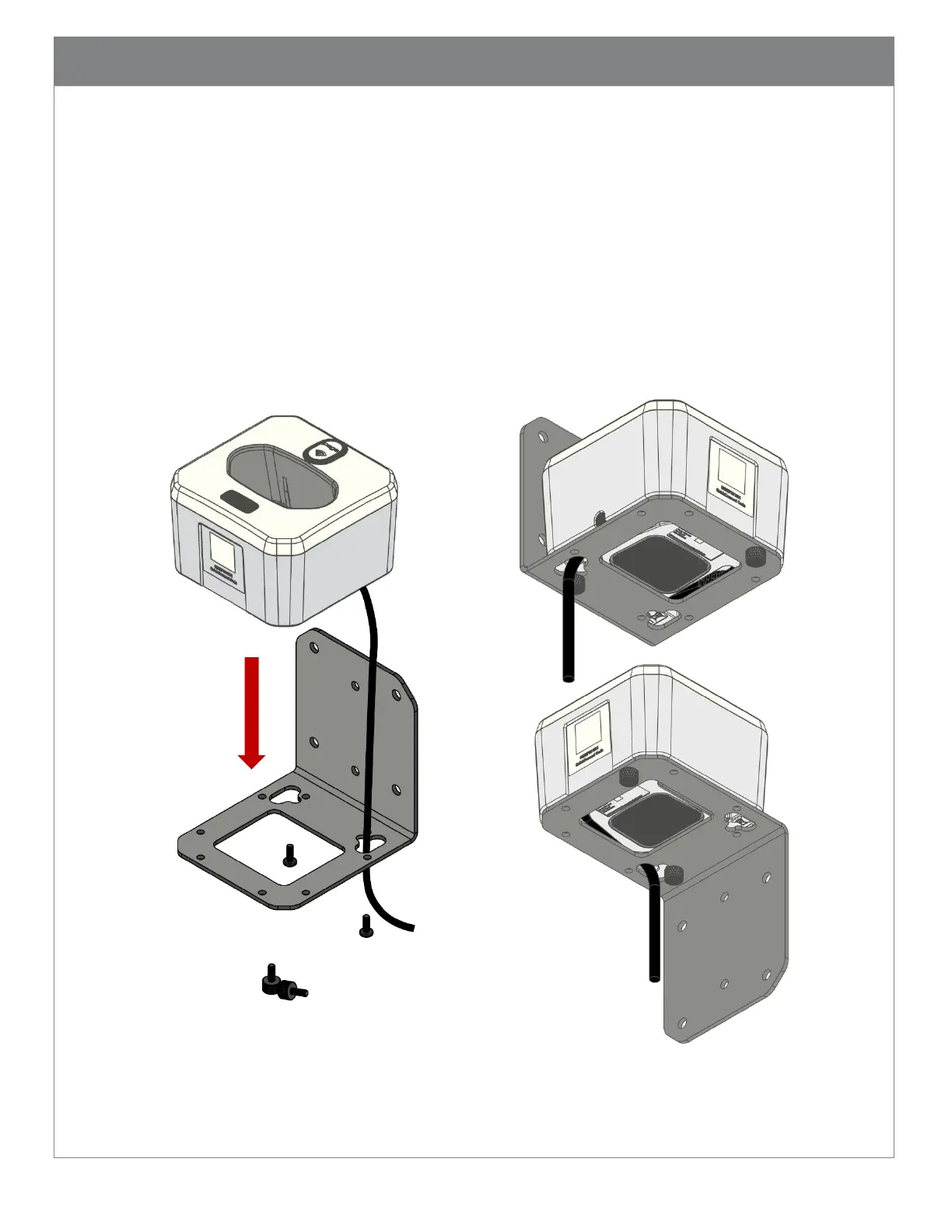

Figure 9 Install Charging Station with Wall Mount Bracket CRA-WMB4
(Thumb screws are optional and
sold separately)
