Horizon Imager User’s Manual 4-9
0HGLD+DQGOLQJDQG6WRUDJH

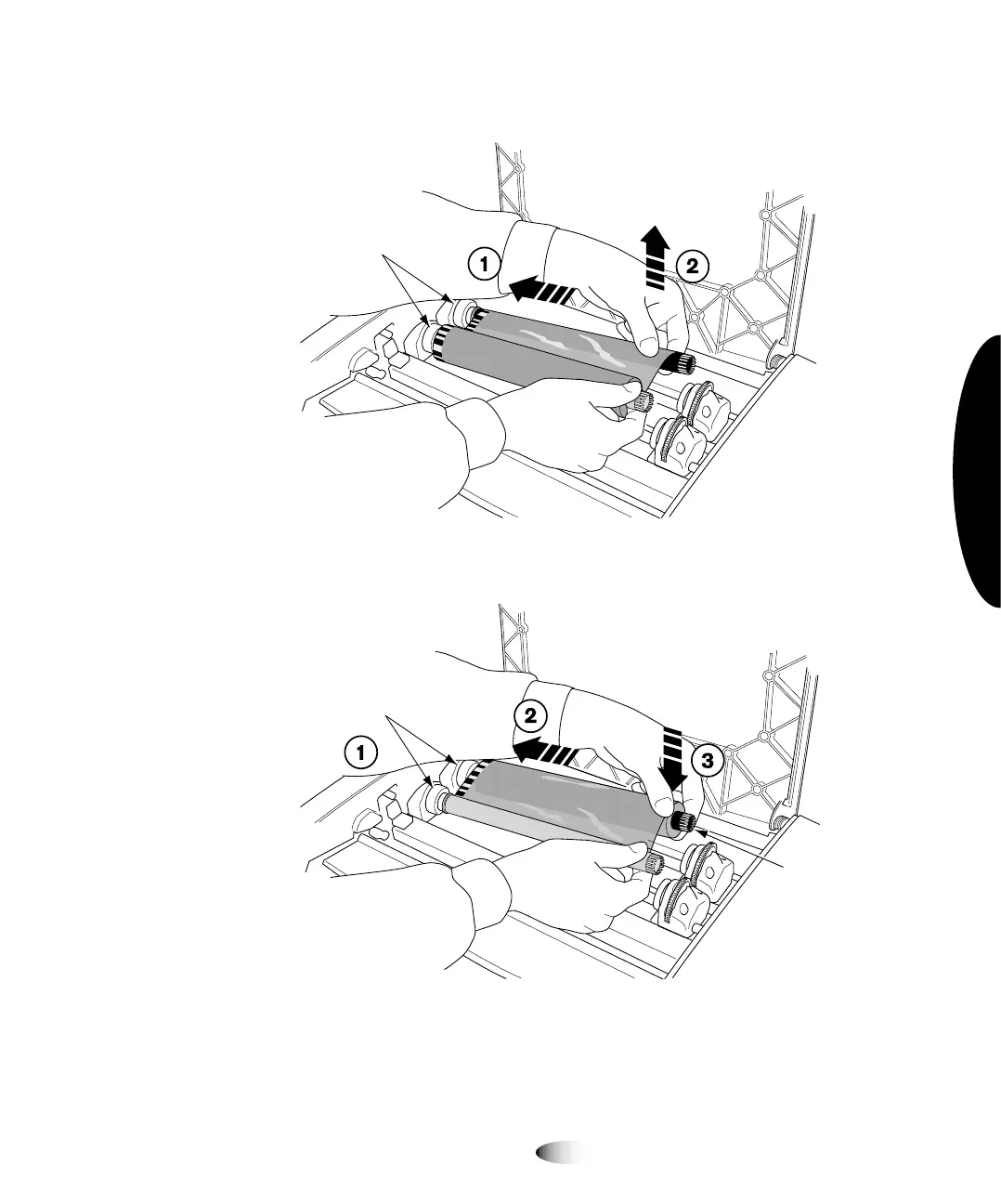

4. Remove the old ribbon, as shown in the following figure.
5. Load the new ribbon, as shown in the following figure.
Spring-loaded
spindles
Spring-loaded
spindles
Black takeup
spool
towards rear
