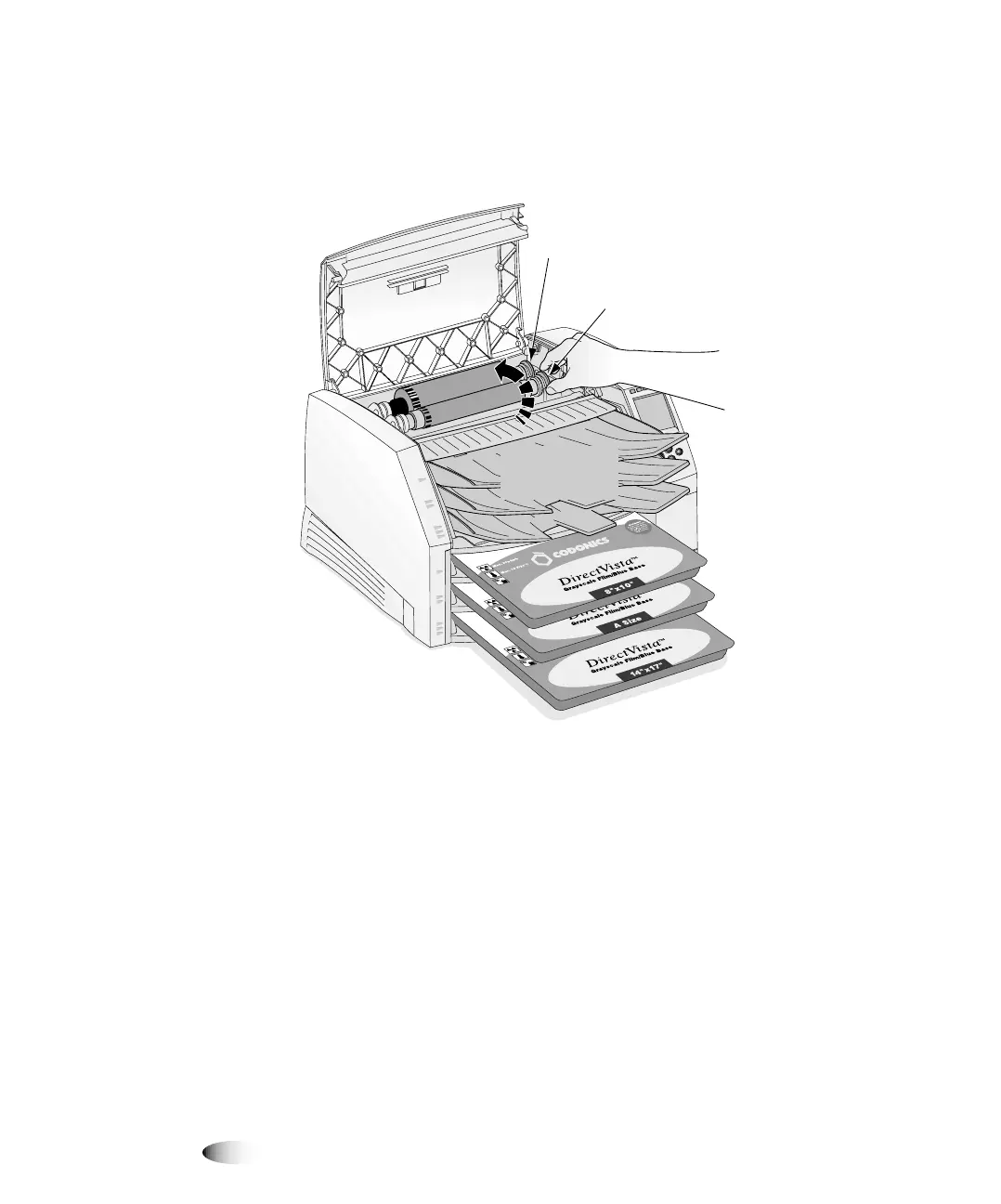

6. To take up any ribbon slack, rotate the top of the take-up spool’s
wheel (that is, the front wheel) towards the back of the imager,
as shown in the following figure.
127(  'RQRWXVHWKHVXSSO\VSRROUHDUZKHHOWRWDNHXSULEERQVODFN7KLVZRXOGFDXVH
VSHQWULEERQWREHUHXVHG
Take-up
spool wheel
Rotate take-up
spool toward
back
Supply spool wheel
(Do not use this wheel)
