10-12 Preventive Maintenance

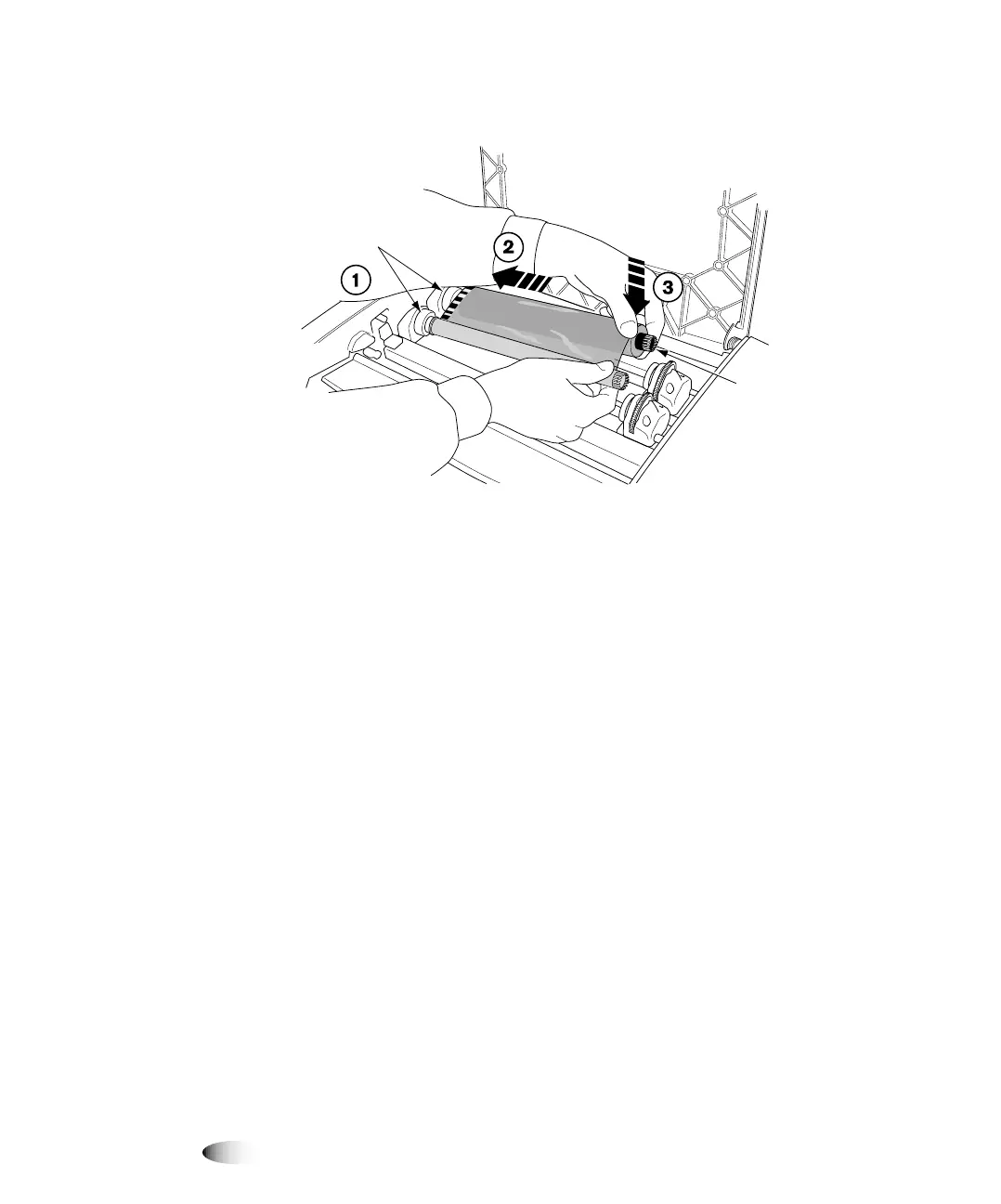

14. Reload the ribbon, as shown in the following figure.
15. Close the top cover.
After a few seconds, the Status screen displays and printing
resumes if jobs are queued.
Spring-loaded
spindles
Black takeup
spool
towards rear
