4.1.4. Prior Mode
There are two modes: “rotation prior to scaling” and “scaling prior to rotation”. When user has set the
parameters “Scale X/Y” and “Rotate Angle”, the patterns will rotate first and then scale up/down, if “rotation
prior to scaling” mode is selected. Otherwise it will scale up/down first and then rotate.
4.1.5. Rep. Mode
There are two repetition modes: normal and partial.
4.1.6. Rep. Order
There are two modes: X first and Y first.
4.1.7. X-Y Rep. Times

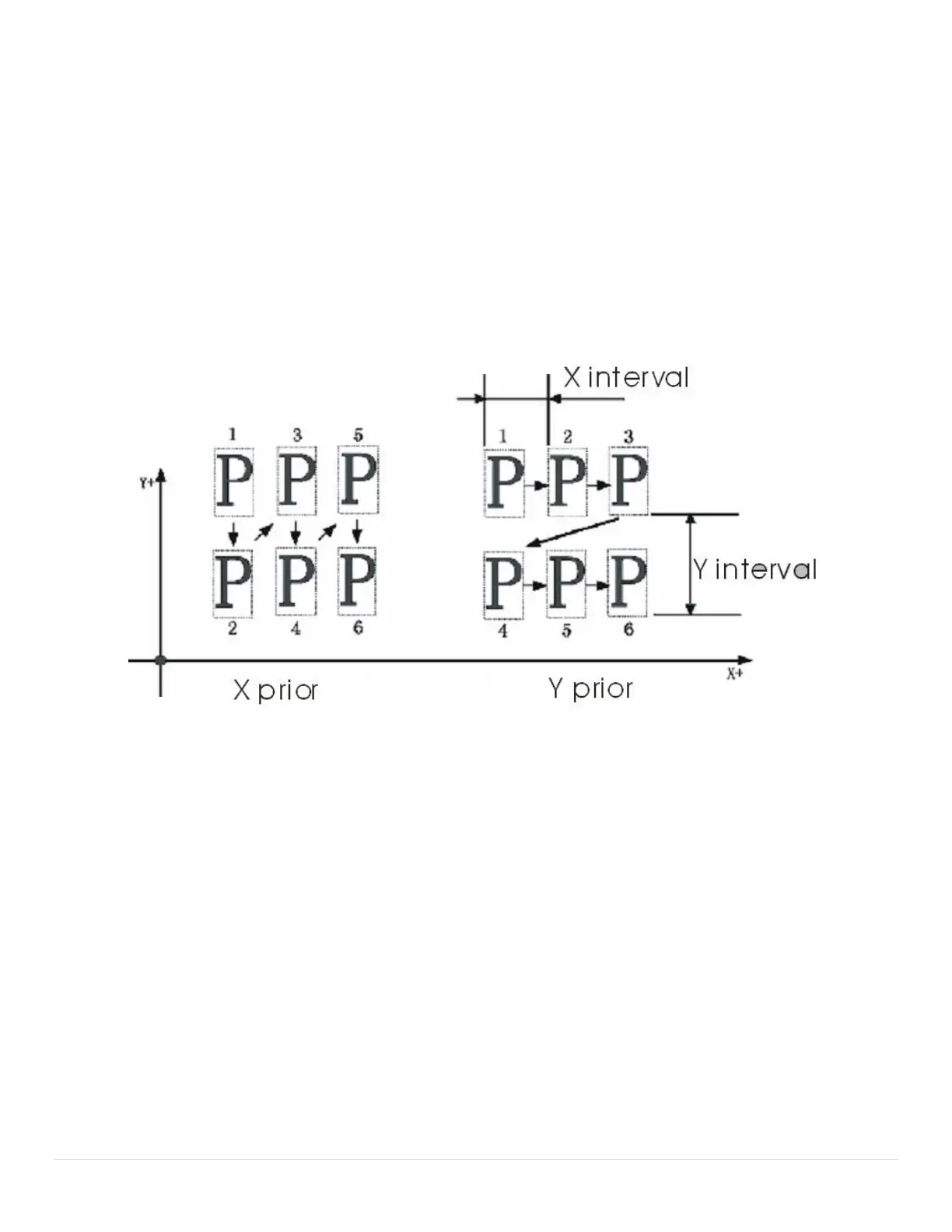

X repetition times represent the number of columns, while Y repetition times the number of lines; as shown in
the above picture, X repetition times are 3 and Y repetition times is 2. The largest set value is 99*99.
4.1.8. X-Y Rep. Interval
The above picture has explained the meaning.
