3.1.1 LCD display
The LCD-display is used to enter and indicate data and operating states of the monitor and labeller.
The background illumination increases the legibility and shows at the same time, that the monitor is
on. A cursor helps to select and enter data. Orientation arrows on the border of the LCD help to
pass through the function trees and to select menu items.

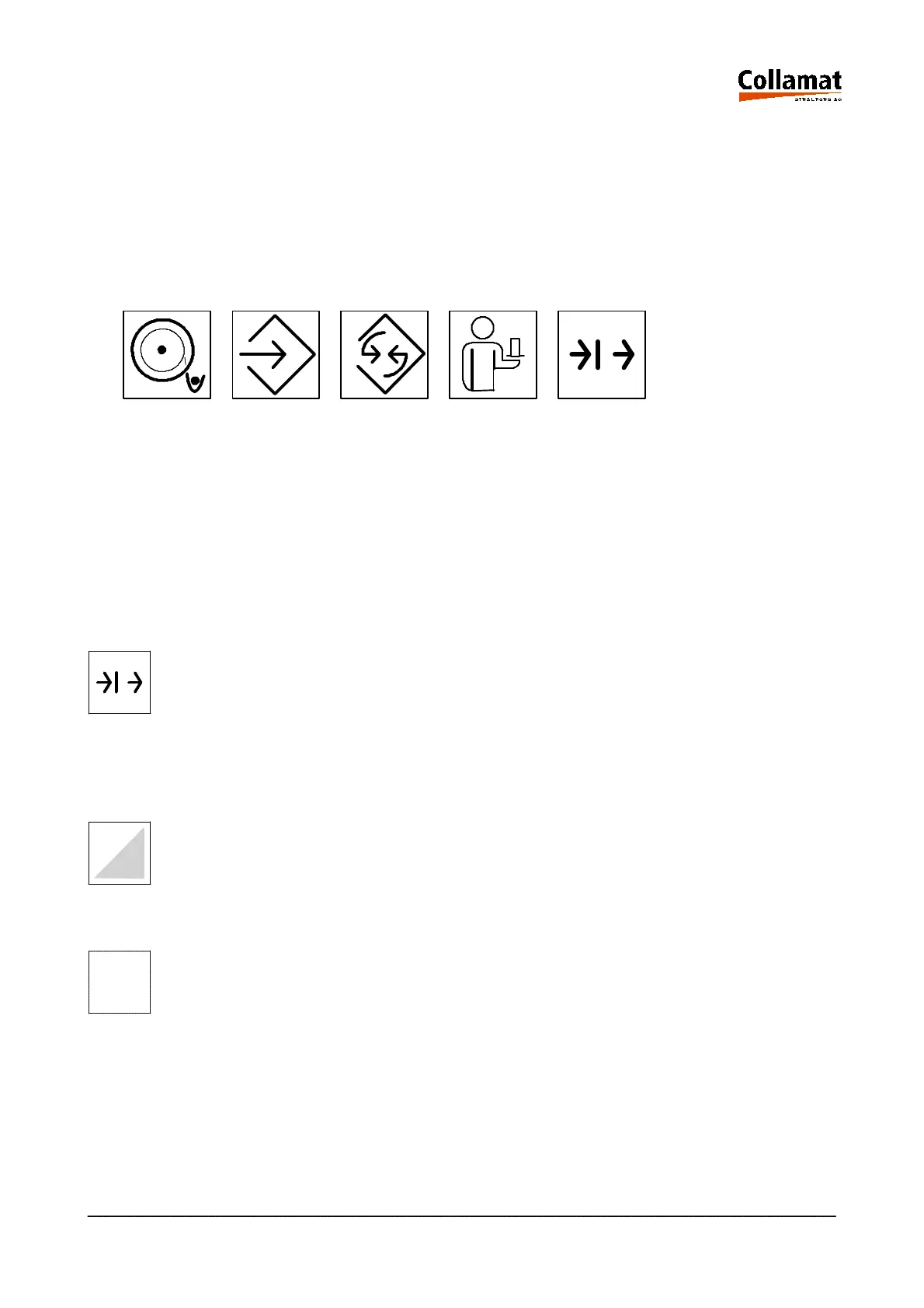

3.1.2 Function keys
The monitor is operated by five function keys. A LED function display is assigned to each function
key showing that the operator is moving in an assigned function tree. In a function tree it is possible
to access to particular function through branches.
If changing from one function tree to another, the actual branch, in which the operator works, will be
temporarily memorized, so that upon a call of the previous function tree he is in the previous branch.
The particular function keys and the parameters which can be selected by each function key are
described below.
3.1.3 RUN/STOP key (6)
The RUN/STOP key is used to start (RUN) or stop (STOP) the Collamat . The RUN sta-
te is indicated by a green LED (8). The STOP state is indicated by a red LED (7). In
RUN state it is not possible to change all functions, because faults could occur during la-
belling. But in STOP state all functions can be changed.
3.1.4 Numerical keyboard (10)
With the numerical keys 0...9 all numerical data can be directly entered via the keyboard.
A decimal point ',' can be entered by key (11).
3.1.5 ENTER key (12)
With the ENTER key the inputs are terminated. The ENTER key is also used to select
the menu item, on which the cursor is actually positioned.
0...9
ENTER
5999.530-01E 14.01.2004 CSWM 4 9
