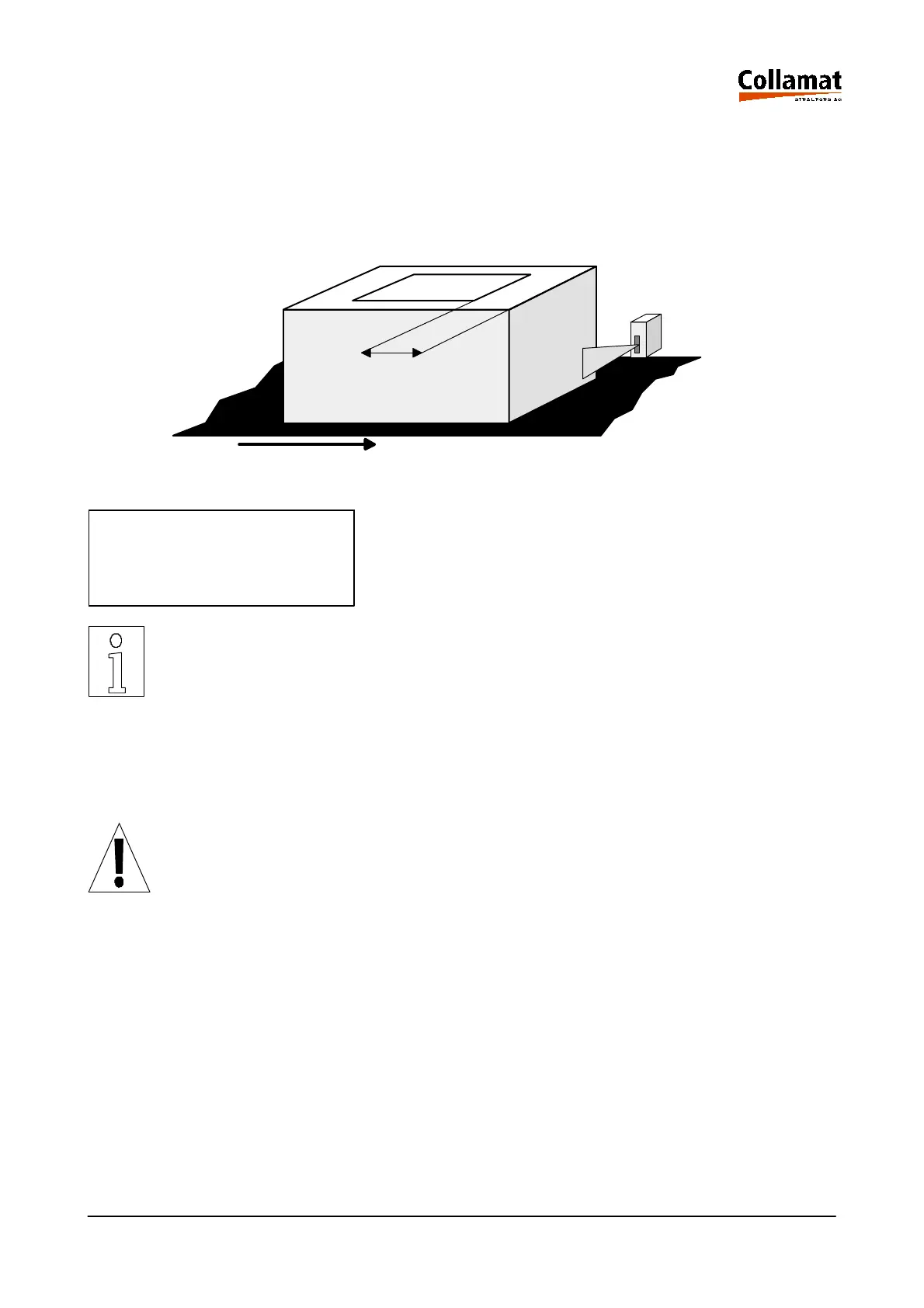

5.6 Position
The Position function is used to set a speed dependent labelling delay. This delay 2 causes a
speed-independent positioning of the label 3 on the good 5 in feed direction 4. With this function it is
not necessary to shift the goods scanner 1 to obtain a change of the label position on the goods.
POSITION
Value : 10.0 mm
Note:
If the value of the position adjustment exceeds the goods distance, a malfuncti-
on will occur, because not each good is labelled.
Predispensing and position influence the placement of the label on the goods.
For a good result, first adjust the predispensing and then the position of the la-
bels. (If afterwards the predispensing is changed, the position of the goods will
also be changed.)
Attention:
Die position setting must not be used to compensate long distances. Otherwise
goods will not be labeled correctly if the goods distance is shorter than the po-
sition setting.
The position value is speed-independent. If with high speed the calculated po-
sition value is too small this will be indicated as an error. See diagram 'Position'
in the Technical Appendix.
1
2
3
4
5
programmer/operator
RUN/STOP
User level:
Operating mode:
5999.530-01E 14.01.2004 CSWM 4 22
