• Form the length of the air line into a coil and store in a non-obtrusive location.

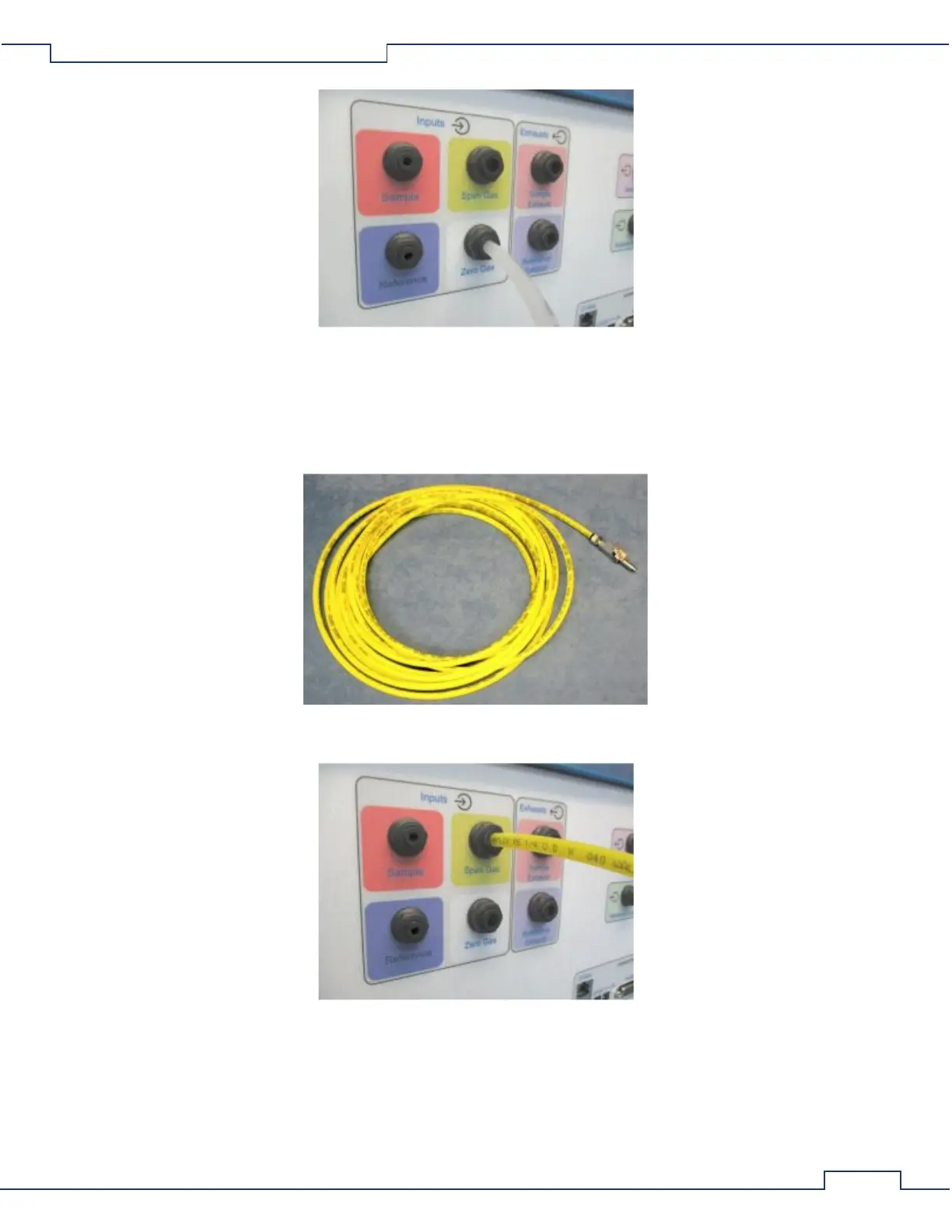

Assembling the Span Gas Source
• Locate the Span Gas Supply Assembly. It consists of 6 meters (20 feet) or more of yellow 1/4" air line
joining with a male quick-connect fitting plug and a yellow ruby restrictor.
• Connect the free end of the air line to the “Span Gas” port of the UGC.
• Form the length of the air line into a coil and store in a non-obtrusive location.
Assembling the Exhaust Ports
• Locate the Exhaust Port Filter Assembly. It consists of a 1/4" tee fitting already connected with a short
length of red and blue tubes and a Parker/Balston particle filter.
