CLAMS Hardware Manual 1012-0001 v1.01

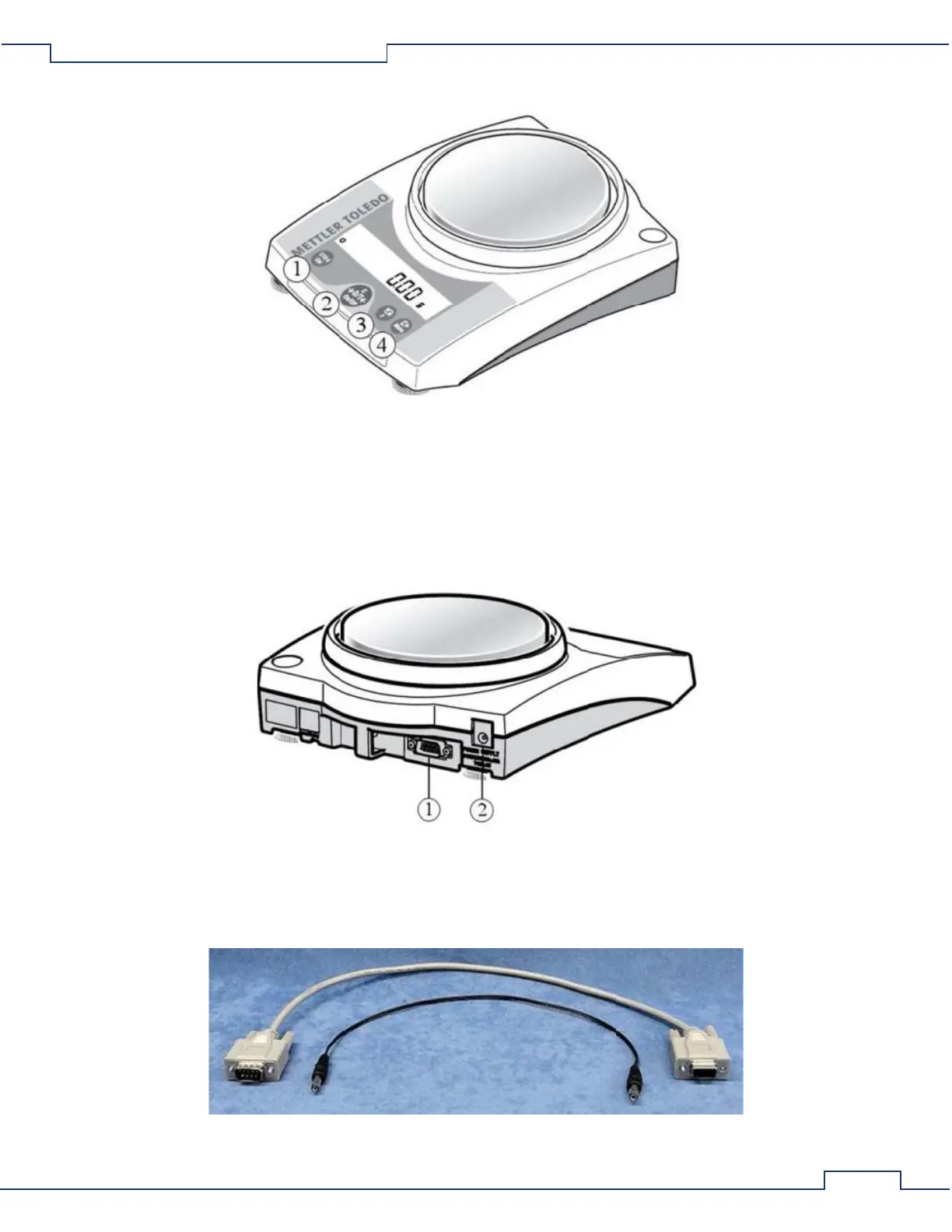

1. Cal – Not used.
2. On/Off – A button that applies full power to the scale on and off.
3. F – Not used.
4. Menu – Not used.
1. RS232 – A serial port used for communication that connects to the serial port of the CLAMS shelf.
2. Power Supply – A coaxial DC power jack used to supply power to the scale.
4.2.1 Connecting the Mass Scale
