Technical and instalation
manual FLOW 38 Batch Page 26 (of 49) COMAC CAL
s.r.o.

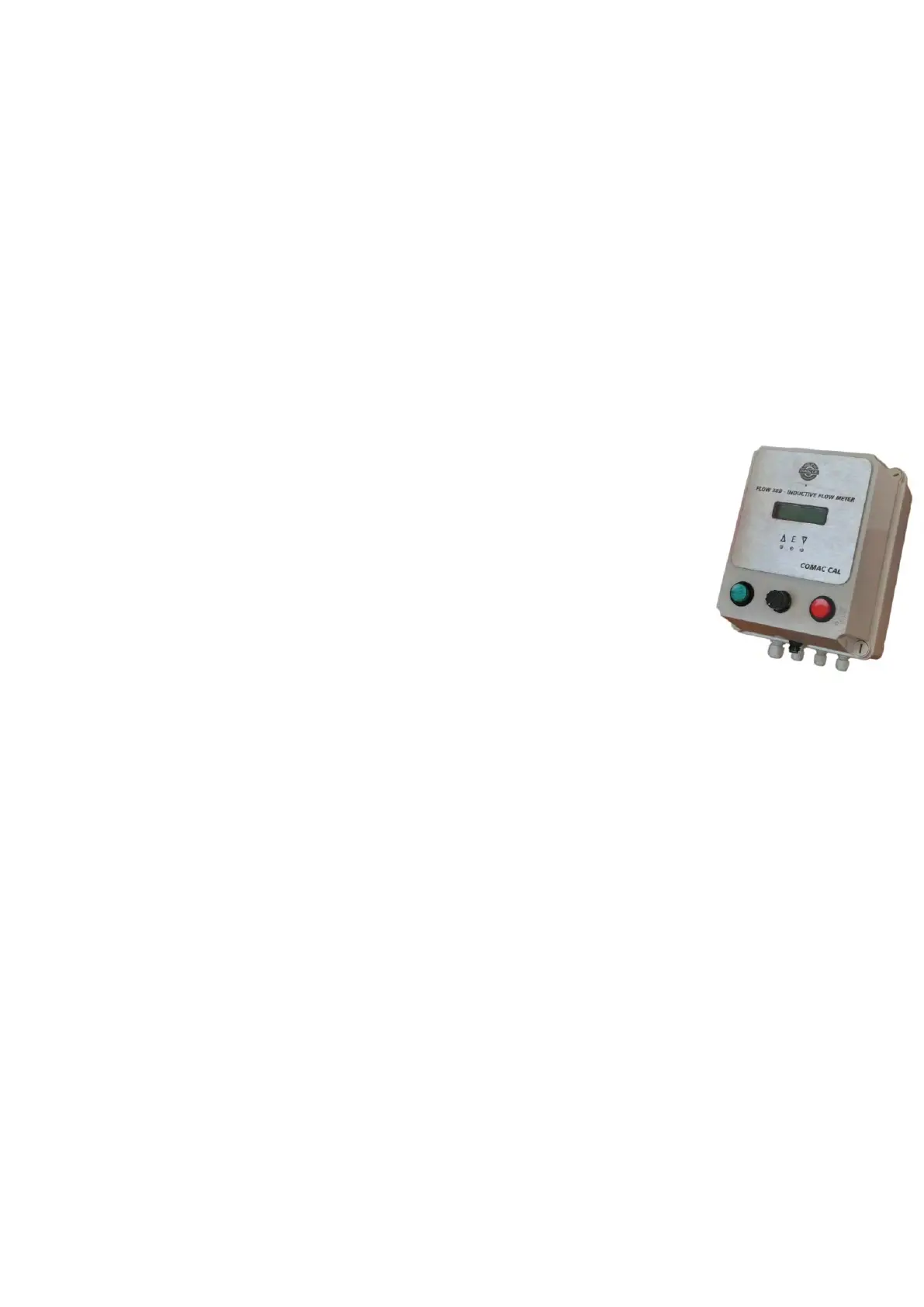

Potenciometer Setting the batch size, the minimum setting value of the potentiometer
corresponds to the limit for the minimal batch and maximum value of the
potentiometer then the maximal batch (see p. 26).
Green "START" button Start the set dose from the beginning, or its restart, if the previous stop red
button.
Red “STOP” button Stop ongoing dose. In the case the batch is stopped yet, than this
unfinished dose is cancelled and the unit is ready to be restarted dose again
from the beginning of the green button.
Function of setting buttons ( under display)
Before pressing E and entering the password
short press movement in current menu up
or modification of the value at the cursor up
short press movement in current menu down or
modification of the value at the cursor down
/ E long press (>3sec) entry to PARAMETERS menu
long press (>3sec) exit from PARAMETERS menu
simultaneously and resetting user rV counter
(short press approx. 0.5sec) in PARAMETERS menu while entering
values by an order back
simultaneously and in PARAMETERS menu, end of modification
of values without writing
(long press >3sec)
simultaneously and total restart of the meter
(long press >8sec)
E short press confirmation (Enter) or modification of a value (setting)
