Basic display menu contains the following items:
Date and Time D/T
Current flow Q
Dose setting Vrun/stop
Volume in positive direction against the arrow on the meter's name plate + V
Volume in negative direction against the arrow on the meter's name plate - V
Total volume (summary in both directions) Σ V
Dose volume (in positive direction only) r V
Status OK
The order may vary as per meter's settings The customers may select the data to be displayed on the
first two lines (or change the order) in such a manner that corresponds to their requirements.
In case that the meter's status is found in a different than normal and correct (OK) status, measurement
failure indication alternates with the normal display indication. As a consequence, it is not necessary
to check the status all the time; in case of trouble, it is indicated on the display unit automatically.
Using both external and internal and buttons, you can list in basic menu, reset the user volumetric
counter (by simultaneous pressing both buttons), enter PARAMETERS menu, list in it and exit from
it.
Meter settings via the display

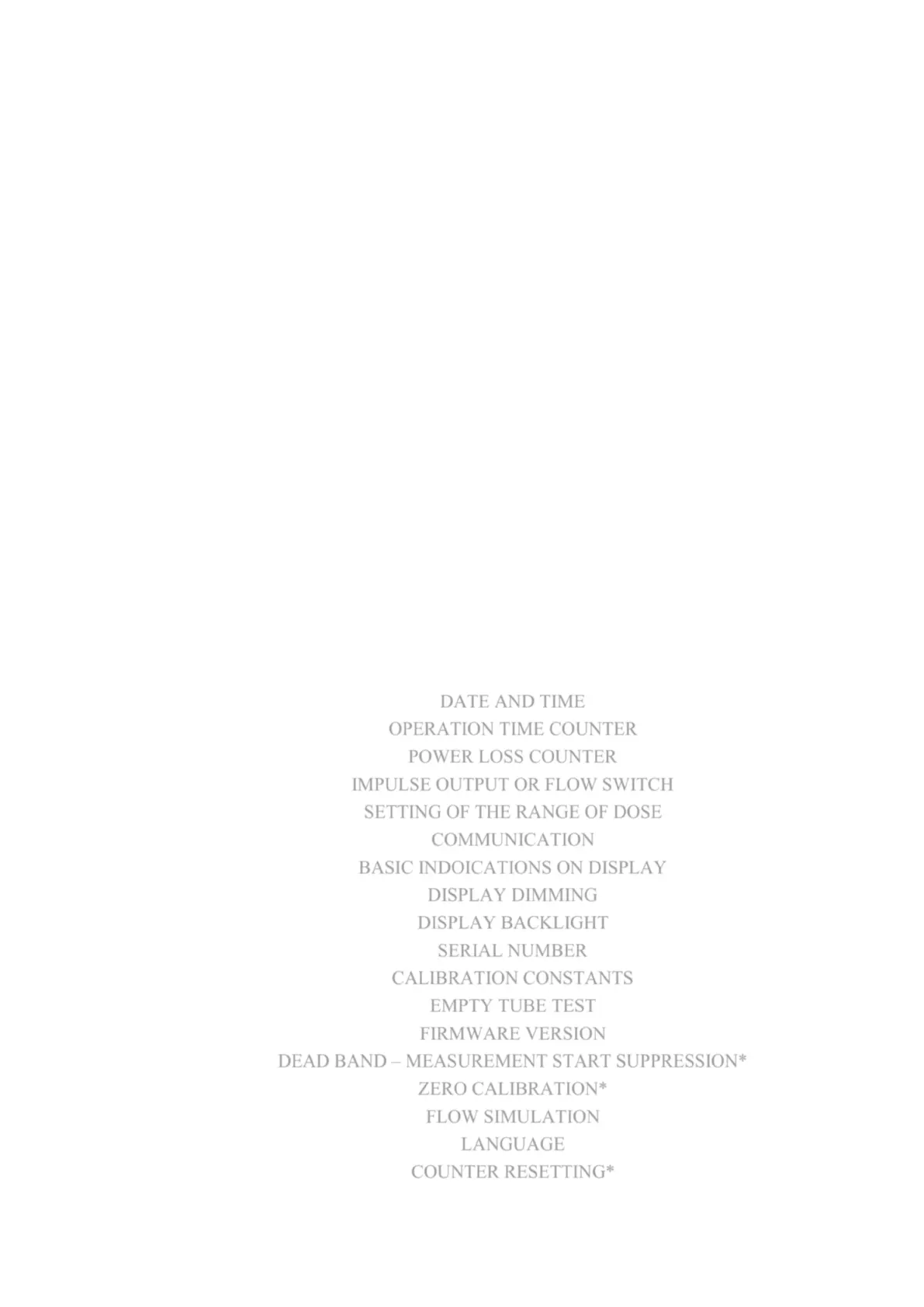

Parameter settings menu contains these following items:
DATE AND TIME
OPERATION TIME COUNTER
POWER LOSS COUNTER
IMPULSE OUTPUT OR FLOW SWITCH
SETTING OF THE RANGE OF DOSE
COMMUNICATION
BASIC INDOICATIONS ON DISPLAY
DISPLAY DIMMING
DISPLAY BACKLIGHT
SERIAL NUMBER
CALIBRATION CONSTANTS
EMPTY TUBE TEST
FIRMWARE VERSION
DEAD BAND – MEASUREMENT START SUPPRESSION*
ZERO CALIBRATION*
FLOW SIMULATION
LANGUAGE
COUNTER RESETTING*
