COMAC CAL FLOW 38 Installation And Technical Manual

Technical and instalation
manual FLOW 38 Batch Page 46 (of 49) COMAC CAL
s.r.o.

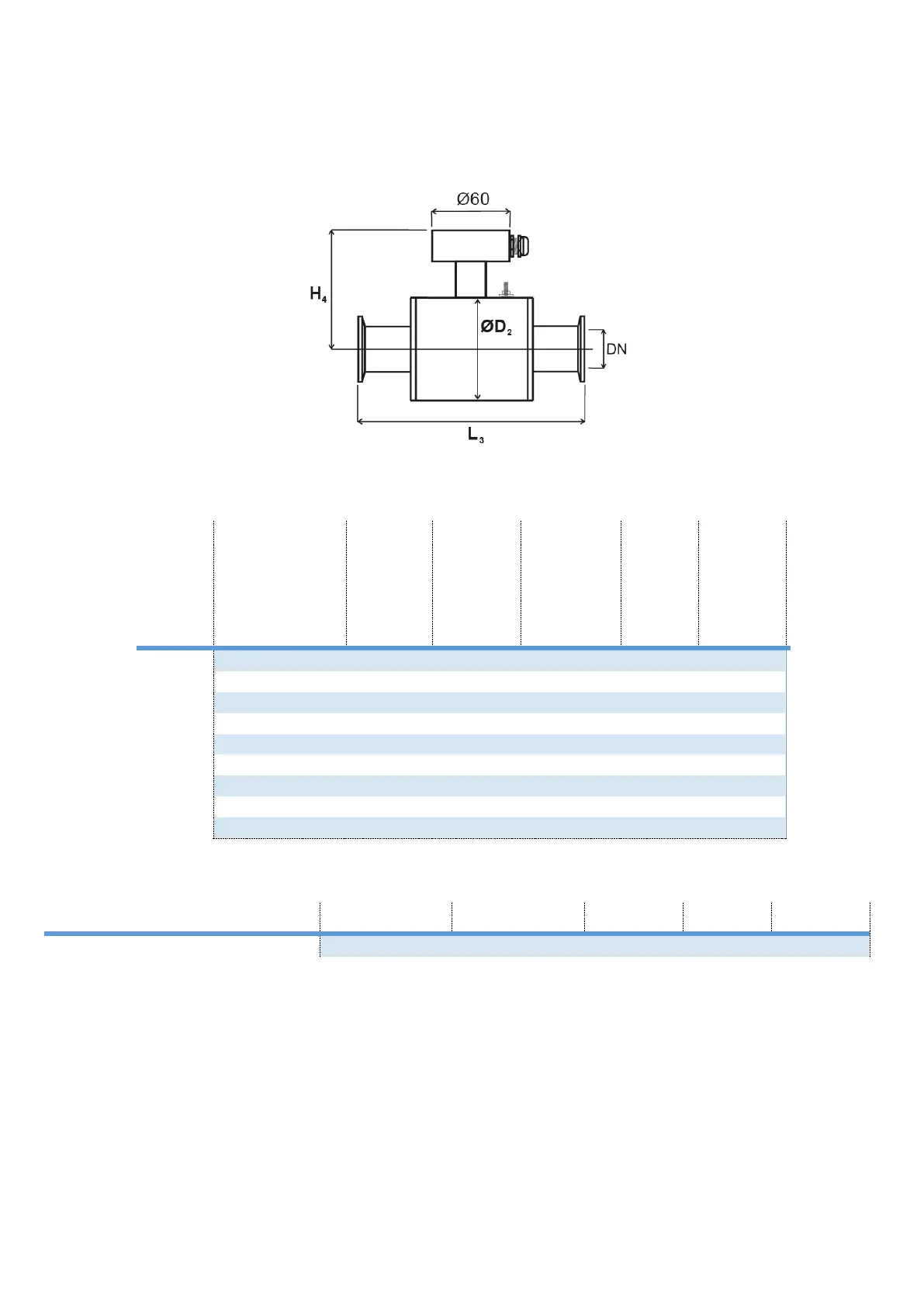

Food industry design
Diameter
nominal
[mm]
Food grade
connection
CLAMP/Screwed
fitting
D
2
Outside
diameter
of sensor
L
3
Building
length of
CLAMP
L
3
Building
length of food
grade
screwed
fitting
H
4
Building
height of
sensor
Weight of
detached
flow sensor
(kg)
10
DN 10
70
180
173
90
4
15
DN 15
70
175
165
90
4
20
DN 20
80
175
170
95
4
25
DN 25
90
175
180
100
5
32
DN 32
100
175
192
105
5
40
DN 40
116
203
215
113
6
50
DN 50
136
211
228
123
7
65
DN 65
151
upon
upon
131
7
80
DN 80
177
agreement agreement
144
8
The Table is for PN25.
Diameter nominal [mm]
DN 15…DN 20 DN 25…DN 40 DN 50 DN 65 DN 80
Outside dimension of CLAMP [mm]
34
50,5
64
91
106

COMAC CAL FLOW 38 Specifications

General

Brand	COMAC CAL
Model	FLOW 38
Category	Measuring Instruments
Language	English
