Technical and instalation
manual FLOW 38 Batch Page 45 (of 49) COMAC CAL
s.r.o.

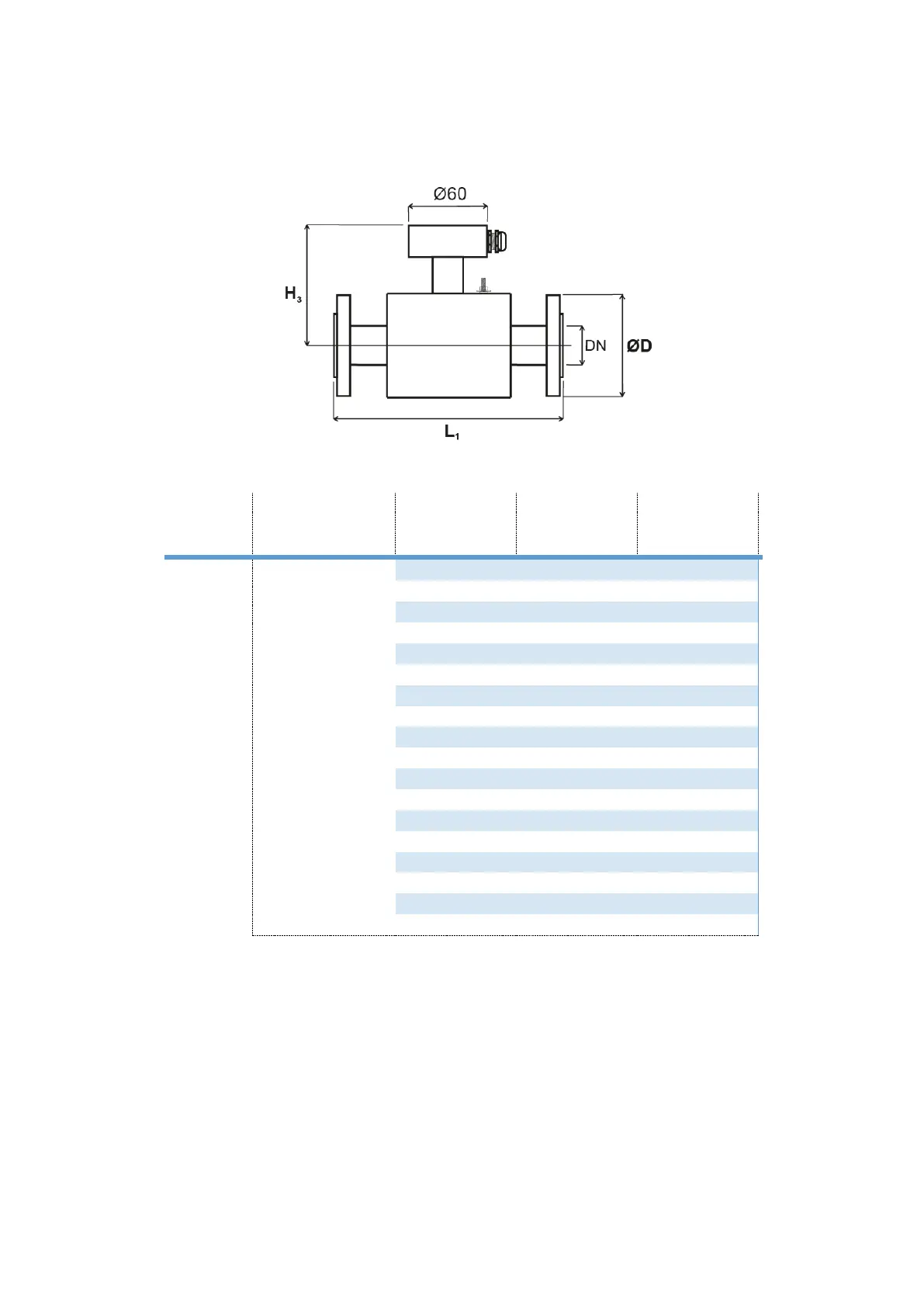

Flanged design
Diameter
nominal
[mm]
D
Outside diameter
of flanges
L
1
Building length
of sensor
H
3
Building height
of sensor
Weight of
detached flow
sensor (kg)
10*,15
The outside
diameter
corresponds to
the required
pressure class and
standards.
200
86
4
20
200
86
4
25
200
91
5
32
200
96
6
40
200
101
7
50
200
109
9
65
200
119
11
80
200
126
12
100
250
139
19
125
250
152
26
150
300
167
37
200
350
197
44
250
450
240
65
300
500
265
78
350
550
295
88
400
600
325
106
500
600
797
115
600
600
930
125
The Table is up to DN 200 for PN25, DN250 and DN300 for PN16, DN350 to DN600 for PN10.
* Process connection is performed through DN 15 flange
