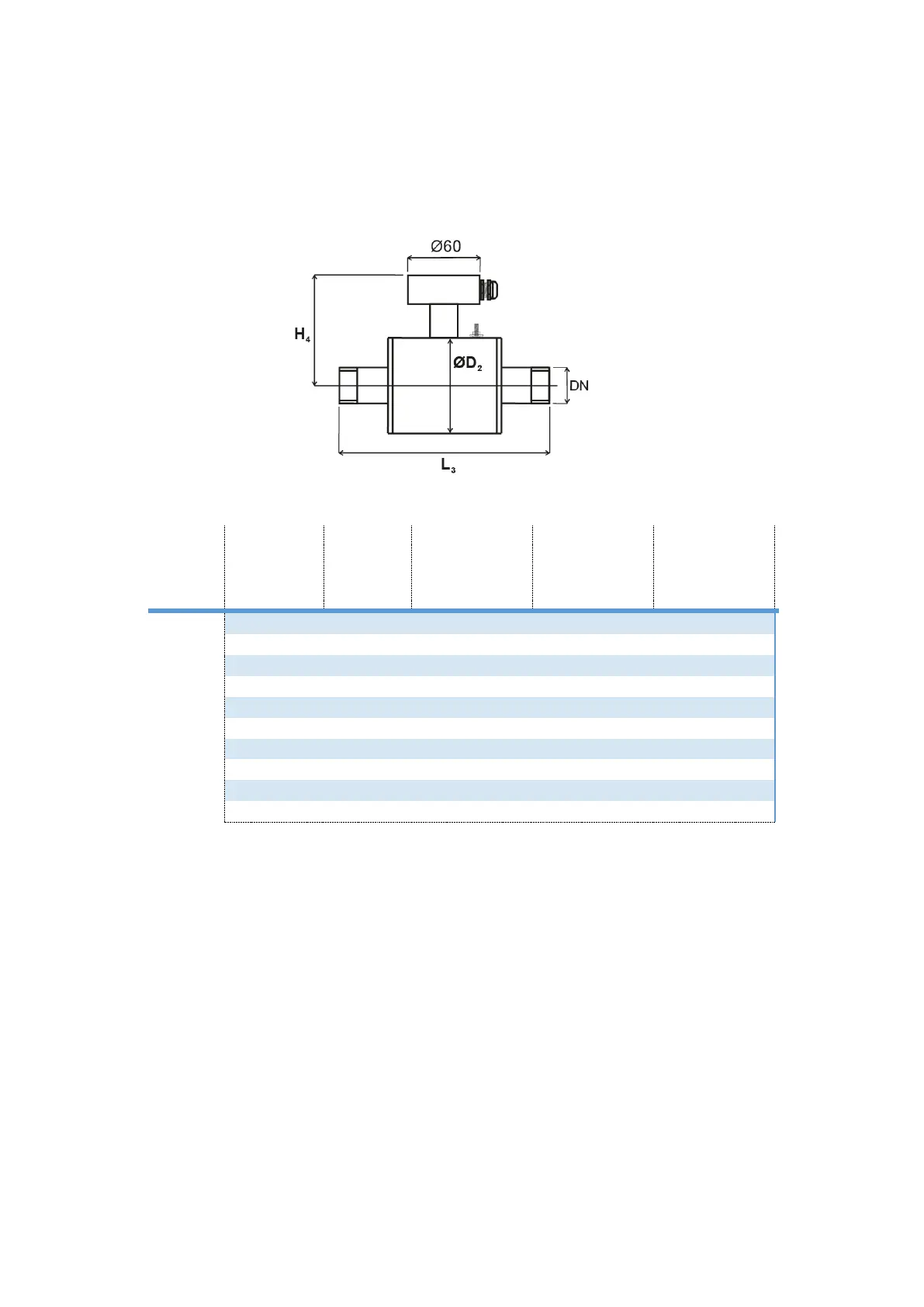

Basic sensor sizes
Threaded design
Diameter
nominal
[mm]
Threaded
connection
D
2
Outside
diameter
of sensor
L
3
Building length
of sensor
H
4
Building height
of sensor
Weight of
detached flow
sensor (kg)
4
½“
70
157
92
4
6
½“
70
157
92
4
8
½“
70
157
92
4
10
3/8
“
70
186
90
4
15
½“
70
190
90
4
20
¾“
80
200
95
4
25
1“
90
200
100
5
32
1 ¼“
100
228
105
5
40
1 ½“
116
248
113
6
50
2“
136
258
123
6
The Table is for PN25.
