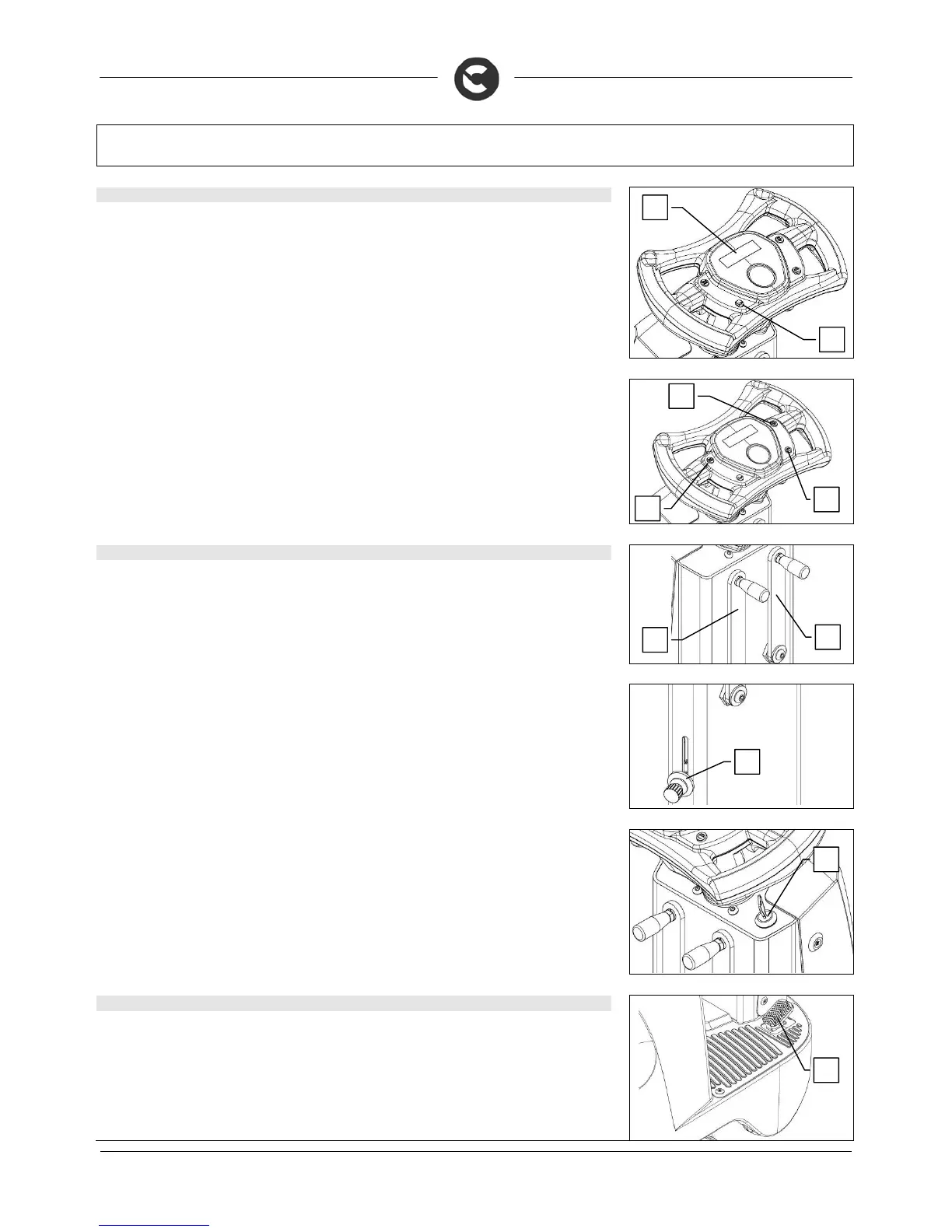

MACHINE PREPARATION
3. INSTRUMENT PANEL ELEMENTS
The instrument panel components are identified as follows:
1. Level indicator for battery/hour meter
2. Horn button
3. Reverse button
4. Brush coupling/uncoupling button
5. "ECO" function button
4. STEERING COLUMN ELEMENTS
The elements on the left side of the steering column are:
6. Squeegee body lifting lever
7. Brush head body lifting lever
8. Detergent solution adjustment lever
9. Main key switch
5. FOOTBOARD ELEMENTS
The components on the front right part of the footboard are:
10. Drive pedal
