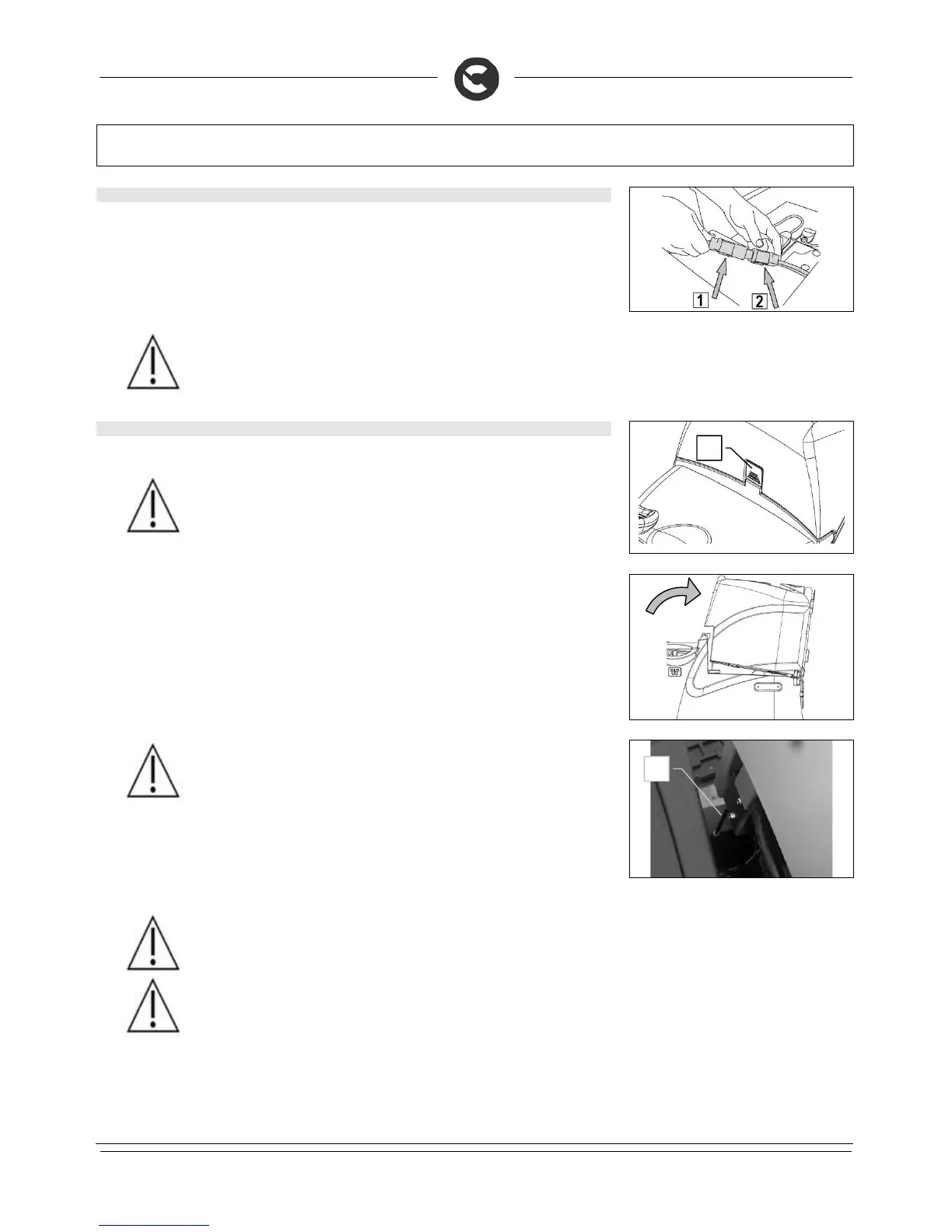

12. BATTERY CONNECTION AND BATTERY CONNECTO
1. Connect the batteries in series to the "+" and "-" poles using the supplied jumper cable
2. Connect the battery connector cable to the "+" and "-" poles in order to obtain the terminal voltage of 24V
3. Connect the battery connector cable (2) to the machine connector (1)
4. Rotate the seat support until it is in the working position
WARNING: All installation and maintenance operations must be carried out by
expert personnel, trained at the specialised assistance centre
13. BATTERY CHARGER CONNECTION (VERSIONS WITHOUT BC)
In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge:
arrange the recharge within a few minutes of the switching on of the "discharged batteries" blinking light.
WARNING: Never leave the batteries completely discharged, even if the
machine is not being used. Check the battery charger is suitable for the
batteries installed, in terms of both capacity and type.
To connect the battery charger you must:
1. Move the machine near to the battery charger
2. Make sure the recovery tank is empty, otherwise empty it completely
3. Check the key switch is on “0”; if this is not the case, turn the key of the main switch anticlockwise to “0”
4. Press the button (1) to release and rotate the recovery tank
5. Grip the recovery tank and rotate it as far as it will go
The coupling connector of the battery charger is supplied inside the bag containing this instruction booklet,
and must be fitted to the battery charger cables as shown in the instructions.
WARNING: This process must be carried out by qualified personnel. An
incorrect connection of the connector may cause problems with machine
functioning.
6. Disconnect the electric system connector from the battery connector
7. Connect the battery charger cable to the battery connector
8. Close the recovery tank until the gas spring (2) is resting on the solution tank
9. Connect the recently wired cable to the external battery charger
WARNING: Carefully read the use and maintenance instructions of the battery
charger that is used for charging.
WARNING: Keep the recovery tank open for the duration of the battery
recharging cycle to allow gas fumes to escape
10. After the charging cycle is complete, the battery connector must be connected to the machine connector
