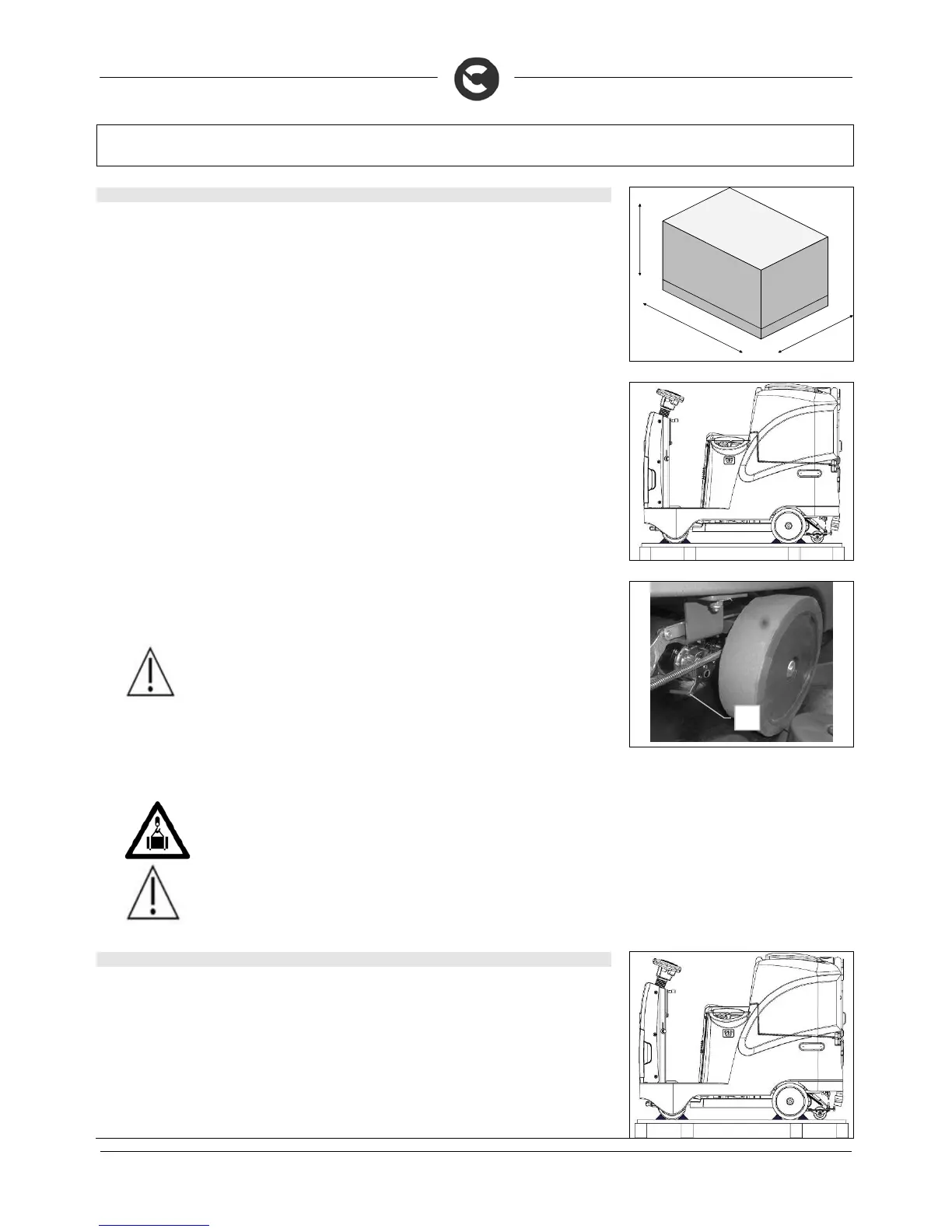

1. HANDLING OF THE PACKED MACHINE
The machine is contained in specific packaging with a pallet for the handling with fork trucks. The
packages cannot be placed on top of each other.
The total weight of the machine and packaging is 135kg
The dimensions of the packaging is as follows:
INNOVA 55B
A : 1200 mm
B : 660 mm
C : 1430 mm
1. Remove the outer package
2. The machine is fixed to the pallet with wedges which block the wheels
3. Disengage the electronic brake, turn the lever (1) (on the rear right-hand side of the machine) clockwise
4. Remove the wedges
5. Use a chute to get the machine down from the pallet, pushing it backwards. Do not assemble the rear
squeegee before unloading the machine, and avoid violently jolting the brush head. To assemble the
squeegee, read the “ASSEMBLING THE SQUEEGEE” paragraph.
ATTENTION: During transportation, the electrical brake should not be engaged, the
machine will in any event, if the critical speed threshold is crossed, activate the
internal braking system of the chopper circuit board and will emit a warning noise.
6. Keep the pallet for any future transport needs
WARNING: If the product is delivered in cardboard containers, handle the packed
product with suitable lifting means that comply with the legal requirements
WARNING: During this operation, check there are no people or objects near
the machine
2. HOW TO MOVE THE MACHINE
1. Check the solution tank and recovery tank are empty; if necessary, empty them
2. Check that the brush head and squeegee are in the raised position
3. Place it on a pallet using a chute
4. Check that the key switch is in the "0" position and remove the key
5. Secure the machine to the pallet using wooden wedges
6. Engage the electronic brake
