MACHINE PREPARATION
MACHINE PREPARATIONMACHINE PREPARATION
MACHINE PREPARATION
1.
1.1.

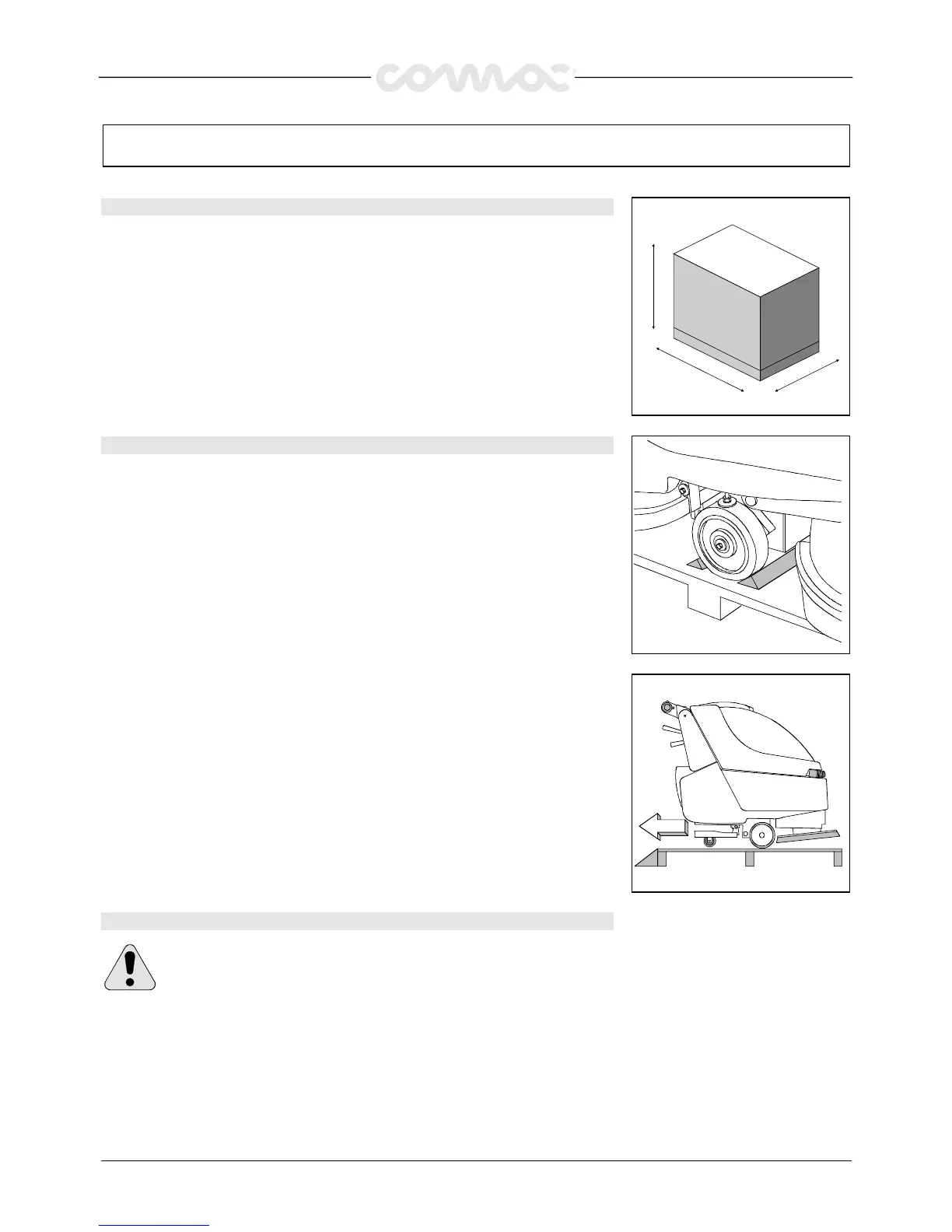

1. HANDLING OF THE PACKED MACHINE
HANDLING OF THE PACKED MACHINEHANDLING OF THE PACKED MACHINE
HANDLING OF THE PACKED MACHINE
The machine is packed in a specific package provided on a pallet for the handling with
fork trucks. Do not place more than two packages on top of each other.
The total weight is : 105 kg, machines without traction (Simpla 45-50)
115 kg, machines with traction (Simpla 45-50 T)
134 kg, machines without traction (Simpla 61)
144 kg, machines with traction (Simpla 61 T)
The overall dimensions are:
A:
A:A:
A: 1150 mm (Simpla 45-50) A:
A:A:
A: 1280 mm (Simpla 61)
B:
B:B:
B: 610 mm B:
B:B:
B: 760 mm
C:
C: C:
C: 1250 mm C:
C:C:
C: 1520 mm
A
C
B
2.
2.2.
2. HOW TO UNPACK THE MACHINE
HOW TO UNPACK THE MACHINEHOW TO UNPACK THE MACHINE
HOW TO UNPACK THE MACHINE
1.
Take off the outer package
2.
The machine is fixed on the pallet with wooden wedges which block the wheels
3.
Take off these wedges
4. Using a chute, get the machine down from the pallet, pushing it in reverse motion.
Avoid violent blows to the base.
5.
Keep the pallet for eventual transport necessities
3.
3.3.
3. CABLE CONNECTION TRACTION MOTOR (machines with traction)
CABLE CONNECTION TRACTION MOTOR (machines with traction) CABLE CONNECTION TRACTION MOTOR (machines with traction)
CABLE CONNECTION TRACTION MOTOR (machines with traction)
WARNING!
WARNING! WARNING!
WARNING! This operation must be carried out by a technician of the
Comac service dept. COMAC
