COMAC Simpla - Battery Installation; Approved Battery Types; Battery Maintenance Advice

31
MACHINE PREPARATION
MACHINE PREPARATIONMACHINE PREPARATION
MACHINE PREPARATION
4.
4.4.

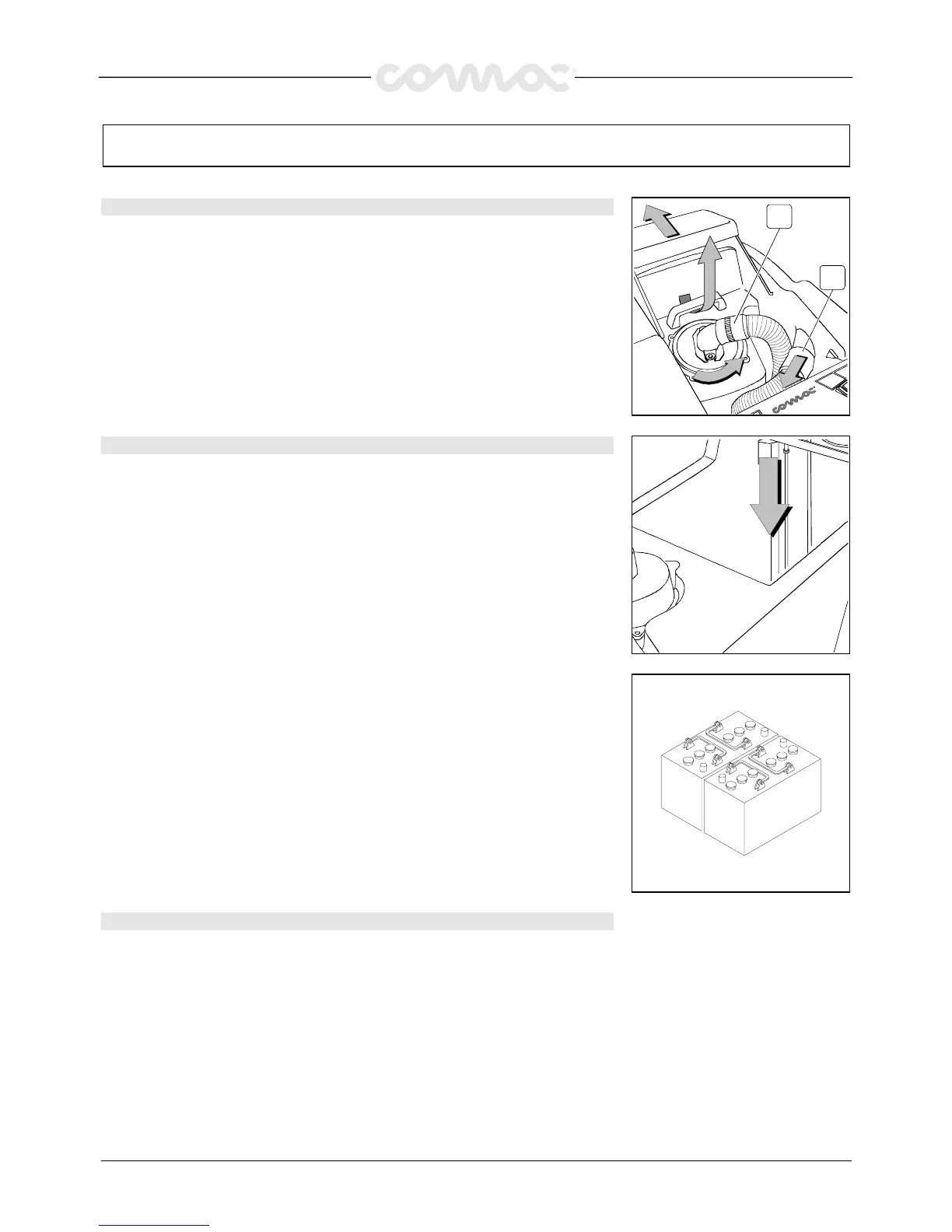

4. INSTALLATION OF THE BATTERIES INTO THE MACHINE
INSTALLATION OF THE BATTERIES INTO THE MACHINE INSTALLATION OF THE BATTERIES INTO THE MACHINE
INSTALLATION OF THE BATTERIES INTO THE MACHINE
The batteries must be fitted in the suitable compartment under the recovery tank ad they
must moreover satisfy the requirements quoted in the Specification CEI 21-5.
For the battery installation it is necessary to:
1.
Open forward the cover of the recovery tank
2.
Detach the squeegee hose (1) from the recovery tank
3.
Take off the suction plug (2) rotating it counterclockwise
4.
Take off the recovery tank and take care to insert the prop in its position
5.
Place the batteries
1
2
5.
5.5.
5. BATTERY TYPE
BATTERY TYPE BATTERY TYPE
BATTERY TYPE
For the energy supply use following type of batteries:
lead batteries for traction use with tubular plates and electrolyte free;
or batteries hermetically sealed for traction with gel/gas recombination technology.
DO NOT USE OTHER KIND OF BATTERIES
Every battery is compost out of DIN elements with serial connections and arranged in-
groups in two boxes, every group supplies to the holdfasts a voltage of 12V. The
maximum dimensions and the weight of every container are: width 172 mm, length 360
mm, height 285 mm; weight 37,5 Kg.
They have to be moved by suitable means of lifting and transport to weight and
dimension. They have to be coupled using the two handles present at the top of each
box.
They have to be insert in the battery room with the holdfasts in position towards the
posterior part of the machine.
There must be a serial connection between them in order to achieve a voltage of 24V to
the holdfast of the battery. The electric connection process has to be carried out by
specialised persons which were trained by a COMAC service center
6.
6.6.
6. MAINTENANCE OF THE BATTERY
MAINTENANCE OF THE BATTERYMAINTENANCE OF THE BATTERY
MAINTENANCE OF THE BATTERY
For the maintenance and the recharge follow the instructions given by the constructor of
the batteries.
Pay particular attention to the choose of the battery-charger, which differs according to
the type and capacity of the battery.
