InteliLite Global Guide
119
The module is plugged into the slot located on the rear side of the controller. To find more information about
installation of the modules see Plug-in module installation on page 41.
RS485 interface uses COM2 Mode (page 301) port of the controller. Use a cross-wired serial communication
cable with DB9 female connectors and signals Rx, Tx, GND.
Note: Also USB-RS485 convertor can be used.

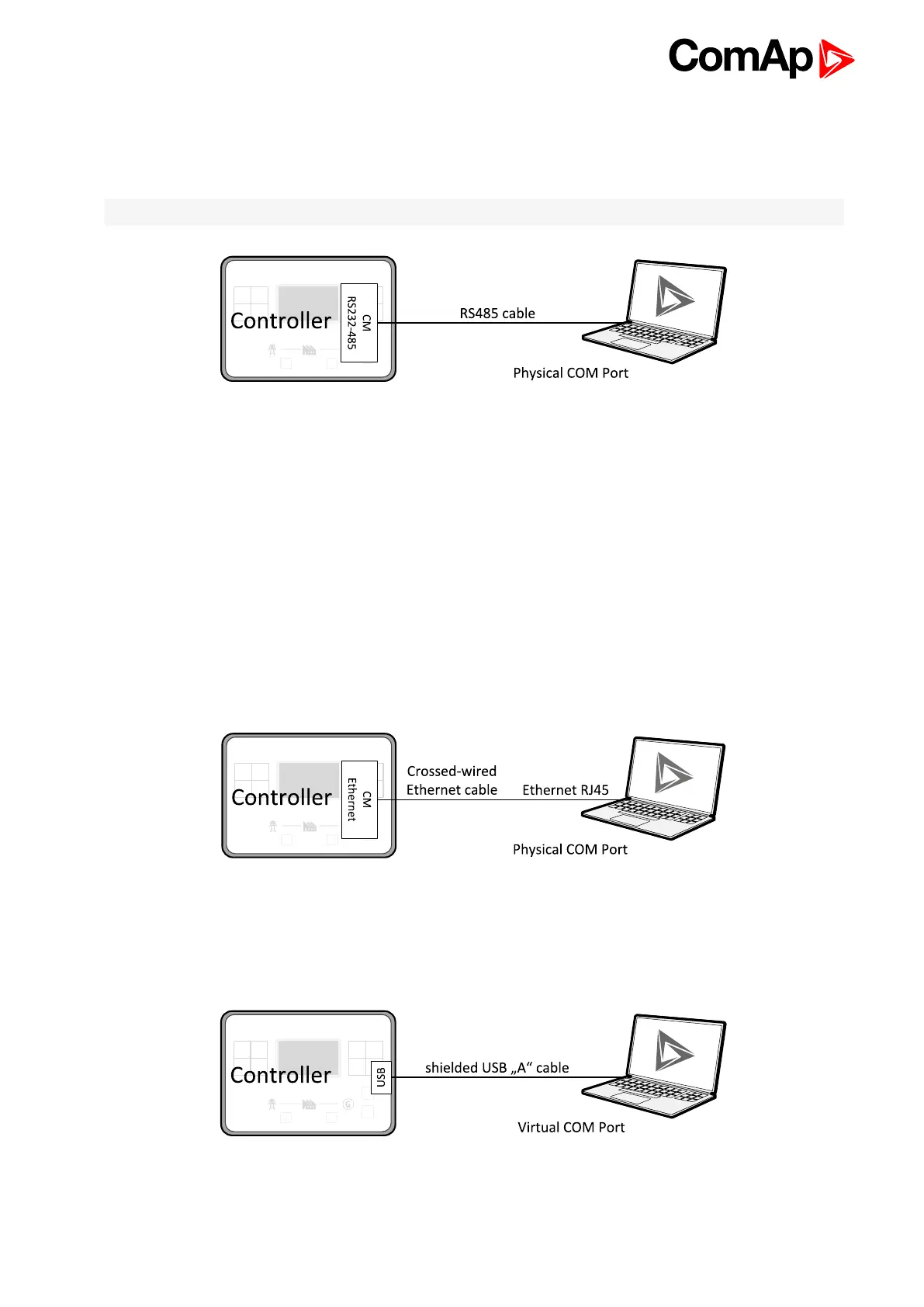

Image 6.3 RS485cable is used
Connection via Ethernet
A plug-in communication module CM-Ethernet is necessary for ethernet connection.
The module is plugged into the slot located on the rear side of the controller. To find more information about
installation of the modules see Plug-in module installation on page 41.
This connection type is used for communication with the controller from LiteEdit2015 or any other PC tool. This
connection can be used regardless of AirGate is switched on or off. Only three remote clients can be connected
at the same time (via AirGate only two remote clients at the same time).
To connect your PC tool to the controller use the INTERNET connection type and just put the CM-Ethernet IP
address into the gen-set address box in the PC tool. If you do not use the default ComAp TCP Port (page 338) 23,
then you also have to specify the port number using a colon.
Image 6.4 Ethernet cable is used
Connection via USB
USB interface uses HID profile.
Image 6.5 Shielded USBtype A cable is used
6 back to Communication
