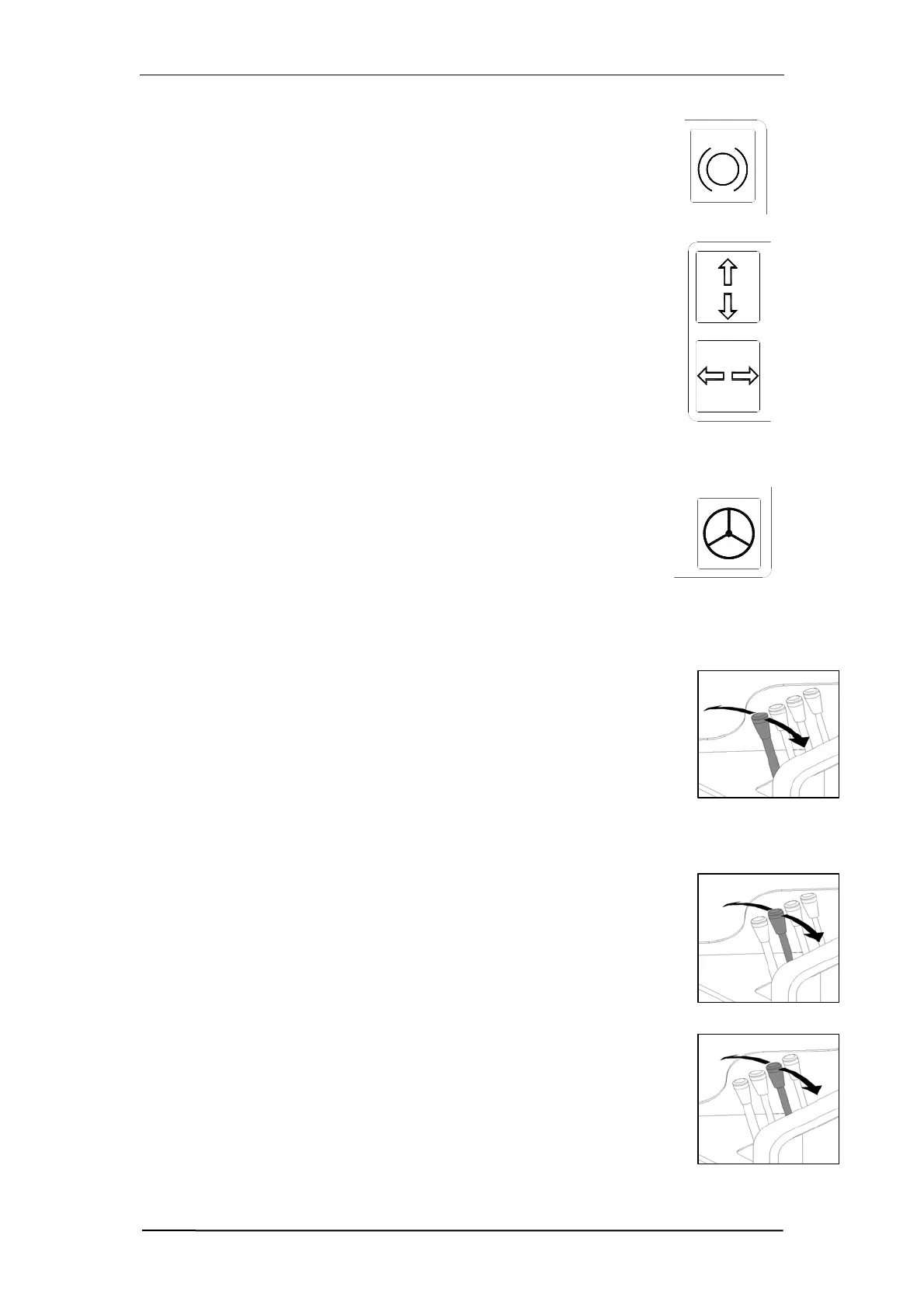

Parking Brake Indicator Light
 The Parking Break indicator light indicate whether the
brake is “ON” or “OFF”
Mode Indicator Lights
 The Mode indicator lights indicate which mode of travel
the machine is in.
 If the machine is in normal mode, then the normal mode
indicator light will illuminate
 If the machine is in sideward mode, then the sideward
mode indicator light will illuminate
 Note: Modes of travel are covered in more detail in
section 3 of this manual
Carousel Indicator Light
 The carousel indicator light is only used when the
machine is in sideward mode.
 When the front wheels are steered in to a certain
position, the carousel indicator light will illuminate. It is at
this point that the carousel mode is activated and the
machine can turn on its own axis.
 To deactivate the carousel the operator simply steers
the wheels out of the carousel position
Lift Control Lever
 The lift control lever controls the lift function of the Mast.
 To raise the forks, PULL the lever BACK
 To lower the forks, PUSH the lever FORWARD
Tilt Control Lever
 The tilt control lever controls the tilt function of the Mast.
 To tilt the mast forward, PUSH the lever FORWARD
 To tilt the mast backward, PULL the lever BACKWARDS
Sideshift Control Lever
 The Sideshift control lever controls the sideshift
function of the forks.
 To shift the forks left, PUSH the lever FORWARD.
 To shift the forks, right, PULL the lever
BACKWARDS.
P
Sideward
Mode
Normal
Mode
