Combilift Ltd C2500-C3000CB O&S Manual
1-6
C2500CB-OM-EN-11

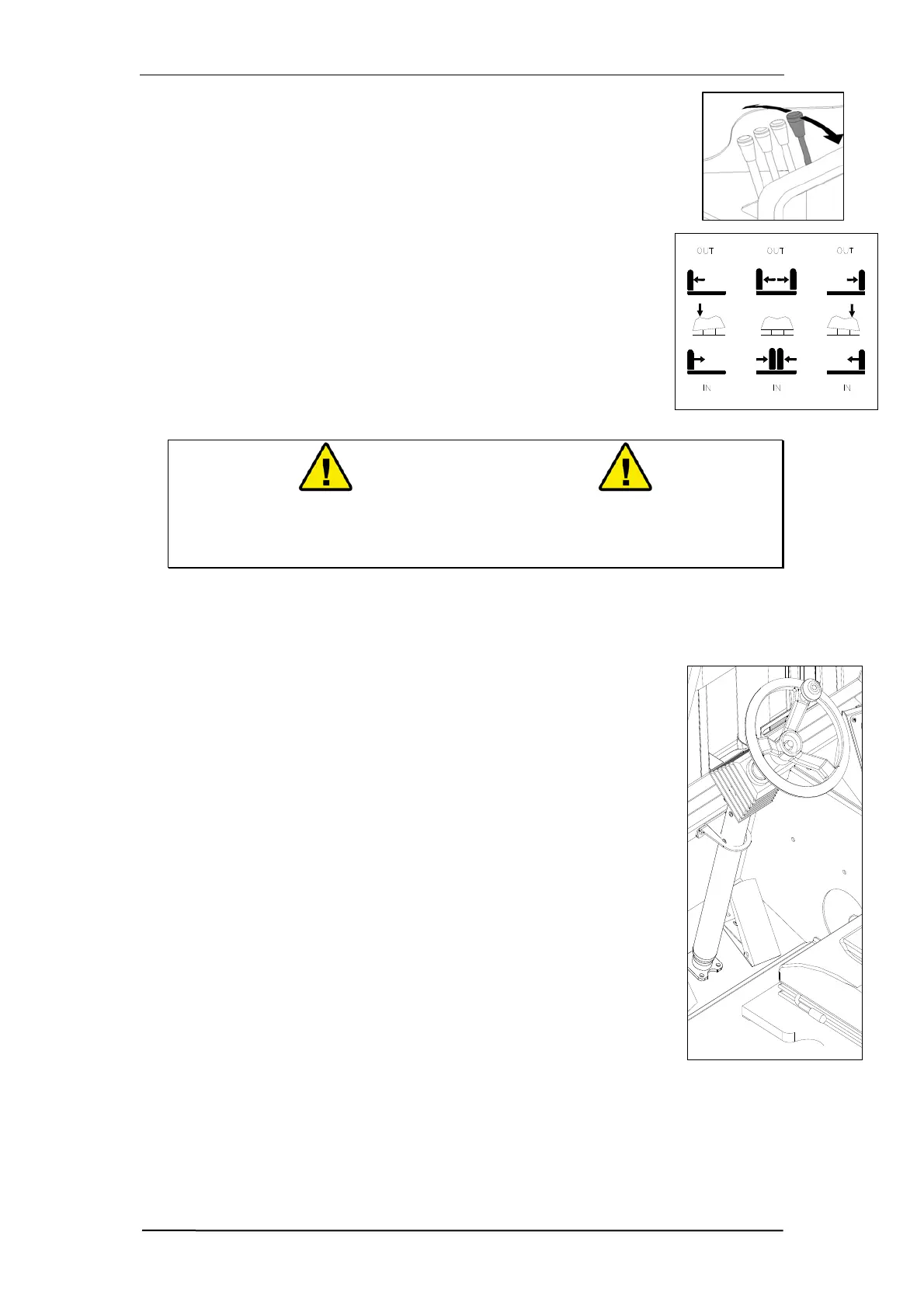

Fork Positioning Control Lever
This lever controls the position of the forks on the mast
carriage. The forks can be controlled simultaneously or
individually by use of this lever.
Push lever forward to position both forks outward, pull
lever back to position forks inward.
Depress left button on top of lever to control left fork.
Push lever forward to position left fork outward. Pull
lever back to position left fork inward.
Depress right button on top of lever to control right fork.
Push lever forward to position right fork outward. Pull
lever back to position right fork inward.
IMPORTANT
A new truck capacity plate MUST be obtained from Combilift Ltd to reflect
the new maximum load capacity when ANY attachment is fitted. Only
attachments approved by Combilift Ltd personnel should be fitted.
Steering
All models have both front and rear-end steering.
When in forward mode the front wheels are fixed and the
rear wheel steers the truck.
Rear-end steering allows sharper turns in confined areas but
demands greater driver care when turning.
When in sideward mode, the rear wheel is fixed and the
front wheels steer the truck.
When driving forwards, turn steering wheel clockwise to turn
truck clockwise, turn steering wheel anticlockwise to turn
truck anti clockwise.
When driving in reverse, turn steering wheel clockwise to
turn truck anticlockwise, turn steering anti clockwise to turn
truck clockwise.
When driving sideward to the right, turn steering wheel
clockwise to turn truck clockwise, turn steering wheel
anticlockwise to turn truck anticlockwise.
When driving sideward to the left, turn steering wheel
clockwise to turn truck clockwise, turn steering wheel
anticlockwise to turn truck anticlockwise.
The steering wheel is also equipped with a spinner knob for
easier steering.
