Adding a Loop board inside panel 41CPE118
CAUTION: ALWAYS cut off the mains (230 V) and backup (battery) power for the panel when adding or
removing a Loop expansion.
Modulo I/O

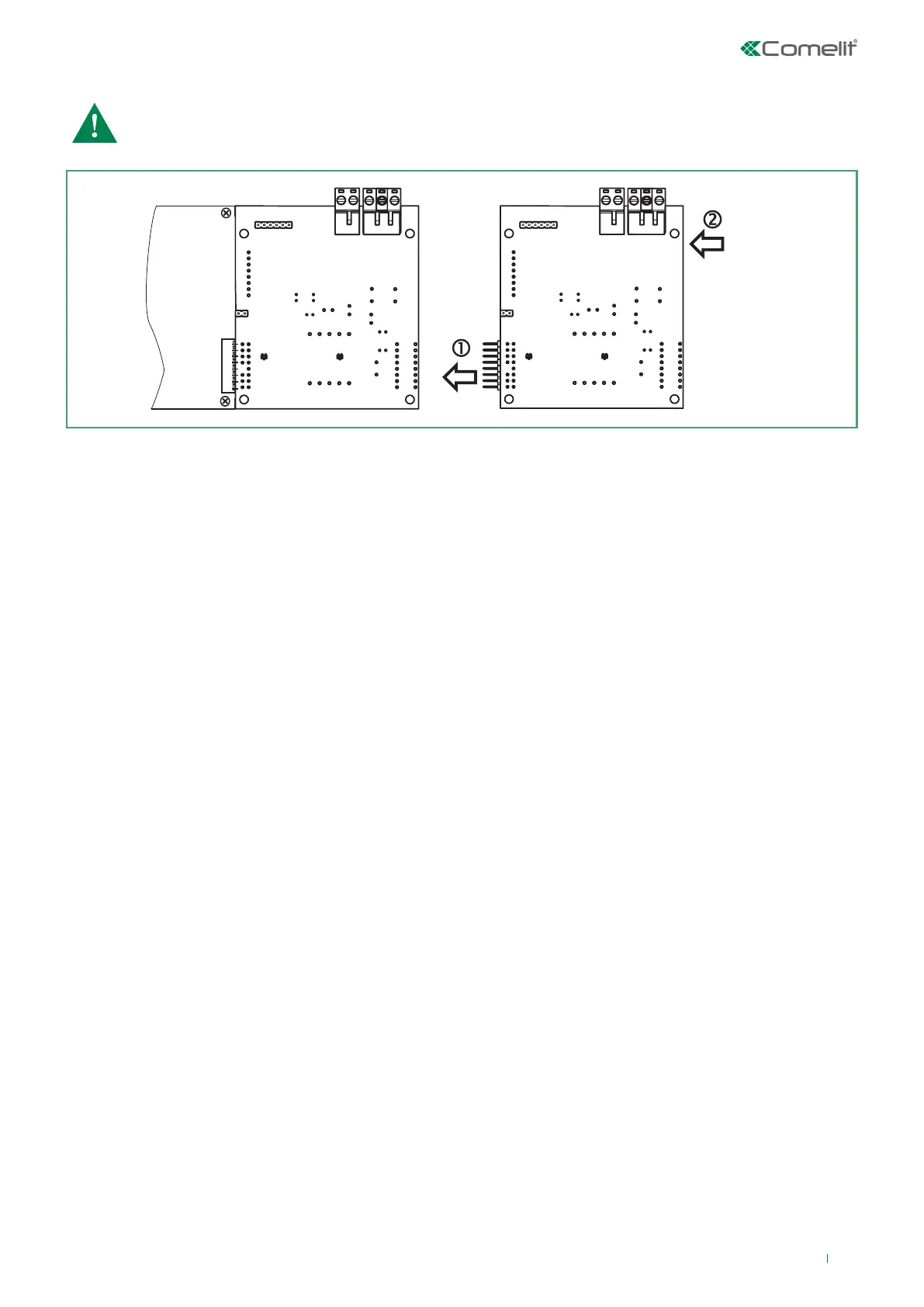

1. Insert the connectors on the second Loop expansion into the terminal on the first.
2. Secure the second Loop board to the metal frame using the screws provided.
N.B.: The third and fourth expansion boards are added in the same way, as illustrated in the figure.
First Loop expansion Second Loop expansion
