4.3 DEVICES
Fire panel 41CPE118 supports periphery and loop devices.
All “functional modules” connected to the panel configuration (power supply unit, loop expansion...) are called Periphery
Devices, and have special programming and settings. The main motherboard is not a periphery device.
All addressable devices connected to the Loop expansions are called Loop Devices.

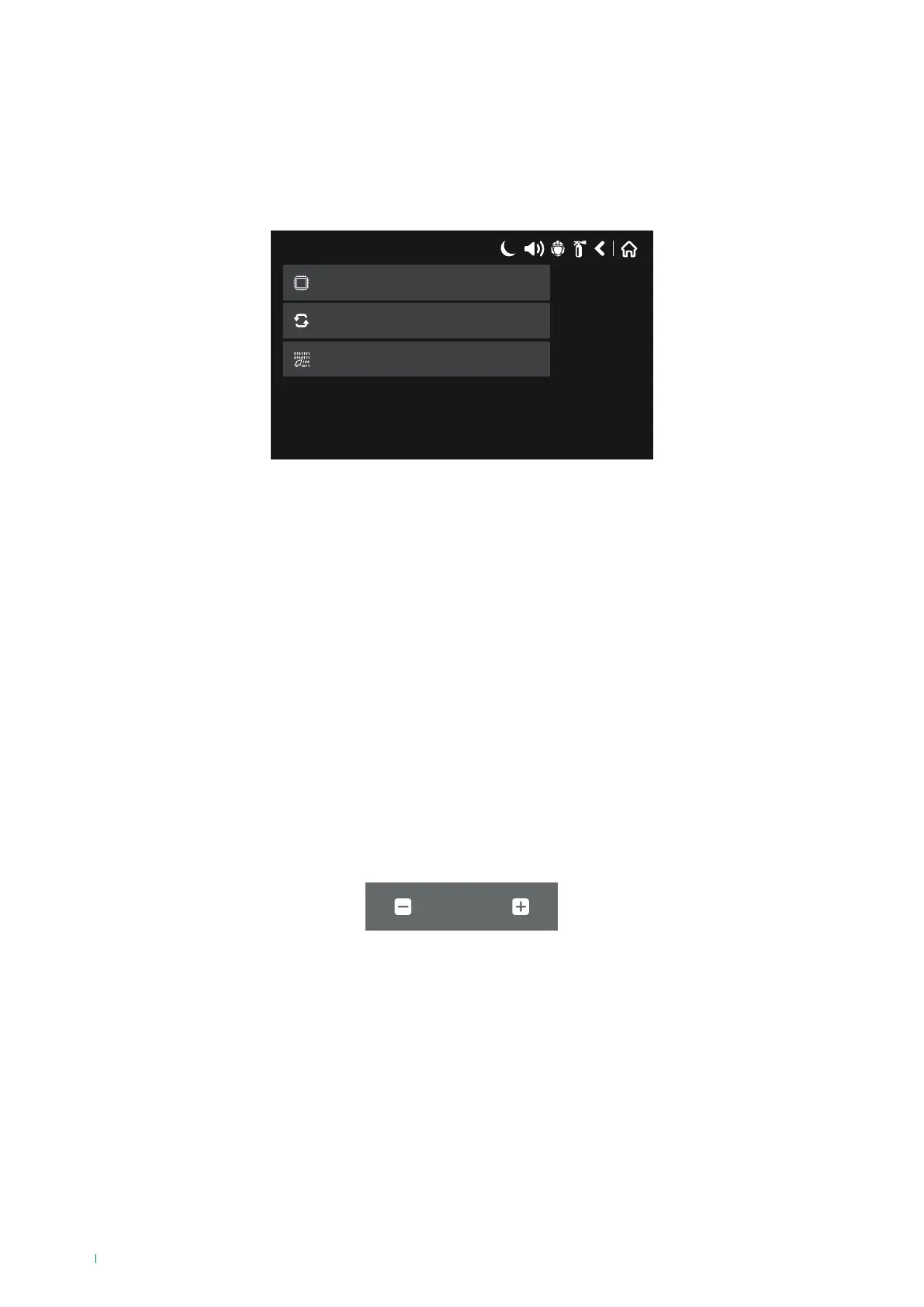

On pressing “Devices”, the user / installer enters the menu used to select the device type:
17/06/2020 14:06
Silence Buzzer
Delay Override
System
Loop
Addressing
Periphery
4.3.1 PERIPHIERY DEVICES
The “Periphery” buttons is used to access the submenu for selecting and setting the parameters for the periphery devices in
the panel configuration.
The panel supports up to 10 periphery units:
• PSU (Main power supply unit)
• OUT (Module with 4 monitored outputs, 4 relay outputs and 4 monitored inputs)
• LOOP (First Loop expansion)
• EMPTY (If there are no peripheries at the current address)
Physical periphery device address
The panel can work with up to 10 periphery devices, addressed from 1 to 10. The main power supply unit always acquires
address 1, then the output module is addressed (address 2) and then, in an automatic progressive sequence from the first free
address, the loop expansions are addressed.
The address of the next / previous device can be viewed by pressing the navigation buttons:
17/06/2020 14:06
Battery Voltage
Charger Voltage
Charger Current
Panel Consumption
Software Revision
External PSU Check
13.2 [V]
13.6 [V]
0.1 [A]
0.3 [A]
2.6
OFF
NORMALStatusPSU
Periphery Device
1
26
