Comelit 41CPE118 - Connecting the LAN

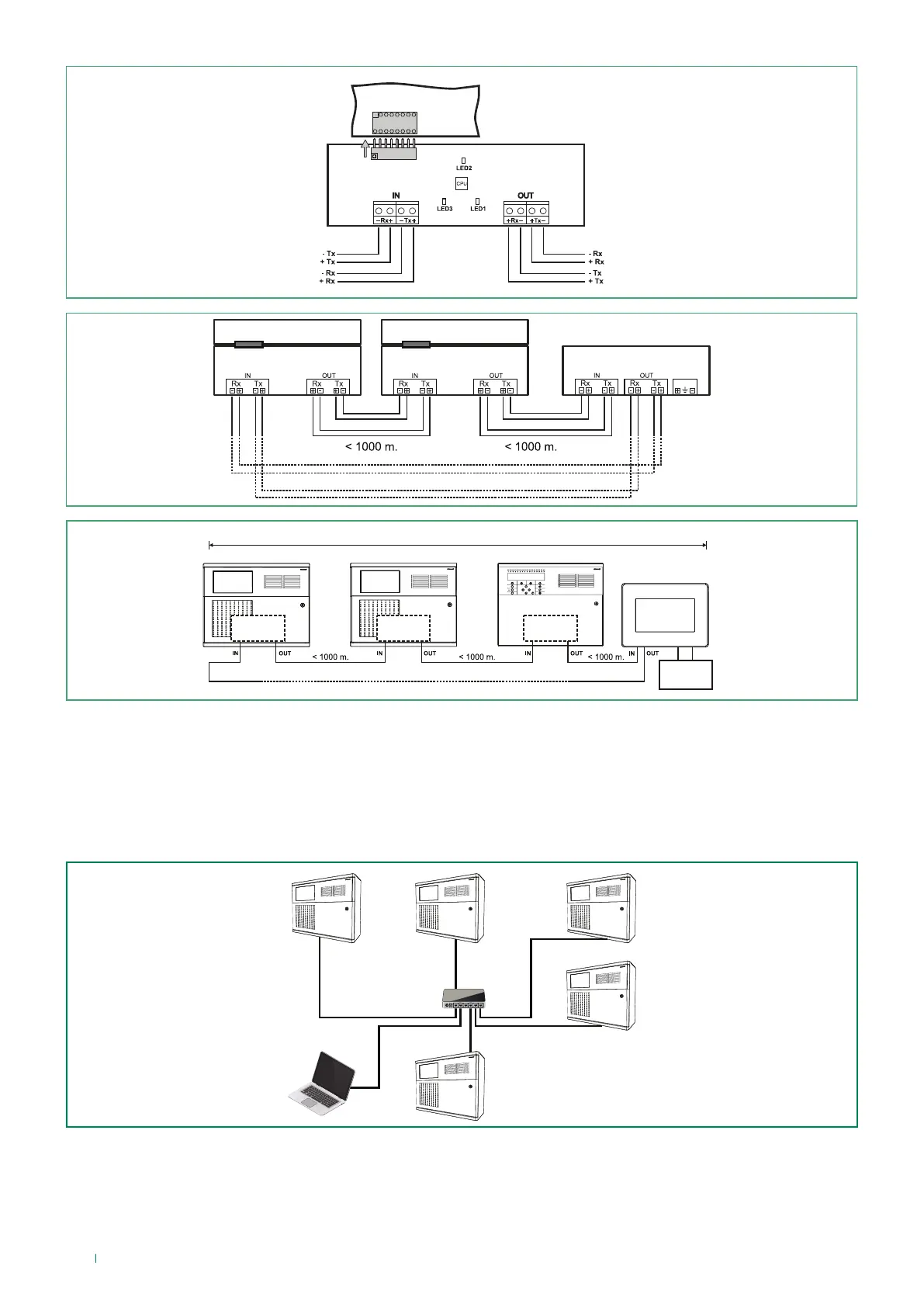

41ECB000
FIRE / EVAC INTERFACE
MODULE
41CPE118
FIRE PANEL
41CPE112
FIRE PANEL
41CPR100
REPEATER PANEL
REDUNDANT BUS
MODULE 2
REDUNDANT BUS
MODULE 1
41CPE118 41CPE118 41CPE112
41CPR100
UP TO 64 PANELS IN A REDUNDANT NETWORK
41ECB00041ECB00041ECB000
24 VDC
External
power supply
3.10 CONNECTING THE LAN
Up to 64 fire panels 41CPE118 can be connected in a LAN connected to a switch; using TCP / IP protocol and via a supervisor
PC, the status of the individual fire detection panels can be monitored and commands executed for them.
To use the LAN module, the installer must set the panel Network Type as “LAN”, see Network Settings menu.
The Ethernet port used for LAN cable connection is located on the motherboard inside the front door of the panel.
20
