3.11 REPEATER PANEL 41CPR100 (optional)
Repeater panel 41CPR100 makes it possible to receive all indications originating from the system, and to execute all the
commands, even those furthest away from the panel, when operators are not able to physically access the panel. It has a 7"
resistive colour touchscreen display, which reproduces the same user interface that appears on panel 41CPE118. Maximum
number of panels that can be connected on the RS485 network or TCP/IP LAN: 64. Direct commands for Silence buzzer,
Silence alarm, Reset, Evacuate and Test Indications.

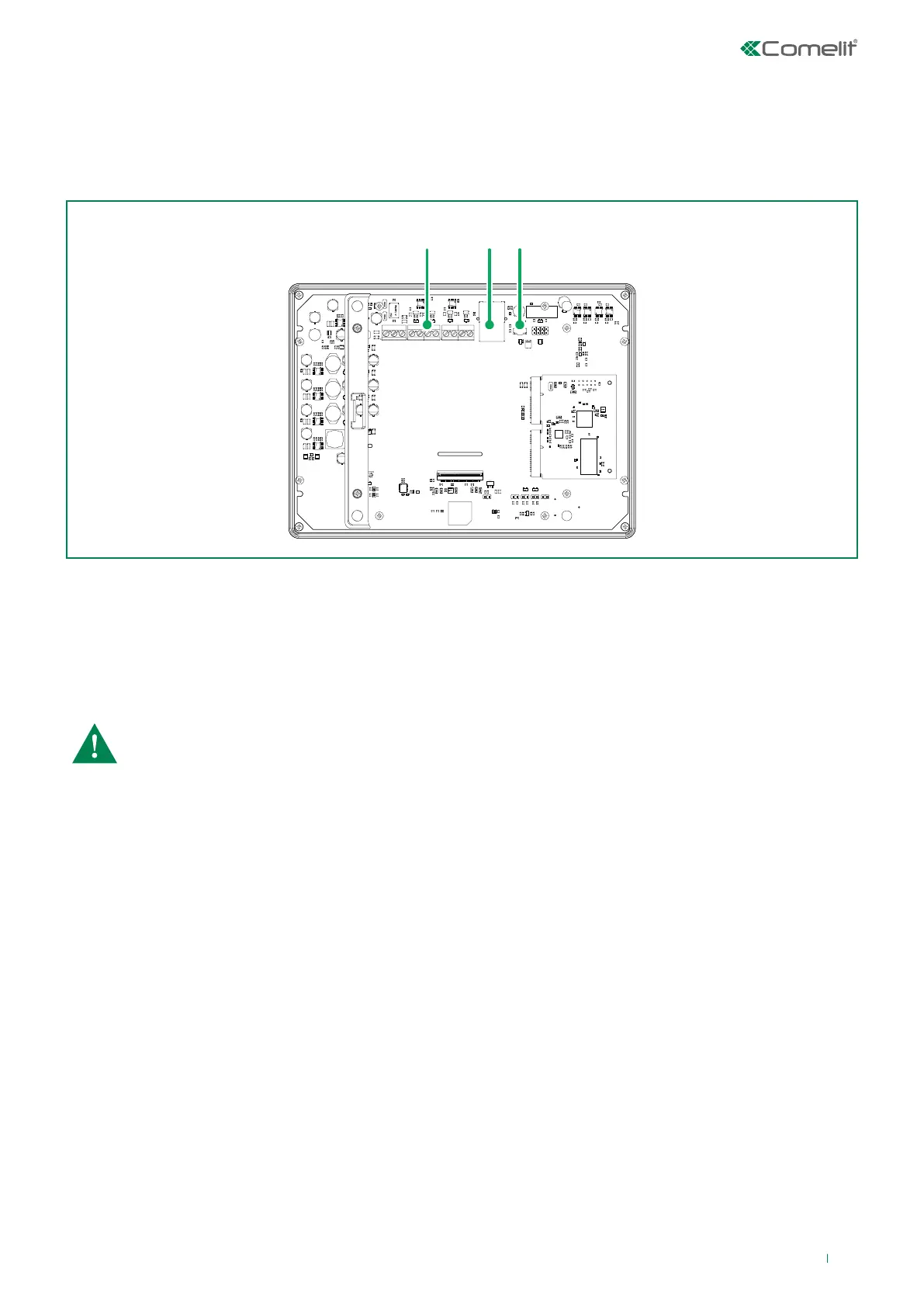

1. Terminal block 41CPR100:
◊ IN – RS485 input for connection to the panel(s);
◊ OUT – RS485 output for connection to the panel(s);
◊ Power - Repeater panel power supply - 24 VDC;
2. ETH – Ethernet port for connection in TCP/IP LAN with the panel(s);
3. Micro USB - Micro USB for programming and updating firmware.
CAUTION: When connecting to the network (RS485 / LAN) with fire panels 41CPE118 or 41CPE112, please
refer to the previous paragraphs.
MOUNTING KIT FOR 41CPR100
The 41CPR100 repeater panel is supplied as standard with the surface mounting kit. Furthermore, the repeater panel can be
flush-mounted or mounted on a desk base using the optional mounting kits. Details for the optional kits are as follows:
• 41KPR101: Desk base kit, consisting of a desk base that can be adjusted between 2 positions, cap and 2 plastic fixing
backplates.
• 41KPR102: Flush mounting kit, consisting of an outer frame and 4 backplates to secure the structure.
41CPR100 technical / electrical specifications
• Main power supply: 24±4 V DC
• Maximum consumption: 220 mA
• Communication: RS485 / LAN
• Display: 7” Resistive colour touchscreen
• Maximum terminal cross-section: 0.4 – 2.5 mm²
• Operating temperature: from -5°C to +50°C
• Weight: 0.77 kg
• Protection rating: IP 30
• Panel dimensions (LxHxD): 227 x 166 x 38 mm
• Display dimensions: 155x86
• Colour: housing - white RAL 9002; frame - black
