Commend GE 300 - Network Connectivity; Subscriber Card Connections

4. Cabling GE 300
16 3.3/0518

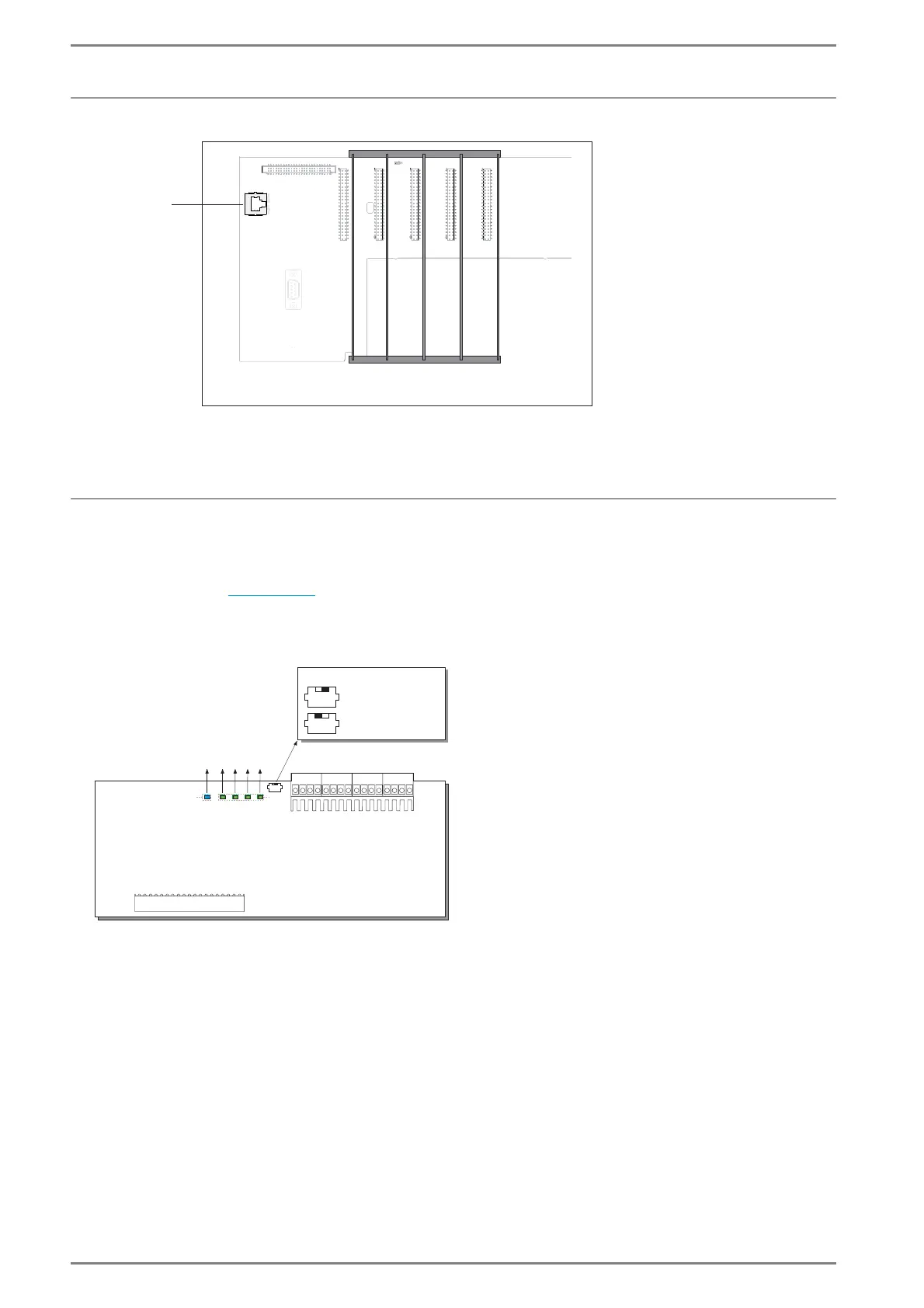

Connection to the network
Connection of the Intercom server to the network
Connection subscriber cards
 Digital and analogue Intercom terminals are connected directly to the subscriber cards.
 With IP subscribers the communication to the Intercom Server is carried out via the “Uplink” socket
of the G3-GEM (see page 16
).
4-wire subscriber cards G3-GET-4
Overview 4-wire subscriber card G3-GET-4
LED1
Uplink
Slot 1 Slot 2 Slot 3 Slot 4 Slot 5
GE 300
G3-GEM
Connection to
networ
k / switch
AAAABBBB
CCCC
DDDD
Status subscriber card
Subscriber 1
Subscriber 2
Subscriber 3
Subscriber 4
Switch for 0 dBm input:
Status LEDs
Sub.1 Sub.2 Sub.3 Sub.4
Subscriber 1 normal
Intercom
Subscriber 1 for
feed in of AF
blue
green
