LED-status indication GE 300
32 3.3/0518

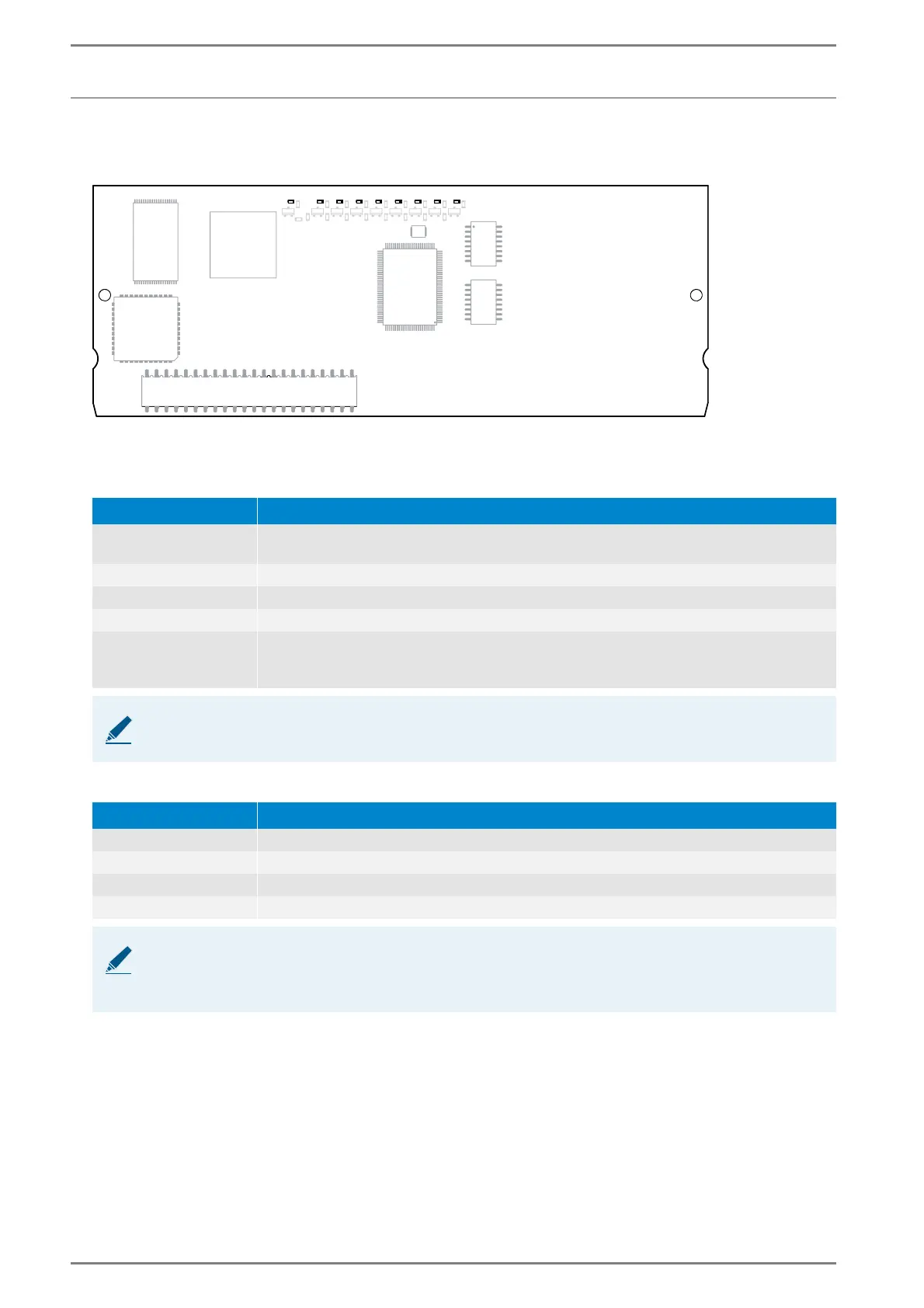

VoIP card G3-IAX
Interface card to integrate VoIP standards via an IAX-capable VoIP Server. The card thereby offers a
flexible VoIP interface for IAX connections, e.g. to G8-VOIP-SERV.
VoIP card G3-IAX
LED status indication “RUN”
LED status indication “S1” to “S4”
LED-status Description
LED is blinking in a one
second rhythm
The card is working correctly
LED is permanently off No power, warm start or hardware fault
LED is permanently on Waiting for connection to the main processor (during initialisation)
LED is blinking fast Card in the wrong slot or during firmware download
LED is blinking in
rhythm definition error
“short - short - long“
Card with wrong hardware feature level inserted (e.g. card “G3-IP-4B” inserted in slot
which is configured for “G3-IP4C”)
NOTE: Only LED “S1” is controlled
Only the status LED “S1” is controlled on the card G3-IAX.
LED-status Description
LED is permanently off No connection to VoIP-Server
LED is permanently on Connected to VoIP-Server
LED is blinking No connection to VoIP-Server configured
LED is flickering During data transmission
NOTE: Channel LEDs
G3-IAX-4: “S5” to “S8” no function
G3-IAX-2: “S3” to “S8” no function
RUN S1 S2 S3 S4 S5 S6 S7 S8
