4. Cabling GE 300
18 3.3/0518
Output card G3-16A

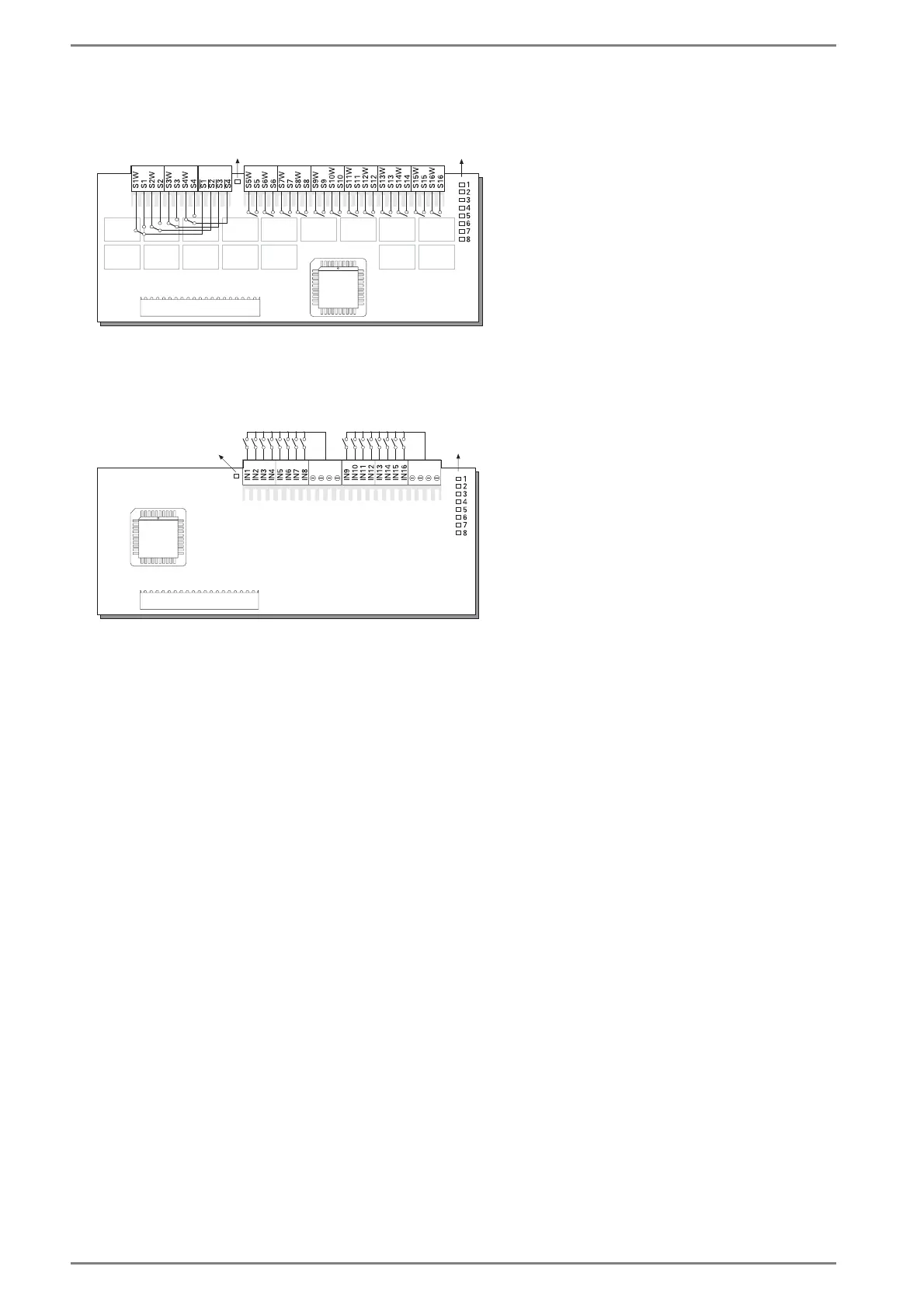

Overview output card G3-16A
Input card G3-16E
Overview input card G3-16E
Status LEDs
for S1 - S8
Status indication
output card
Status LEDs
for IN1 - IN8
Status indication
input card
