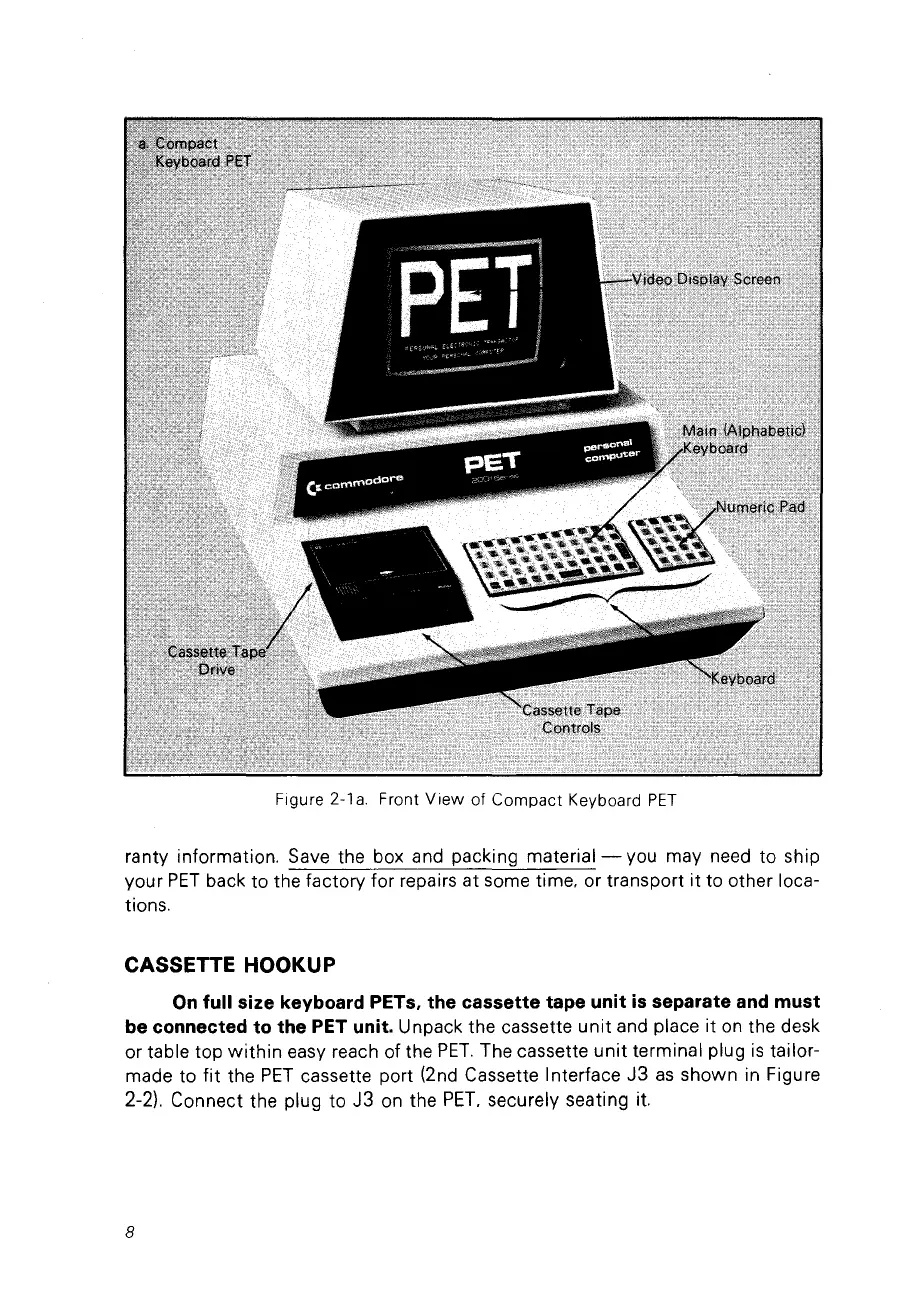

Figure 2-1 a. Front View of Compact Keyboard PET
ranty information. Save the box and packing material- vou may need ta ship
your
PET back ta the factory for repairs at some time. or transport it ta other loca-
tions.
CASSETTE HOOKUP
On full size keyboard PETs. the cassette tape unit is separate and must
be connected to the PET unit. Unpack the cassette
unit and place it on the desk
or table top
within easy reach of the PET. The cassette unit terminal plug is tailor-
made ta
fit the PET cassette port (2nd Cassette Interface J3 as shawn in Figure
2-2). Connect the plug ta J3
on the PET. securely seating it.
8
