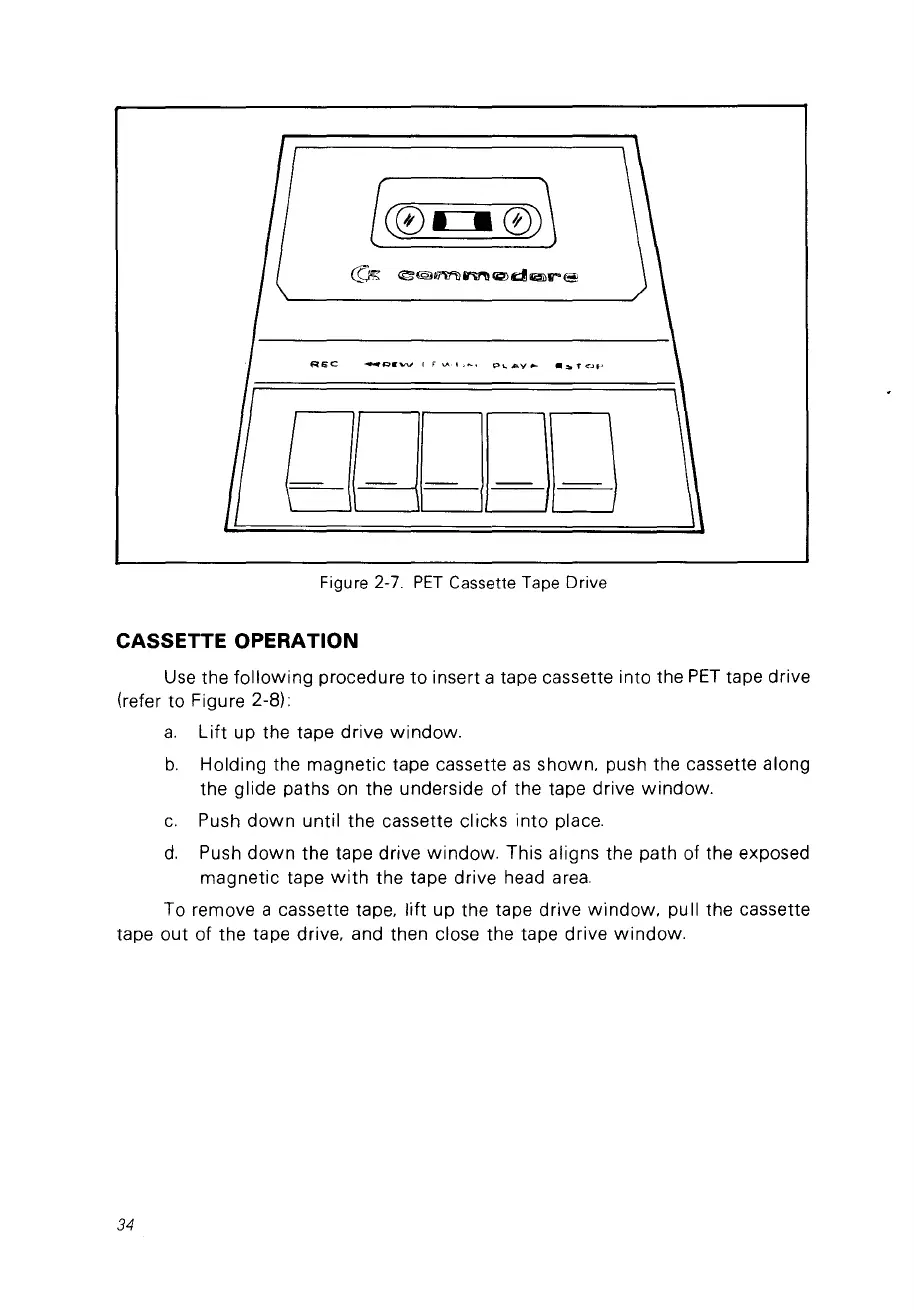

Figure
2-7.
PET
Cassette
Tape
Drive
CASSETTE OPERATION
Use the
following
procedure
to
insert a tape cassette into the
PET
tape drive
(refer to Figu
re
2-8):
a.
Lift
up the tape drive
window.
b.
Holding the magnetic tape cassette
as
shown. push the cassette along
the glide paths on the underside of the tape drive
window.
c.
Push
down
until the cassette clicks
into
place.
d.
Push
down
the tape drive
window.
This aligns the
pa
th of the exposed
magnetic tape
with
the tape drive head
area.
To remove a cassette tape.
lift
up the tape drive
window.
pull the cassette
tape out of the tape drive. and then close the tape drive window.
34
