ComNav Marine 1420 Autopilot System
Rotary Rudder Feedback Installation
If you have a 1420 Autopilot System with an Outboard Feedback, please go to page 19.
Select the following parts from the 1420 Autopilot package:
You may also need:
• one stainless steel band clamp to hold the Rudder Arm to the rudder post
• four screws: #10 size (5 mm), suitable length, to fasten down the Rudder Feedback
Install the Rudder Feedback in the stern of the vessel, close to the rudder post. Place the
Rudder Feedback so that it will be protected from objects which may shift position when
your boat is moving.

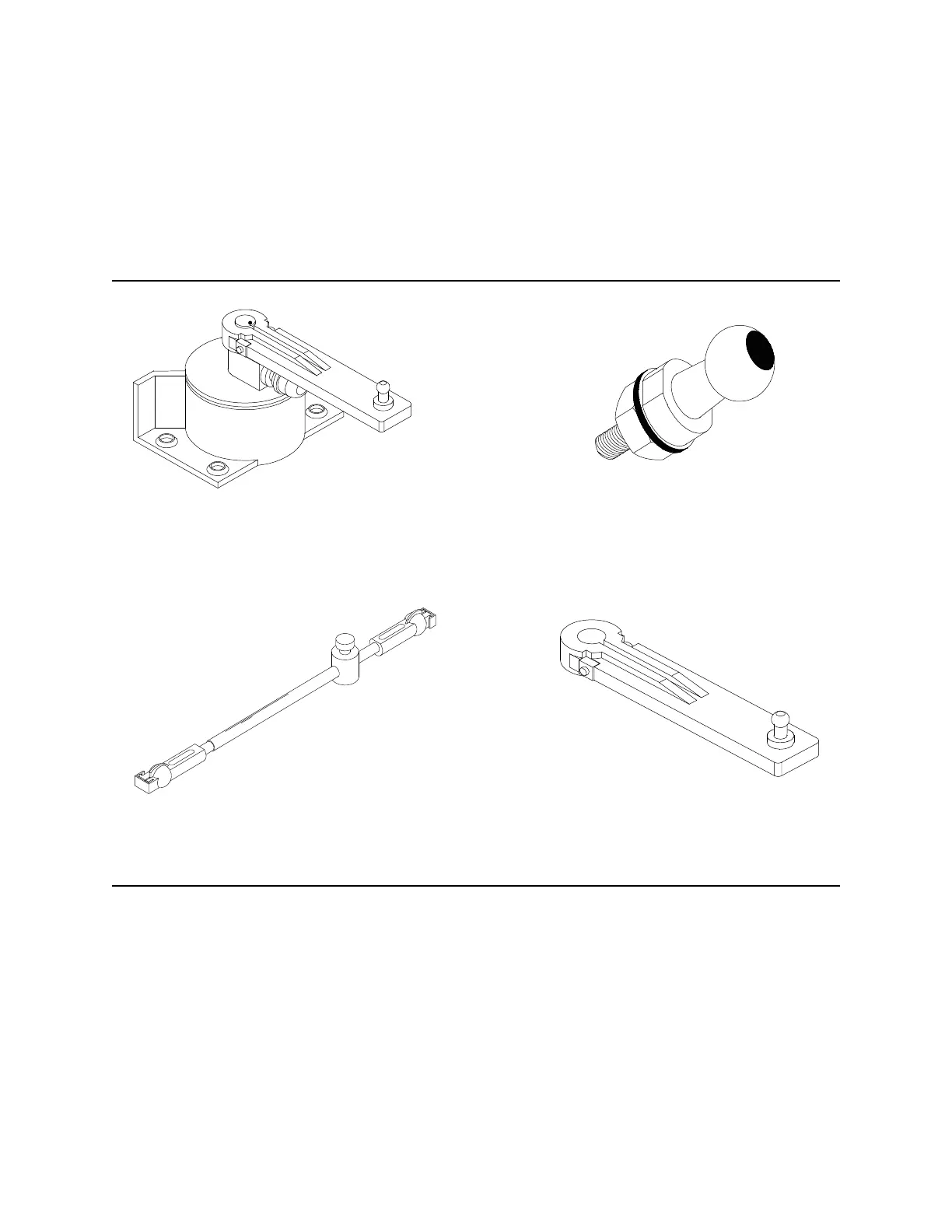

Brass Ball Joint
(Included with linkage)
PN 65520006
Rudder Feedback
PN 20030008
Linkage
Rudder Post Arm
PN 65520004
PN 65520051
Document PN 29010012 V1.3
