ComNav Marine 1420 Autopilot System
Wiring the Processor

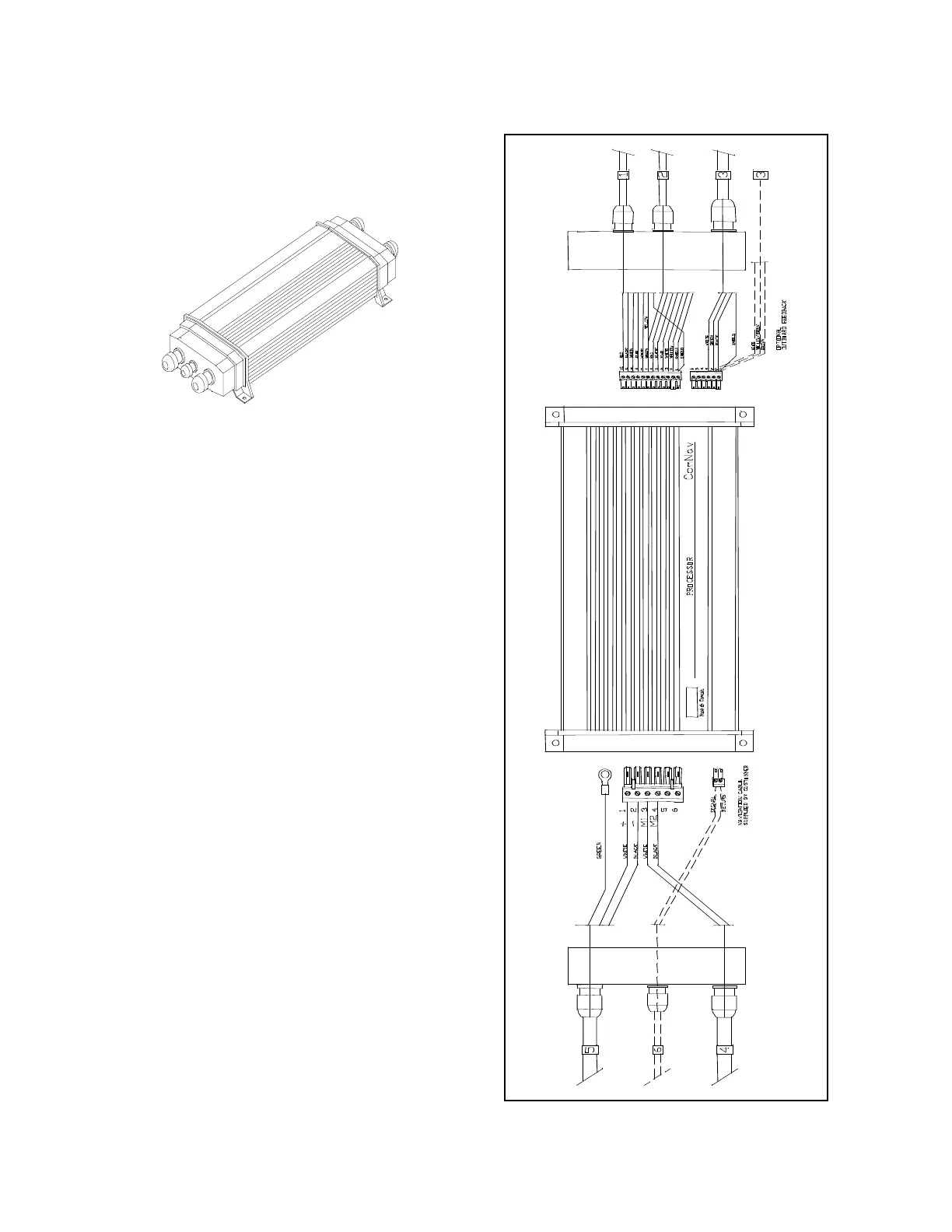

Place the Processor in front of you with
the lettering right side up. Remove the
four Phillips screws from each end.
Remove the end pieces of the Processor
enclosure.
Looking into the open ends of the
Processor you will see several green
terminal strips. These terminal strips are
mounted into sockets. You can remove
the terminal strips from the processor by
gently pulling them away from the end of
the Processor.
The terminal strips are labelled with
numbers corresponding to the wiring
diagrams on the following pages.
Document PN 29010012 V1.3
33
