ComNav Marine 1420 Autopilot System
Outboard Feedback Installation
If you have a Rotary Rudder Feedback, please go to page 16.
Introduction
The Outboard Feedback sends
information about the rudder or propeller
position to the 1420 Autopilot.
The Outboard Feedback can be attached
to the hydraulic steering cylinder by using
a stainless steel band clamp. A stainless
steel bracket attaches one end of the
Outboard Feedback to the steering
cylinder rod.
The Outboard Feedback is provided with
30 feet (9.1 m) of cable.
The Outboard Feedback can be used
with hydraulic cylinders from 1.25 to 2.25”
(3.18 to 5.71 cm) in diameter. The
cylinder stroke cannot exceed 10” (25.4
cm).

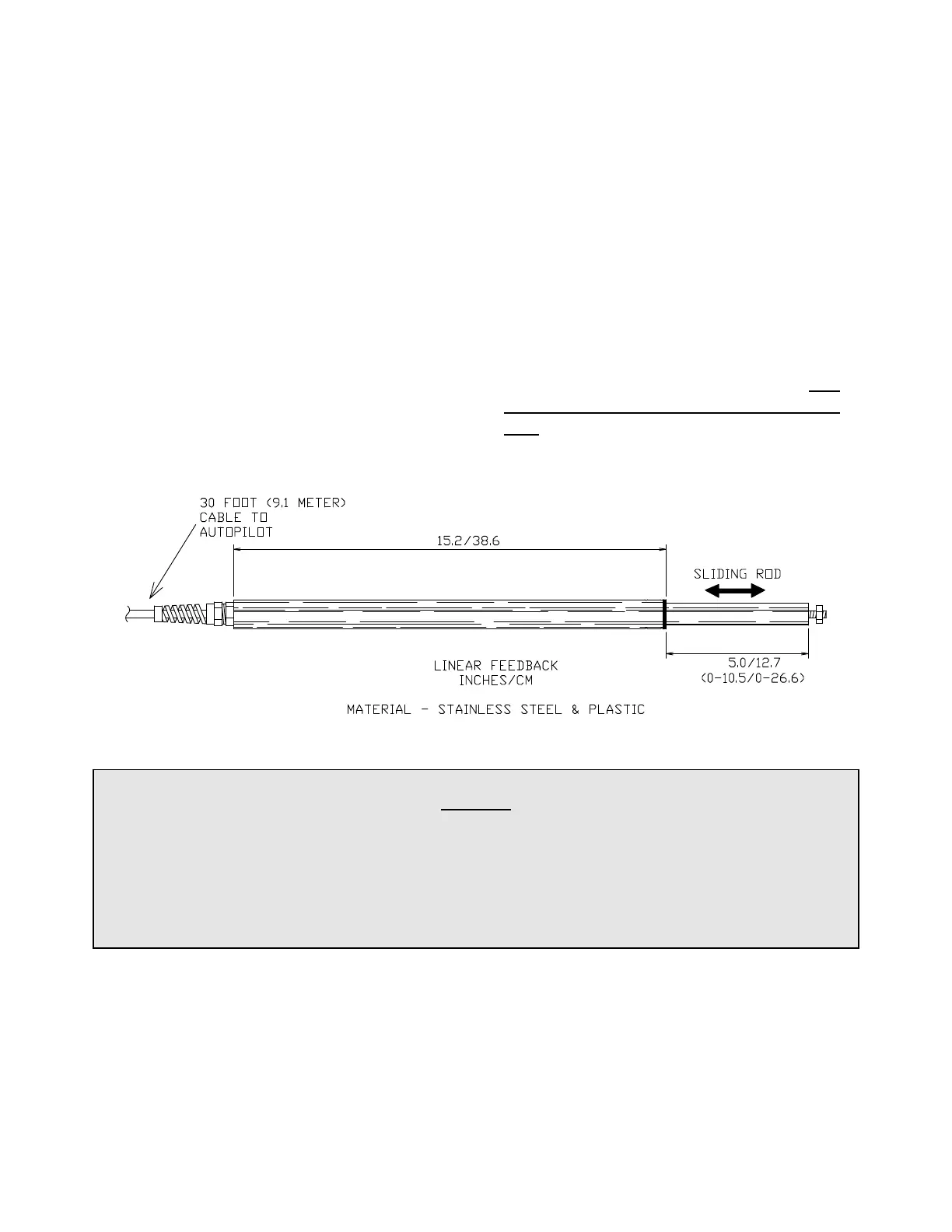

Outboard Feedback
Caution
The Outboard Feedback will be damaged if it is extended more than 10 inches. This
damage will not be covered by warranty.
If necessary the extended length of the steering cylinder can be limited using corrosion
resistant spacers as shown on page 22.
Document PN 29010012 V1.3
19
