ComNav Marine 1420 Autopilot System

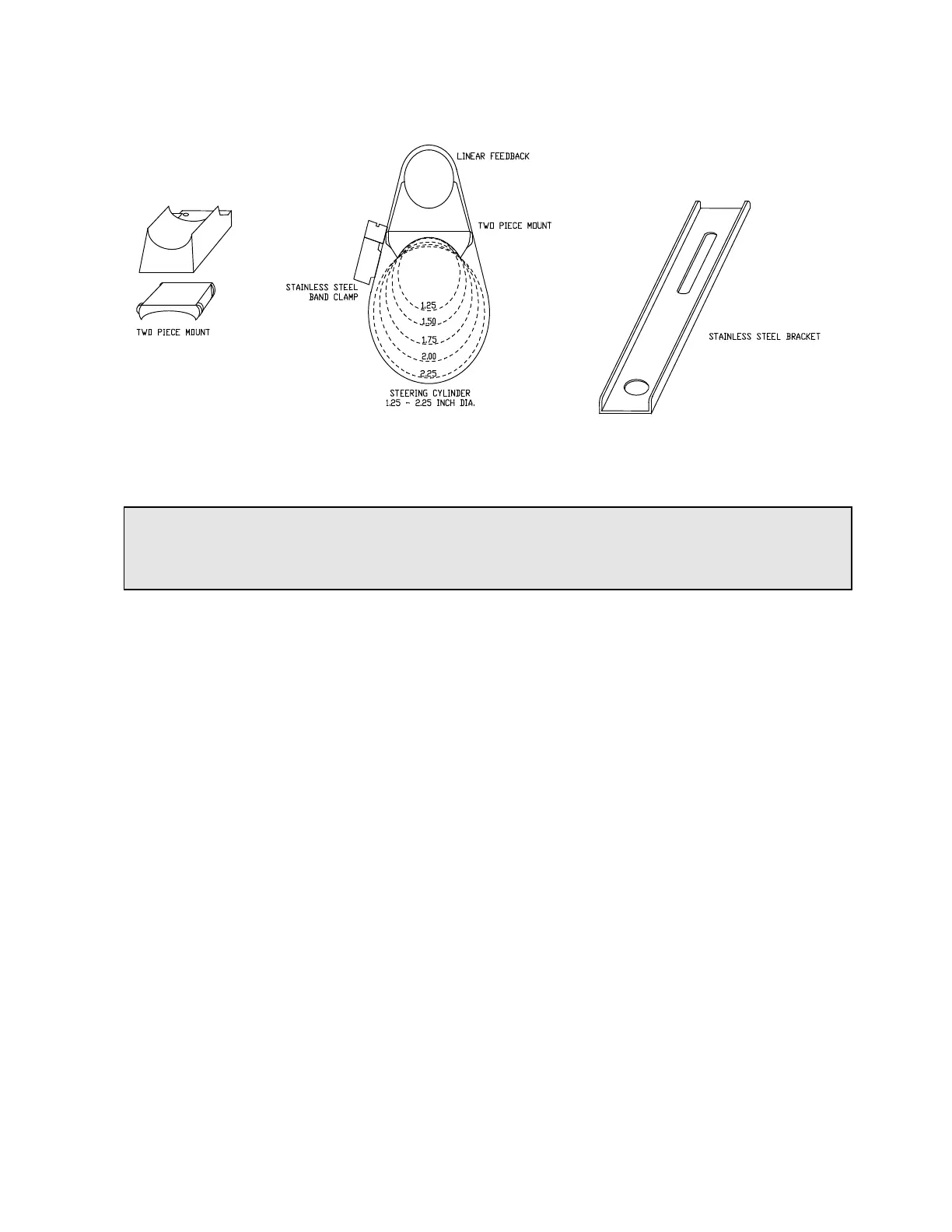

Mounting Hardware
Mounting
The Outboard Feedback may be
mounted with the sliding rod facing either
left or right.
Before you install the Feedback, move
the steering gear through its full range of
motion from one side to the other.
Measure the change in length of the
hydraulic steering cylinder rod. If the rod
extends or retracts more than 10” (25.4
cm), make spacers to limit the motion of
the steering system as shown on page
22.
Turn the motor so that it is centred
between the left and right limits of travel.
Use a tape measure or ruler to position
the Outboard Feedback rod so that it
projects 5.25” (13.3 cm) from the body of
the Outboard Feedback.
Loosely clamp the Outboard Feedback to
the tube of the hydraulic cylinder using
both pieces of the Two Piece Mount and
the Stainless Steel Band Clamp. The
Clamp should be positioned as close as
possible to the tube end where the cable
exits.
Remove the nut from the end of the rod of
the hydraulic cylinder. Place the
Stainless Steel Bracket over the threaded
end of the rod and replace the nut. Do
not completely tighten at this time.
Mount the Outboard Feedback so that it will not be damaged when the motor is tilted
for trailering.
Document PN 29010012 V1.3
20
