CompAir Classic 05 - Page 13

Service Tools required
Page 13
Introduction
25.00
8.00
220.00
90.00
Weld
Material mild steel bar.
Material mild steel bar.

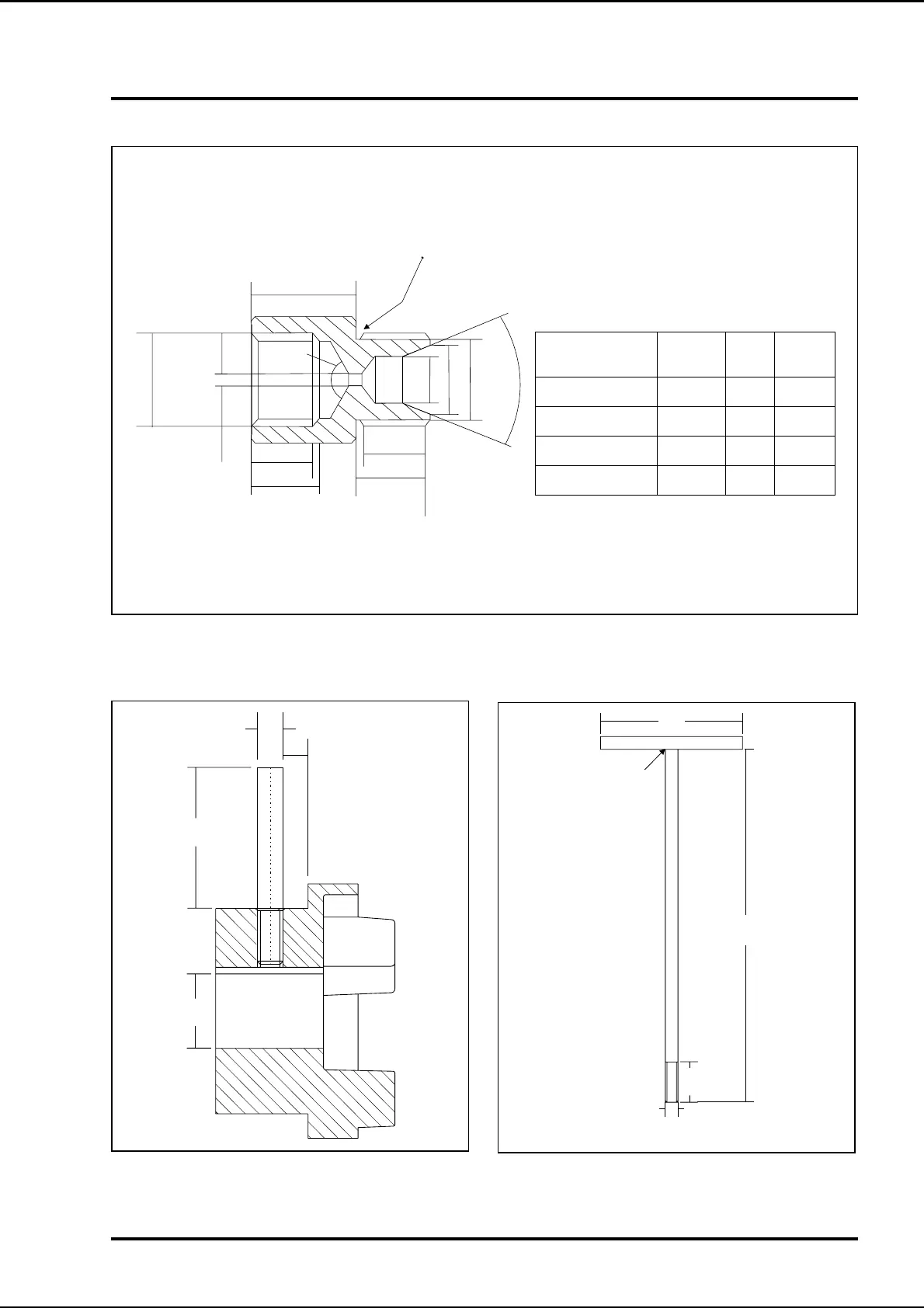

Service Tools (S97)
1.5 Wide undercut to base
of thread
1.5 Wide undercut to base
of
thread
120°
60°
9.0
3/8 BSP
3/8
BSP
Dia 'A' Ream
Tol:-±0.025
Dia 'A' Ream
To l
:- ± 0.025
12.0
12.0
18.5
36.0
Ø8
Ø13.7
3/8 BSP
3/8
BSP
Material EN1A
Material EN1A
Service Tools (Test Nozzle)
Nozzle orifice
Dia ‘A’
Model Bar C.F.M
3.52mm 705 7 29.0
2.69mm 705 10 23.6
4.03mm 707 7 38.0
3.11mm 707 10 31.5
45.00
85.00
16.00
15.00
Service Tools (S103)
