Armada MiniStation Removal and Replacement Procedures
6-3
6.3 Preparing the Armada MiniStation
for Disassembly
Before beginning removal and replacement procedures, follow these steps:
1. Turn the Armada MiniStation EX keylock counterclockwise to unlock it.
2. Undock the computer from the Armada MiniStation.
3. Disconnect the power cord from the wall outlet
1
(Figure 6-3).
4. Disconnect the power cord from the Armada MiniStation
2
.

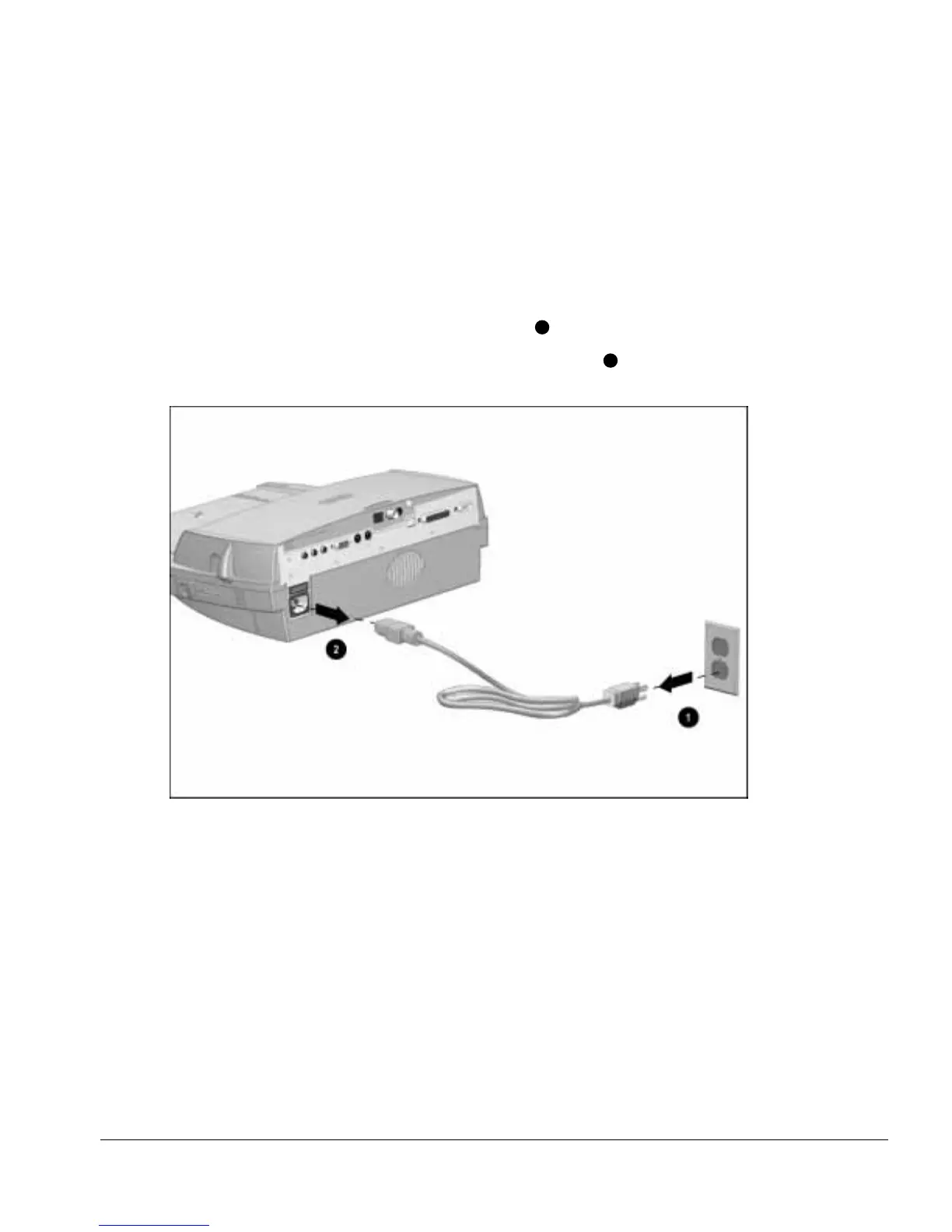

Figure 6-3.
Disconnecting the Armada MiniStation
5. Disconnect external devices.
6. If installed, remove the battery pack from the battery charging bay (Armada
MiniStation EX only).
7. If installed, remove the MultiBay device from the MultiBay (Armada
MiniStation EX only).
8. If installed, remove the PC Cards from the PC Card slots (Armada MiniStation EX
only).
