Compaq ArmadaStation - Miscellaneous Plastics Kit Components

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illustrated Parts Catalog
3-13
3.10 Miscellaneous Plastics Kit Components

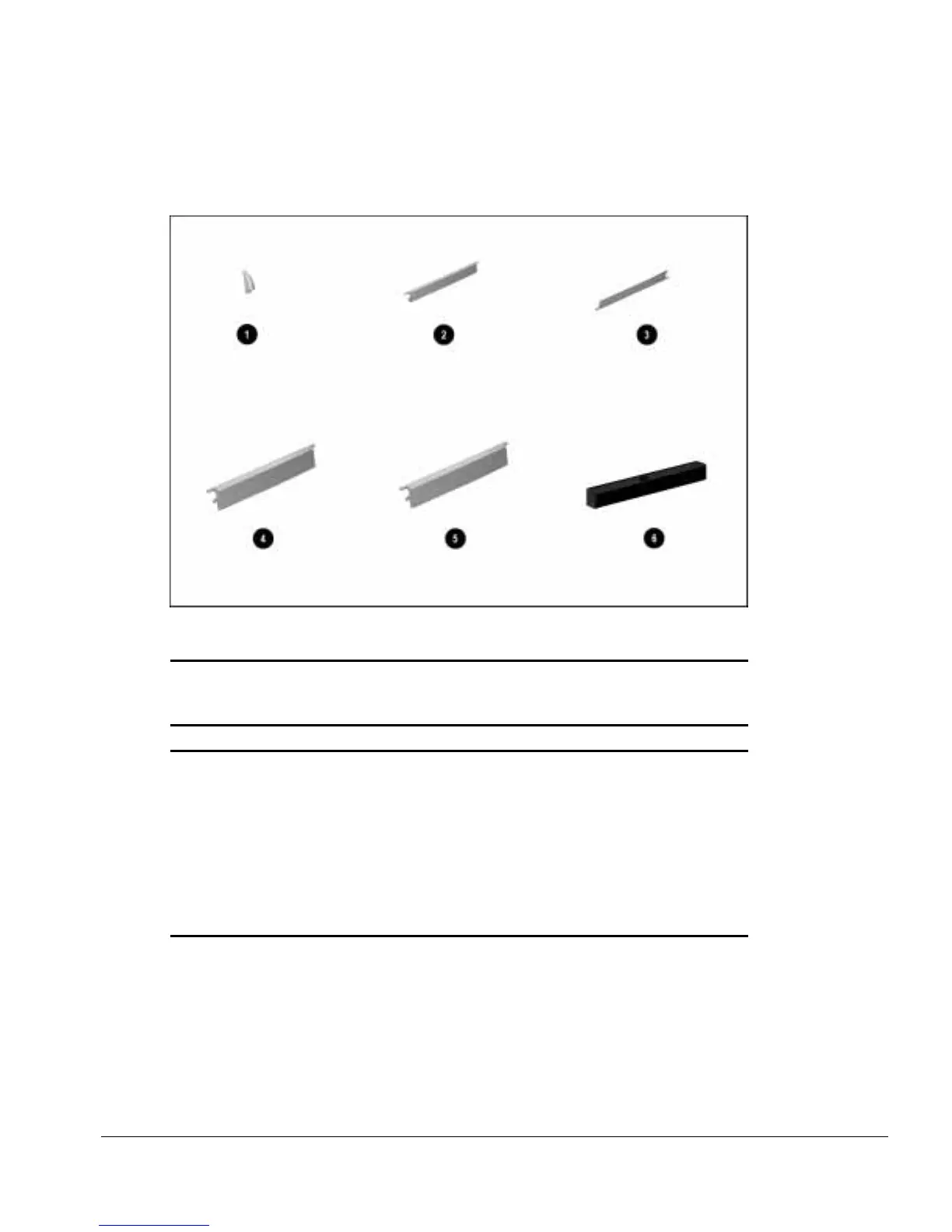

Figure 3-8.
Miscellaneous Plastics Kit Components
Table 3-12
Miscellaneous Plastics Kit Components
Spare Part Number 272135-001
Item Description
1
2
3
4
5
6
Docking latch knob
Top PC Card door (Armada MiniStation EX only)
Bottom PC Card door (Armada MiniStation EX only)
MultiBay charging bay door (Armada MiniStation EX only)
Battery charging bay door (Armada MiniStation EX only)
MultiBay connector guide (Armada MiniStation EX only)
PC Card door spring (2) (not illustrated)
MultiBay and battery charging bay door springs (2) (not illustrated)
Screws (2) (not illustrated)
