Compaq ArmadaStation - Alignment Tray Assembly

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-6
ArmadaStation Removal and Replacement Procedures
Alignment Tray Assembly
The alignment tray assembly is used to align the computer on the ArmadaStation. The
left side of the computer should be aligned with the left side of the alignment tray
assembly when docking the computer.
To remove the alignment tray assembly from the ArmadaStation, pull forward on the
docking restraint latch (Figure 5-6).

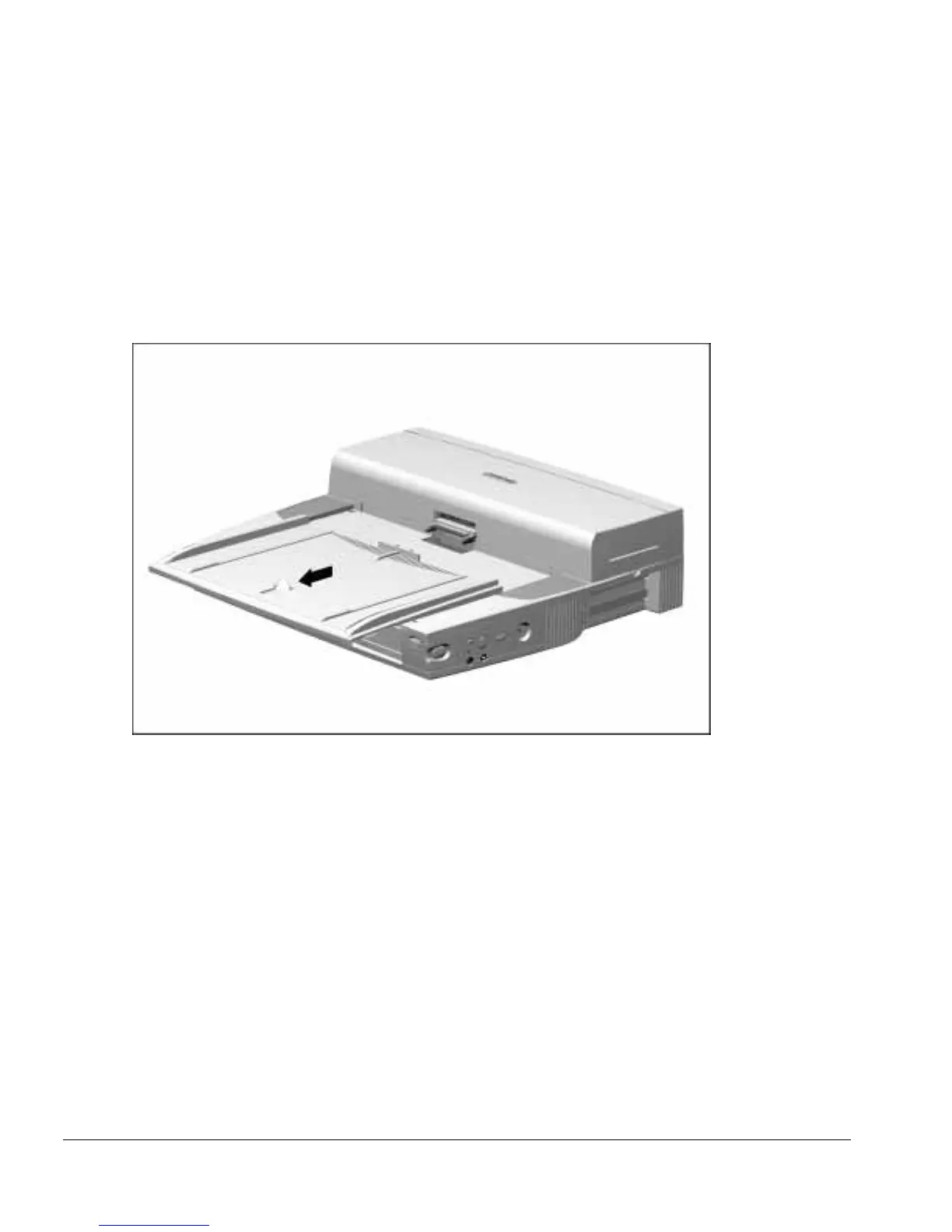

Figure 5-6.
Removing the Alignment Tray Assembly
