The external components and connectors on the rear panel of the Armada MiniStation
are shown in Figure 1-9 and described in Table 1-9.

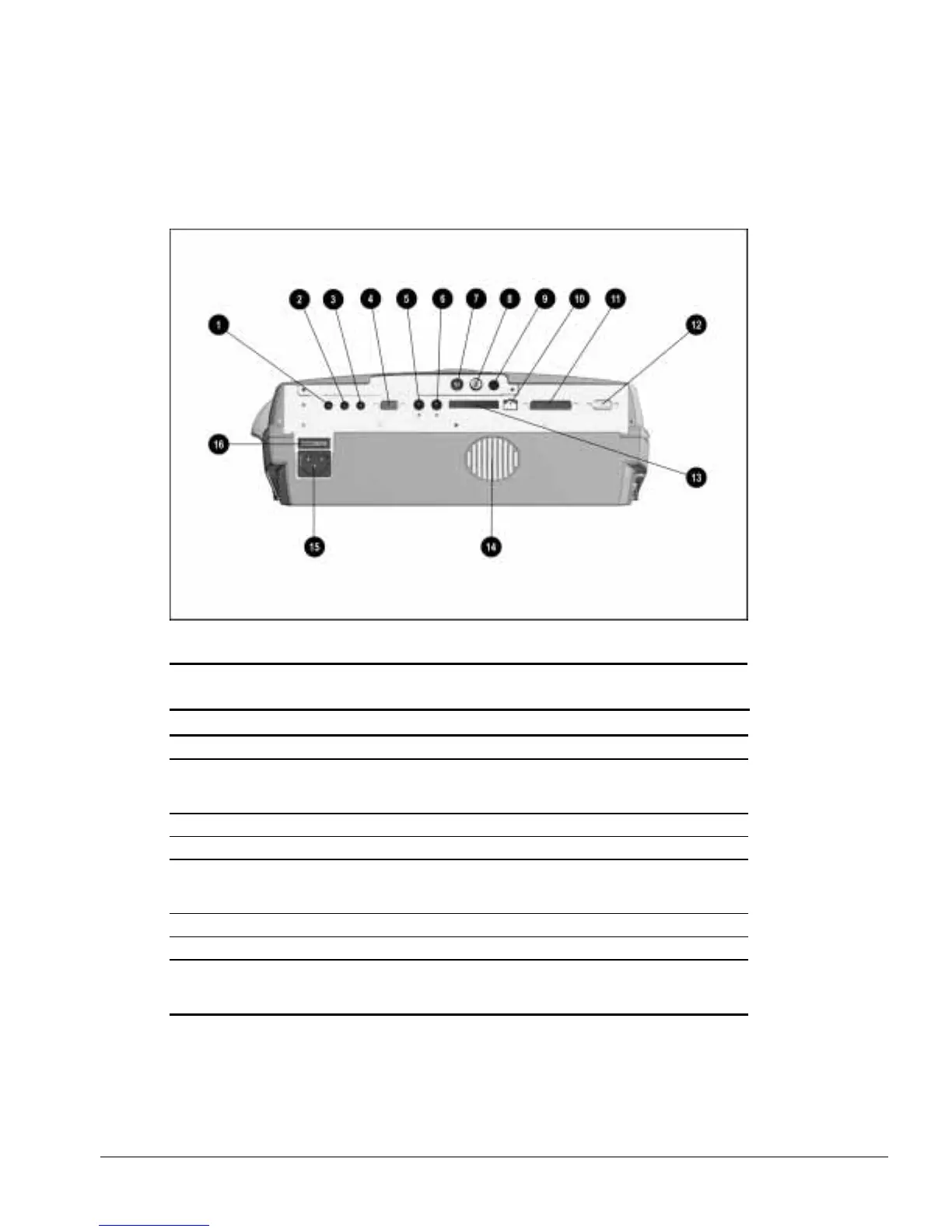

Figure 1-9.
Armada MiniStation Components: Rear Panel
Table 1-9
Armada MiniStation Components: Rear Panel
Item Description Item Description
1 Stereo line-in jack 9 Infrared transceiver connector
2 Stereo line-out jack 10 RJ-11 jack
(North America, Japan, Latin America, and
Hong Kong modem models)
3 Microphone jack 11 Parallel connector
4 Serial connector 12 External monitor connector
5 External mouse connector 13 25-pin connector
(Europe, Middle East, Africa, and Asia
Pacific modem models)
6 External keyboard connector 14 Fan
7 RJ-45 jack (all models) 15 Power connector
8 BNC connector
(Europe, Middle East, Africa, and Asia
Pacific models)
16 Voltage selector switch
